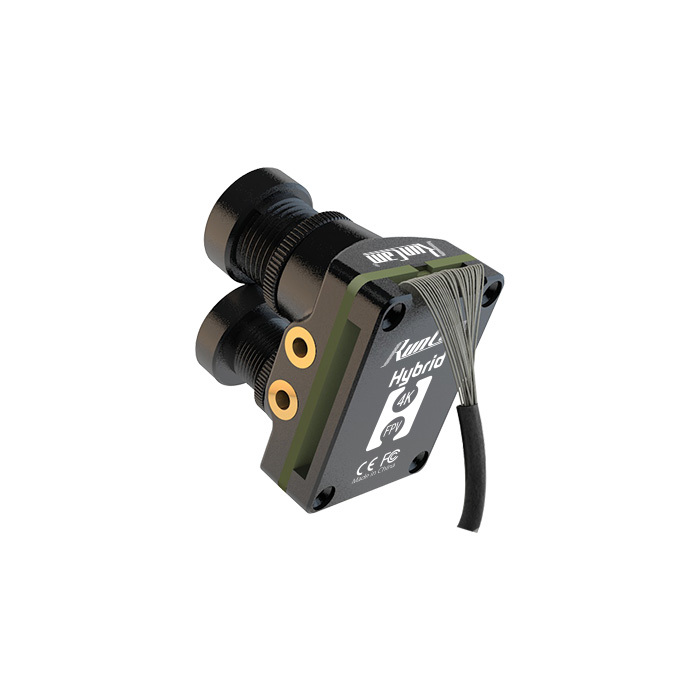

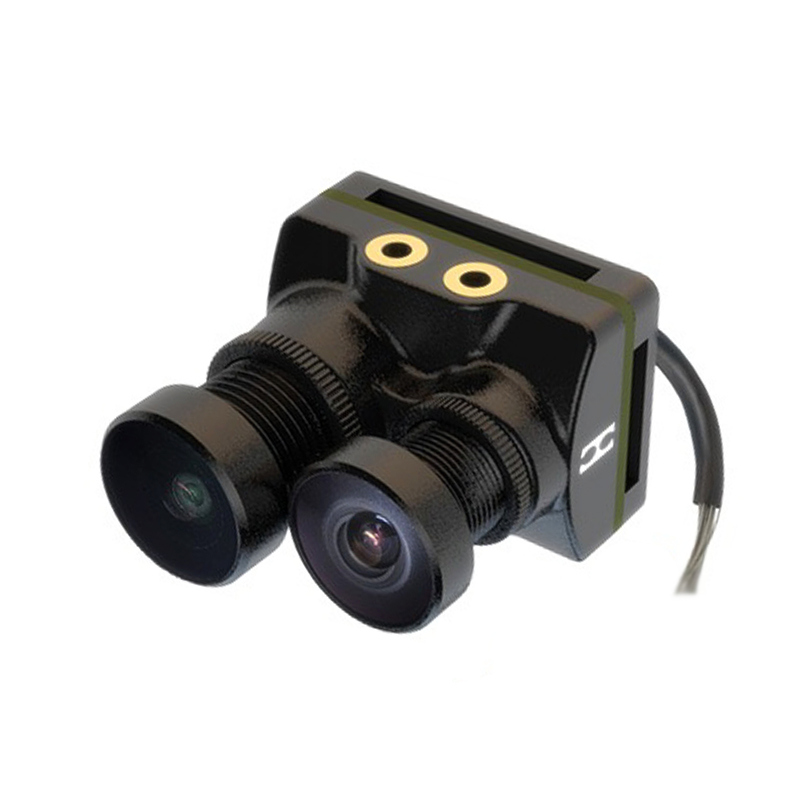

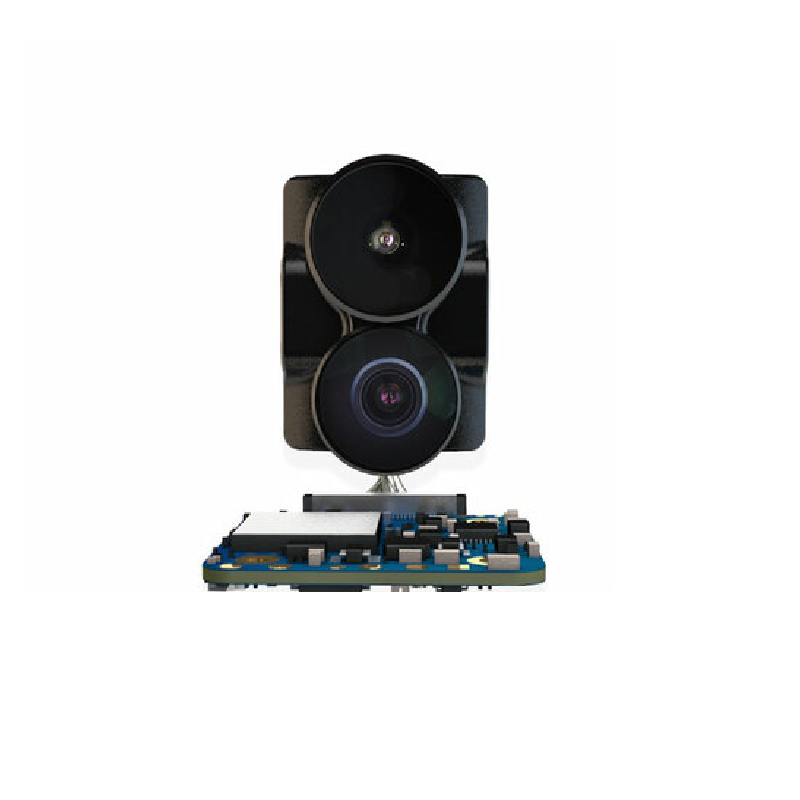

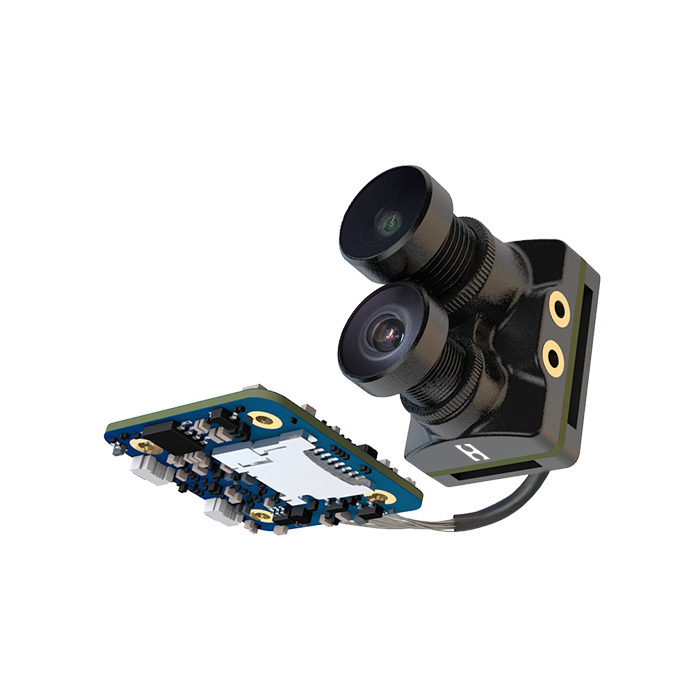

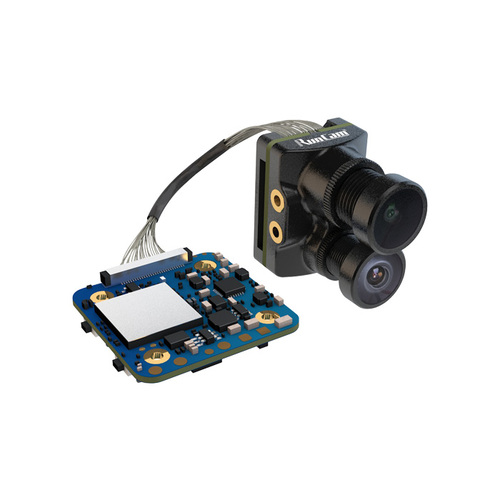

RunCam Hybrid Dual Split FPV Camera
RunCam Hybrid Dual Split FPV Camera - Image 2
RunCam Hybrid Dual Split FPV Camera - Image 3
RunCam Hybrid Dual Split FPV Camera - Image 4
RunCam Hybrid Dual Split FPV Camera - Image 5
RunCam Hybrid Dual Split FPV Camera - Image 6
SKU: DRFC-2299
📋 GST Invoice Available

RunCam Hybrid Dual Split FPV Camera

₹14,999.00 (Inclusive of all taxes)
Out of Stock

The RunCam Hybrid Dual Split FPV Camera integrates a Sony 8MP 4K HD recording sensor with a low-latency Sony 1.3MP analog FPV sensor on a compact 20x20mm board, providing simultaneous HD recording and real-time FPV feed for racing and freestyle drones.

Features

  • Dual-sensor design: Sony 8MP 4K HD sensor and Sony 1.3MP analog FPV sensor.
  • Simultaneous 4K@30fps HD recording and ultra-low-latency (6ms) FPV video output.
  • Wide 145° HD recording field of view (150° FPV FOV in 4:3).
  • Compact 20x20mm mounting footprint for easy integration into most drone frames.
  • Supports remote control recording and firmware updates via the SpeedyBee app.

Out of stock

Description

The RunCam Hybrid Dual Split FPV Camera is an integrated solution designed to eliminate the need for a separate action camera on FPV drones. It combines a high-resolution Sony 8MP sensor capable of recording up to 4K@30fps video with a dedicated Sony 1.3MP analog sensor delivering a super-low-latency FPV feed with just 6ms of delay. This dual-system approach saves significant weight and space compared to mounting an external HD camera.

Operating on a wide 5-12V DC input, the camera is compatible with most modern FPV drone power systems. Its compact 20x20mm board design allows for straightforward installation on a wide range of racing and freestyle frames. The camera supports both PAL and NTSC signal systems and features a wide 145° lens for immersive HD recording, making it a versatile choice for pilots seeking high-quality footage without sacrificing real-time flight performance.

Key Features

  • Dual-Sensor Architecture: Houses separate Sony 8MP HD and 1.3MP analog sensors for dedicated recording and FPV tasks.
  • Simultaneous Output: Provides a live analog FPV feed (720*480/576) while independently recording HD video up to 4K resolution.
  • Ultra-Low Latency FPV: The dedicated analog sensor ensures a critical 6ms video latency for responsive piloting.
  • Compact 20x20mm Form Factor: Saves valuable space and simplifies mounting compared to bulkier split-camera designs.
  • Wide Voltage Input (5-12V): Offers flexible compatibility with 1-3S LiPo and regulated 5V/9V/12V BEC outputs.
  • Remote Control & Firmware: Supports remote start/stop of recording and firmware upgrades via the SpeedyBee mobile application.
  • High Frame Rate Recording: Capable of recording 1080P video at 120fps for smooth slow-motion playback.

Applications

  • 5-inch FPV Racing Drones requiring onboard HD recording without added weight.
  • Freestyle and Cinewhoop Builds where a compact, integrated HD/FPV solution is critical.
  • Micro and Mini Long-Range Drones where saving every gram and minimizing frontal area is essential.
  • DIY FPV Drone Projects seeking a streamlined alternative to mounting a separate action camera.

Technical Specifications

Model NameRunCam Hybrid
Image Sensor (HD)Sony 8MP
Image Sensor (FPV)Sony 1.3MP Analog
Max HD Resolution4K@30fps, 2.7K@60fps, 1080P@120fps
FPV Signal SystemNTSC (720*480) / PAL (720*576), Switchable
FPV Latency~6ms
Operating Voltage5 - 12 VDC
Max Operating Current480 mA
HD Recording FOV145°
FPV FOV (4:3)150°

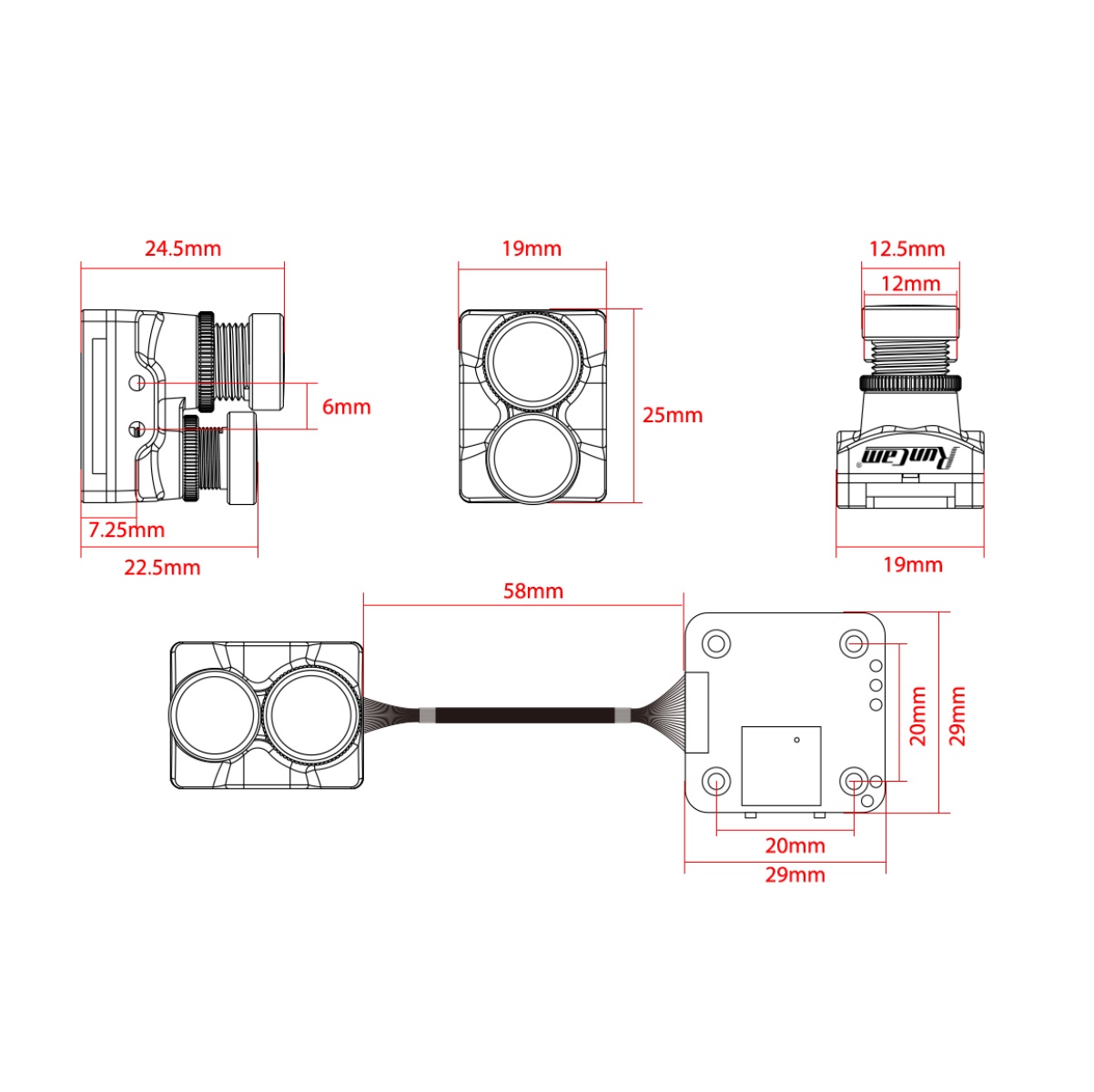

Mounting Pattern20mm x 20mm
Dimensions (LxW)25 mm x 25 mm
Weight18 g
Housing MaterialABS Plastic

Frequently Asked Questions

What are the main advantages of the RunCam Hybrid over a standard FPV camera?

The RunCam Hybrid's primary advantage is its dual-sensor design, which allows simultaneous 4K HD recording and a dedicated, ultra-low-latency (6ms) analog FPV feed. This eliminates the need to carry a separate heavy action camera like a GoPro, saving significant weight and reducing frontal drag on your drone, which directly improves flight performance and battery life.

What voltage does the RunCam Hybrid camera require, and how do I power it?

The RunCam Hybrid operates on a wide input voltage range of 5 to 12 volts DC. This makes it compatible with most FPV drone setups. You can power it directly from a regulated 5V or 9V pad on your flight controller's BEC, or, if your FC supports it, directly from a 2S or 3S LiPo battery input. Always ensure your power source can supply up to 480mA under load.

How do I control the HD recording and update the firmware?

You can remotely start and stop the HD recording via a dedicated control pad on your flight controller, which is mapped to a switch in Betaflight. For firmware updates and advanced parameter adjustments (like changing video format between PAL/NTSC), you use the SpeedyBee mobile application. The camera also features a QR code system for quick configuration.

Is the RunCam Hybrid compatible with all FPV goggles and video receivers?

Yes, the analog FPV video output from the RunCam Hybrid is fully compatible with all standard analog FPV goggles and video receivers (VRXs) that support NTSC or PAL signals. The HD recording function is completely independent and does not affect the analog feed. Ensure your goggles/receiver are set to the correct video format (PAL or NTSC) that matches the camera's setting.

Package Includes

  • 1 x RunCam Hybrid Dual Split FPV Camera
  • 1 x Plastic Camera Cover
  • 1 x 3-pin 1.25mm JST Silicone Cable (Male)
  • 1 x 3-pin 1.25mm JST Silicone Cable (Female)
  • 1 x Set of Mounting Screws
  • 1 x User Manual

Additional Information

Weight 0.018 kg
Dimensions 2.5 × 2.5 cm

Related Products

Out of Stock

iFlight BLITZ Mini F7 Flight Controller V1.2

3,549.00
Learn More
Out of Stock

iFlight BLITZ Mini F745 Flight Controller

6,129.00
Learn More
Out of Stock

Flywoo GOKU 40A 2-6S 8bit 4-in-1 BLHeli_S ESC

4,651.00
Learn More
Out of Stock

Flywoo GOKU F7 MINI V2 20X20 Flight Controller

4,069.00
Learn More
Out of Stock

SIYI ZT6 Dual Sensor 4K 8MP 6X Zoom Gimbal Camera

323,179.00
Learn More
Out of Stock

SIYI ZT30 Four-Sensor 30X Optical Zoom 4K Gimbal Camera

769,859.00
Learn More
Out of Stock

AxisFlying Argus Mini F7 Flight Controller

6,619.00
Learn More
Out of Stock

AxisFlying FPV Thermal Camera 256x192 VOX Detector

38,489.00
Learn More
Out of Stock

AxisFlying Thermal Imaging Camera for FPV Drones 384x288

85,563.00
Learn More
Out of Stock

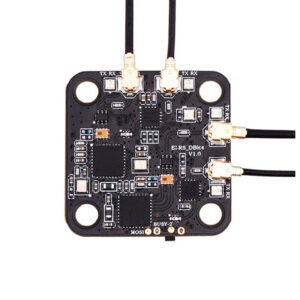

RadioMaster DBR4 Dual Band Xross Gemini ExpressLRS Receiver
