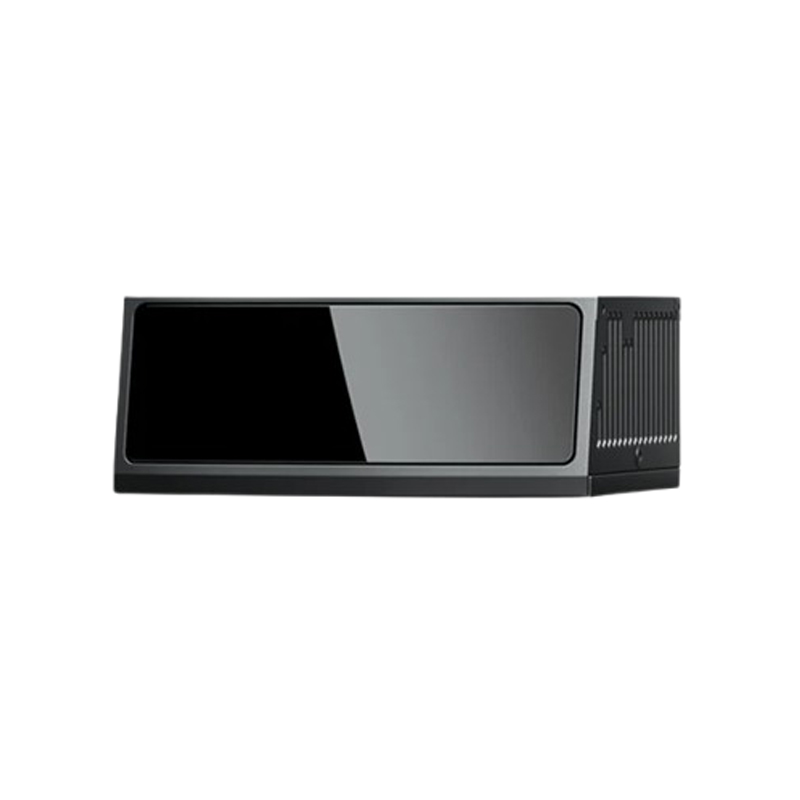

RoboSense M1 Plus Solid-State Automotive-Grade LiDAR Sensor, 120°×25° FOV, 200m Range, UDP Ethernet Output, IP67/IP6K9K
The RoboSense M1 Plus is an automotive-grade MEMS solid-state LiDAR sensor delivering a 200m detection range and high-density point clouds via UDP over Ethernet. Designed for ASIL-B functional safety and AEC-Q100 qualification, it integrates seamlessly into ADAS and autonomous vehicle platforms requiring robust, long-range 3D perception.
Features
- 200m maximum detection range (180m @ 10% reflectivity) with ±5cm accuracy.
- High-density point cloud output up to 1.575 million points per second with dual-return capability.
- Smart GAZE technology dynamically boosts vertical resolution to 0.1° within key regions of interest (ROI).
- Automotive-grade reliability with AEC-Q100 certified scanning chips and ISO 26262 ASIL-B functional safety.
- Rugged IP67 & IP6K9K protection, validated through extensive environmental and durability testing.
Out of stock
The RoboSense M1 Plus employs a MEMS solid-state scanning architecture with a 905nm laser wavelength to generate precise 3D point clouds. Its intelligent GAZE function allows for dynamic, real-time adjustment of scanning patterns, concentrating higher vertical resolution (as fine as 0.1°) into critical areas for enhanced early obstacle recognition. The sensor outputs data as UDP packets over a standard Ethernet interface, facilitating integration with automotive computing platforms.
Engineered for harsh automotive environments, the M1 Plus has undergone rigorous validation, including high-temperature, humidity, shock, and vibration testing, supporting operation from -40°C to +105°C. Its Class 1 eye-safe design incorporates multiple real-time monitoring and fault-detection mechanisms, ensuring safe and reliable operation over an extended service life exceeding 80,000 hours.
Additional Information
| Weight | 0.69 kg |
|---|---|
| Dimensions | 11 × 11.1 cm |
