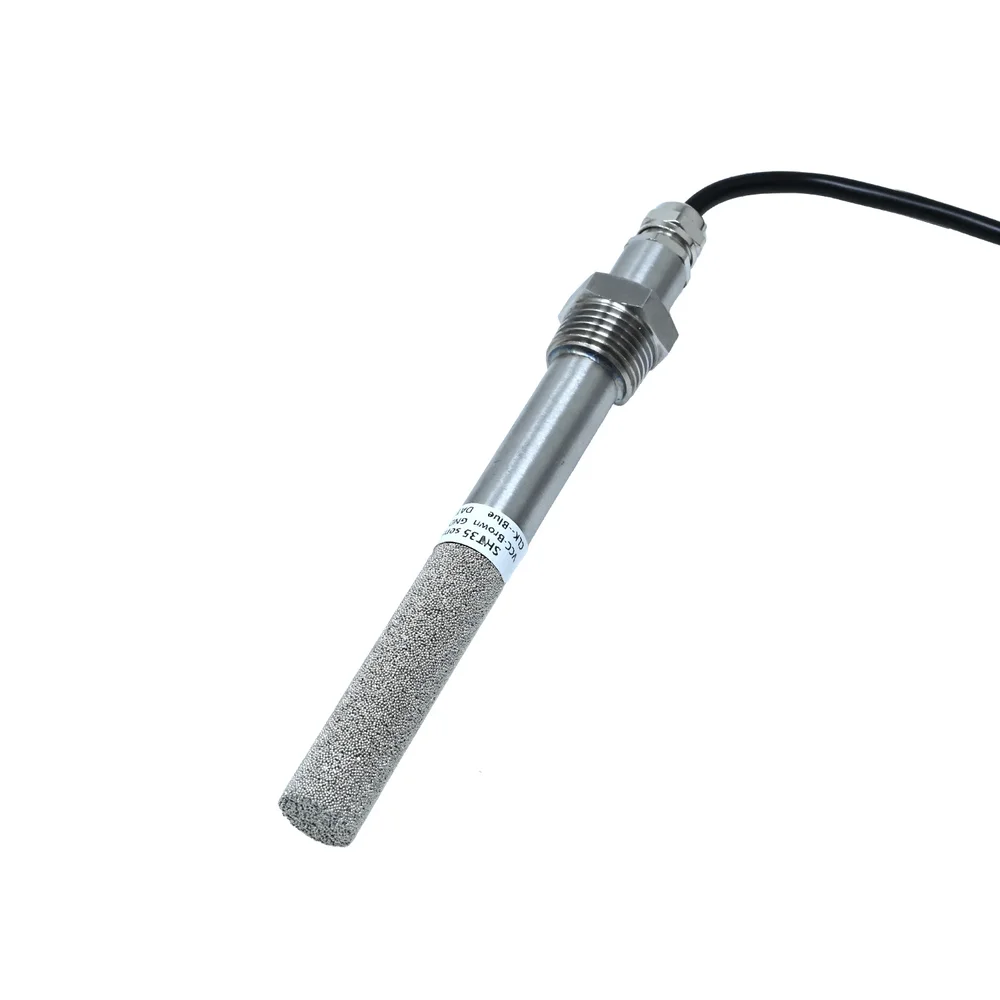

Renke SHT-155-LW Quarter Pipe Thread Temperature & Humidity Probe for SHT35 - I2C Interface

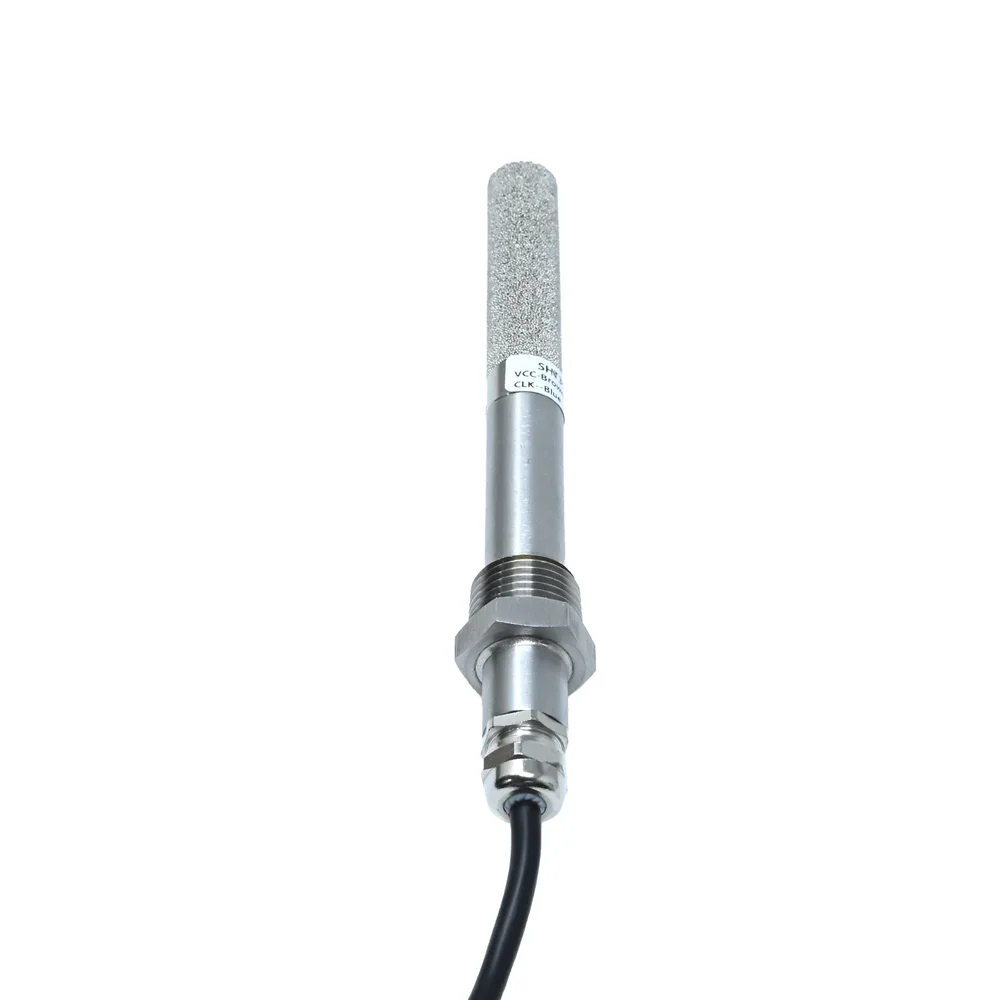

Renke SHT-155-LW Quarter Pipe Thread Temperature & Humidity Probe for SHT35 - I2C Interface - Image 2

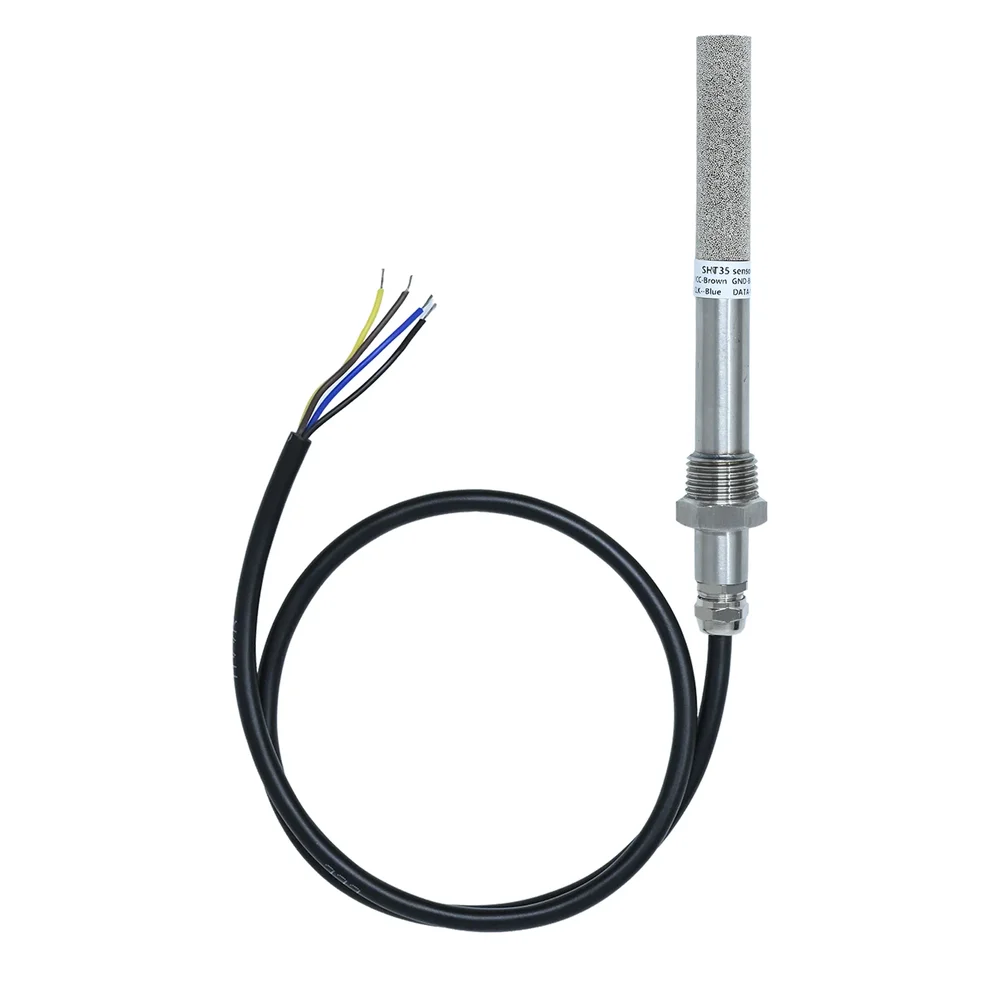

Renke SHT-155-LW Quarter Pipe Thread Temperature & Humidity Probe for SHT35 - I2C Interface - Image 3
SKU: SENS-3812
📋 GST Invoice Available

Renke SHT-155-LW Quarter Pipe Thread Temperature & Humidity Probe for SHT35 - I2C Interface

₹6,619.00 (Inclusive of all taxes)
Out of Stock

The Renke SHT-155-LW is a threaded industrial temperature and humidity probe integrating the Sensirion SHT35 digital sensor. Featuring a quarter-pipe thread for secure mounting in ducts and pipelines, it provides high-accuracy environmental data via I2C communication, compatible with Arduino, Raspberry Pi, and industrial PLC systems.

Features

  • Integrates Sensirion SHT35 digital sensor for temperature and humidity
  • Quarter-pipe thread mounting for secure industrial installation
  • High accuracy: ±0.1°C temperature, ±1.5% RH humidity
  • Wide operating range from -40°C to +125°C
  • I2C digital interface with up to 1 MHz communication speed

Out of stock

Description

The Renke SHT-155-LW probe is engineered for robust industrial environmental monitoring. It houses a factory-calibrated Sensirion SHT35 MEMS sensor, delivering precise digital measurements with excellent long-term stability. The quarter-pipe thread design ensures a secure, leak-resistant seal for installation in pipes, ducts, and equipment enclosures.

This probe provides a conditioned digital signal via the I2C bus, simplifying integration into data acquisition systems, HVAC controllers, and automation platforms. Its durable construction and wide operating temperature range make it suitable for demanding process monitoring and smart building applications.

Key Features

  • Industrial-grade threaded probe with 155mm length for versatile mounting
  • High-precision SHT35 sensor with factory calibration for reliable data
  • Wide supply voltage range from 2.4V to 5.5V DC for flexible powering
  • Excellent measurement resolution: 0.015°C for temperature, 0.01% RH for humidity
  • Fast response time ideal for real-time monitoring and control loops
  • Durable construction designed for long-term reliability in harsh environments
  • Digital I2C output eliminates analog signal noise and simplifies wiring

Applications

  • HVAC system duct temperature and humidity monitoring
  • Industrial process pipeline environmental condition sensing
  • Environmental chamber and test equipment control
  • Smart building automation and indoor air quality systems
  • Agricultural and greenhouse climate monitoring

Technical Specifications

Probe Length155 mm
Sensor ElementSensirion SHT35
Supply Voltage2.4 – 5.5 V DC
InterfaceI2C
Measured ParametersTemperature & Humidity
Temperature Accuracy±0.1°C
Humidity Accuracy±1.5% RH
Operating Temperature Range-40°C to +125°C
Temperature Resolution0.015°C
Humidity Resolution0.01% RH
Communication SpeedUp to 1 MHz
Mounting TypeQuarter Pipe Thread

Frequently Asked Questions

What is the supply voltage range for the Renke SHT-155-LW probe?

The probe operates from 2.4V to 5.5V DC, making it compatible with both 3.3V and 5V logic systems like Arduino, Raspberry Pi, and industrial PLCs. Ensure your power source is stable within this range for optimal sensor performance.

How do I communicate with this sensor and what is the pinout?

The sensor uses a standard I2C interface. You will need to connect the VCC, GND, SDA, and SCL pins to your microcontroller. The I2C address for the SHT35 is typically 0x44 or 0x45, selectable via the ADDR pin. Communication speeds can be configured up to 1 MHz.

What is the purpose of the quarter-pipe thread and how is it installed?

The quarter-pipe thread is designed for secure, sealed mounting directly into a tapped hole on a pipe, duct, or equipment enclosure wall. This provides mechanical stability and helps position the sensor tip optimally within the medium being monitored, ensuring accurate readings.

Does this probe require calibration?

No, the integrated Sensirion SHT35 sensor is factory calibrated, providing highly accurate measurements out-of-the-box. The digital output and calibration data are stored on the chip, ensuring reliable performance without the need for user calibration.

What is the maximum operating temperature for this probe?

The Renke SHT-155-LW probe is rated for continuous operation from -40°C to +125°C. This wide range makes it suitable for harsh industrial environments, cold storage monitoring, and high-temperature process applications.

Package Includes

  • 1 x Renke SHT-155-LW Quarter Pipe Thread Temperature & Humidity Probe

Additional Information

Weight 0.178 kg
Dimensions 15 × 14 × 4 cm
