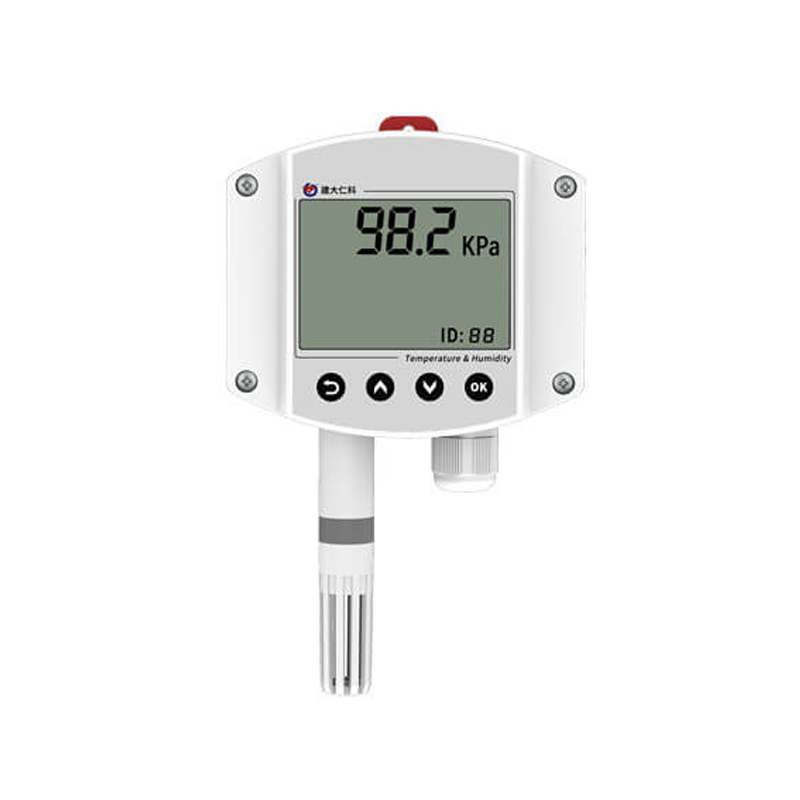

Renke RS-QY-N01-2D-LCD-EX Industrial Wall-Mounted Atmospheric Pressure Sensor with LCD Display, RS485 Output, 0-120 kPa

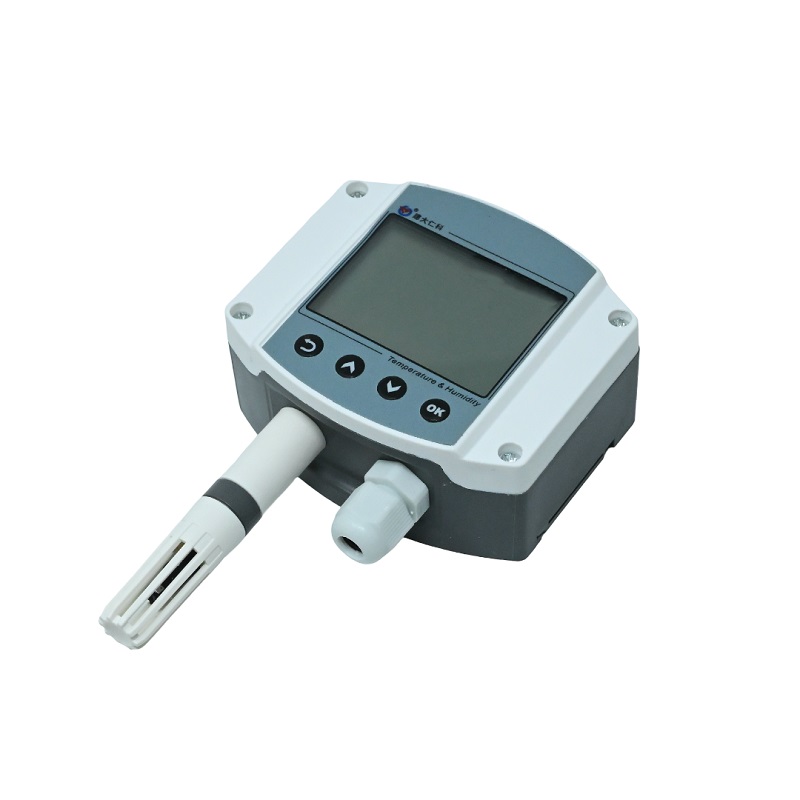

Renke RS-QY-N01-2D-LCD-EX Industrial Wall-Mounted Atmospheric Pressure Sensor with LCD Display, RS485 Output, 0-120 kPa - Image 2
Renke RS-QY-N01-2D-LCD-EX Industrial Wall-Mounted Atmospheric Pressure Sensor with LCD Display, RS485 Output, 0-120 kPa - Image 3

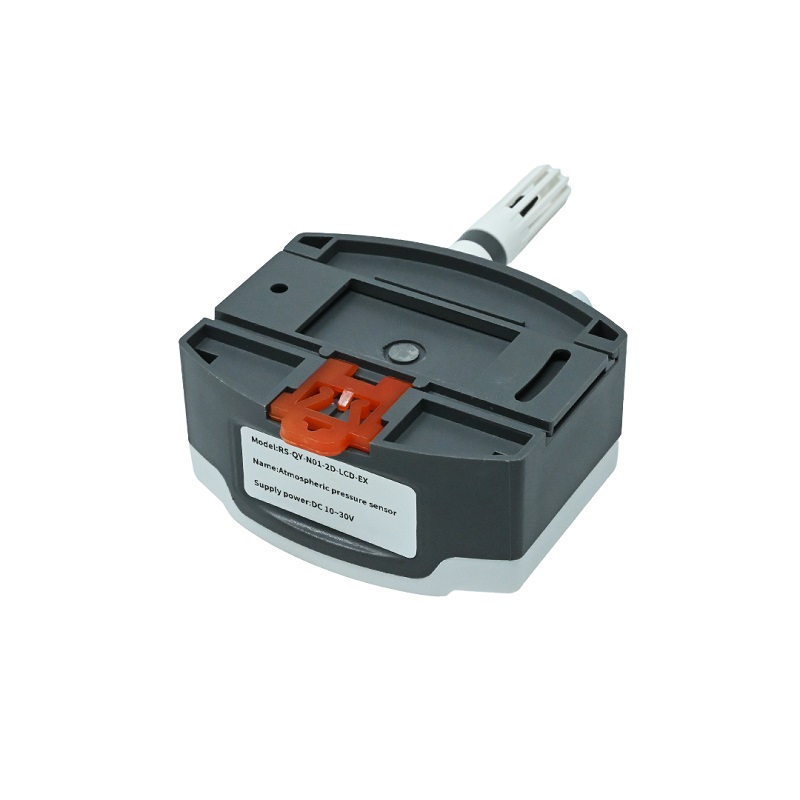

Renke RS-QY-N01-2D-LCD-EX Industrial Wall-Mounted Atmospheric Pressure Sensor with LCD Display, RS485 Output, 0-120 kPa - Image 4
SKU: SENS-2001
📋 GST Invoice Available

Renke RS-QY-N01-2D-LCD-EX Industrial Wall-Mounted Atmospheric Pressure Sensor with LCD Display, RS485 Output, 0-120 kPa

₹4,779.00 (Inclusive of all taxes)
Out of Stock

The Renke RS-QY-N01-2D-LCD-EX is an industrial-grade atmospheric pressure sensor featuring a bright LCD display and RS485 Modbus output for seamless integration into weather stations, environmental monitoring systems, and industrial PLC networks. It provides precise measurement from 0 to 120 kPa with built-in temperature compensation for stable, reliable data.

Features

  • High-precision absolute pressure sensing from 0 to 120 kPa with ±0.15 kPa accuracy.
  • Integrated RS485 Modbus communication for robust, long-distance data transmission.
  • On-board LCD display provides real-time, local pressure and optional environmental readings.
  • Wide 10-30V DC supply voltage range compatible with industrial power systems.
  • Wall or DIN-rail mountable housing designed for flexible, durable installation.

Out of stock

Description

The RS-QY-N01-2D-LCD-EX utilizes an imported high-stability piezoresistive sensing element to deliver accurate absolute pressure measurements. Its integrated signal conditioning circuit features automatic temperature compensation, minimizing drift and ensuring repeatable performance across its full operating range. The sensor outputs data via a standard RS485 interface, supporting Modbus RTU protocol for straightforward integration with SCADA, PLCs, and cloud monitoring platforms.

Housed in a robust, wall-mount enclosure, this sensor is built for continuous operation in demanding environments. The bright LCD screen provides immediate local readout of pressure, and optional temperature and humidity values, making it suitable for both automated systems and manual monitoring points. Its wide supply voltage acceptance makes it adaptable to various industrial and commercial power setups.

Key Features

  • Industrial-grade absolute pressure sensor with high-precision MEMS sensing core.
  • Multi-interface support configurable for RS485, 4-20mA, 0-5V, or 0-10V analog outputs.
  • Built-in temperature compensation algorithm ensures long-term measurement stability.
  • Clear LCD display for real-time visualization of pressure and optional T/RH data.
  • Durable, IP-rated enclosure designed for wall or standard DIN-rail mounting.
  • Low power consumption, typically ≤0.5W for digital RS485 communication.
  • Wide operating humidity range of 0-95% RH (non-condensing) for versatile deployment.
  • High-value build optimized for reliable performance in continuous monitoring applications.

Applications

  • Precision atmospheric pressure monitoring in professional weather stations and networks.
  • Environmental parameter logging in agricultural greenhouses and controlled growth chambers.
  • Laboratory and research facility atmospheric condition monitoring and data acquisition.
  • Altitude calculation and barometric pressure tracking for aviation and meteorological testing.
  • Climate control and preservation monitoring in archives, museums, and storage facilities.

Technical Specifications

Manufacturer Part NumberRS-QY-N01-2D-LCD-EX
Pressure TypeAbsolute
Pressure Range0 to 120 kPa
Output InterfaceRS485 (Configurable for 4-20mA, 0-5V, 0-10V)
Supply Voltage10 - 30 V DC
Accuracy (@25°C, 101 kPa)±0.15 kPa
Resolution0.01 kPa
Average Power Consumption≤ 0.5 W (RS485), 1.2 W (Analog)
DisplayLCD Screen
Operating Humidity Range0 - 95% RH (non-condensing)
MountingWall or DIN-Rail
Width9 cm
Length14.3 cm
Weight0.127 kg

Frequently Asked Questions

What communication protocols does this sensor support?

The primary output is RS485, supporting the Modbus RTU protocol for direct integration with PLCs, SCADA systems, and data loggers. The unit is also configurable to provide standard industrial analog outputs, including 4-20mA current loop and 0-5V or 0-10V voltage signals, offering flexibility for various control system architectures.

What is the power supply requirement for the RS485 version?

The sensor operates from a wide-range 10-30V DC power supply, making it compatible with common 12V or 24V industrial power systems. When configured for RS485 communication, the average power consumption is very low, typically ≤0.5 Watts, ensuring energy-efficient operation in continuous monitoring applications.

Can this sensor measure temperature and humidity as well?

Yes, the RS-QY-N01-2D-LCD-EX model includes optional integrated sensors for temperature and relative humidity. These multi-parameter readings are displayed on the onboard LCD screen and can be transmitted via the RS485 interface alongside the primary pressure data, providing a comprehensive environmental monitoring solution in a single unit.

How do I mount and install this atmospheric pressure sensor?

The sensor housing is designed for versatile installation. It features keyhole slots on the back for secure wall mounting and is also compatible with standard DIN-rail mounts. For accurate readings, install the unit in a location with representative ambient air flow, protected from direct sunlight, rain, and mechanical vibration.

Package Includes

  • 1 x Renke RS-QY-N01-2D-LCD-EX Industrial Atmospheric Pressure Sensor

Additional Information

Weight 0.127 kg
Dimensions 14.3 × 9 cm
