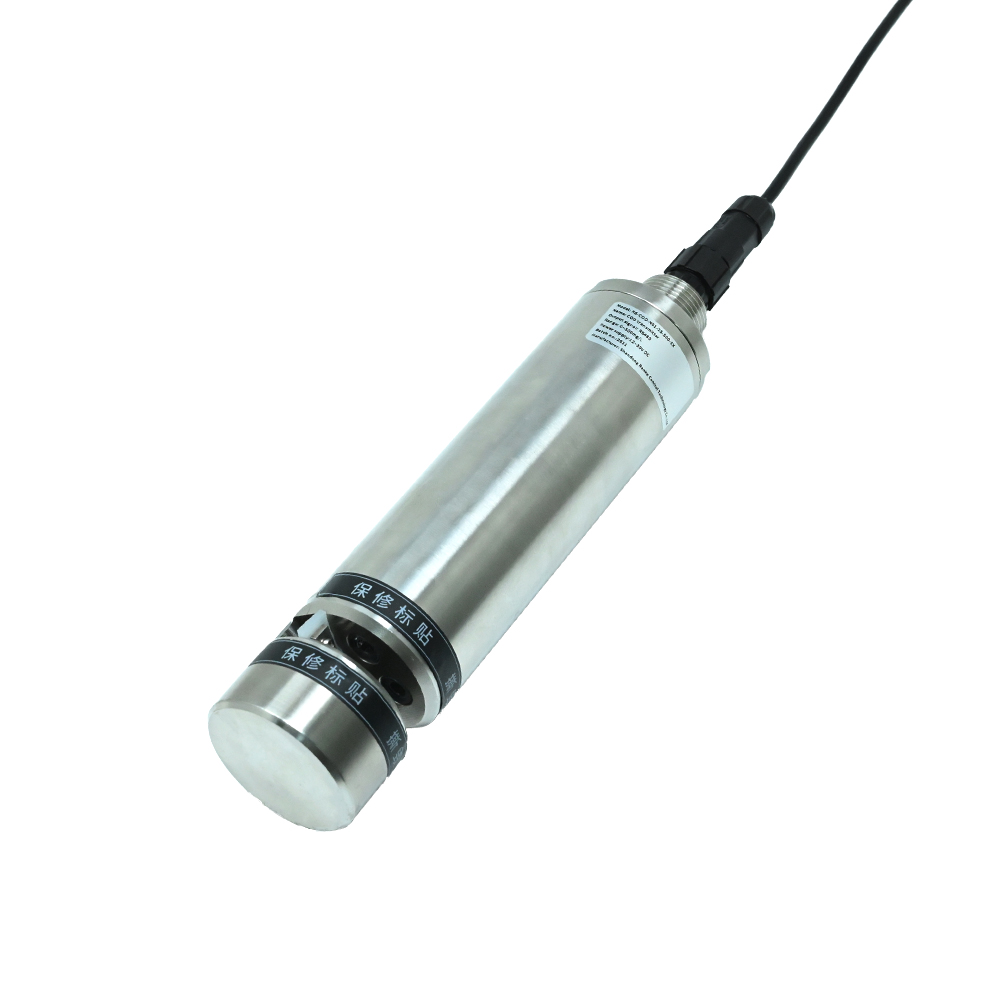

Renke RS-COD-N01-2-500-EX COD Sensor, 0-500 mg/L, RS485 Modbus, IP68 Waterproof

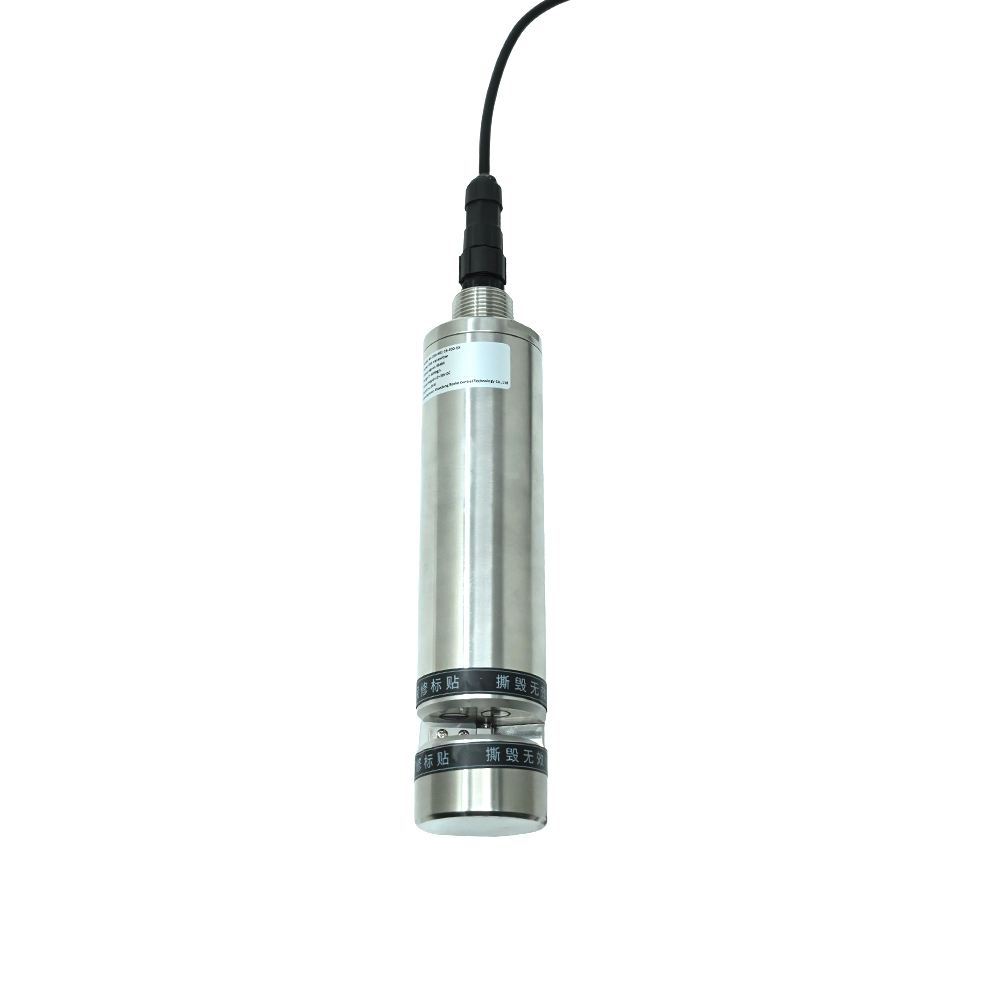

Renke RS-COD-N01-2-500-EX COD Sensor, 0-500 mg/L, RS485 Modbus, IP68 Waterproof - Image 2

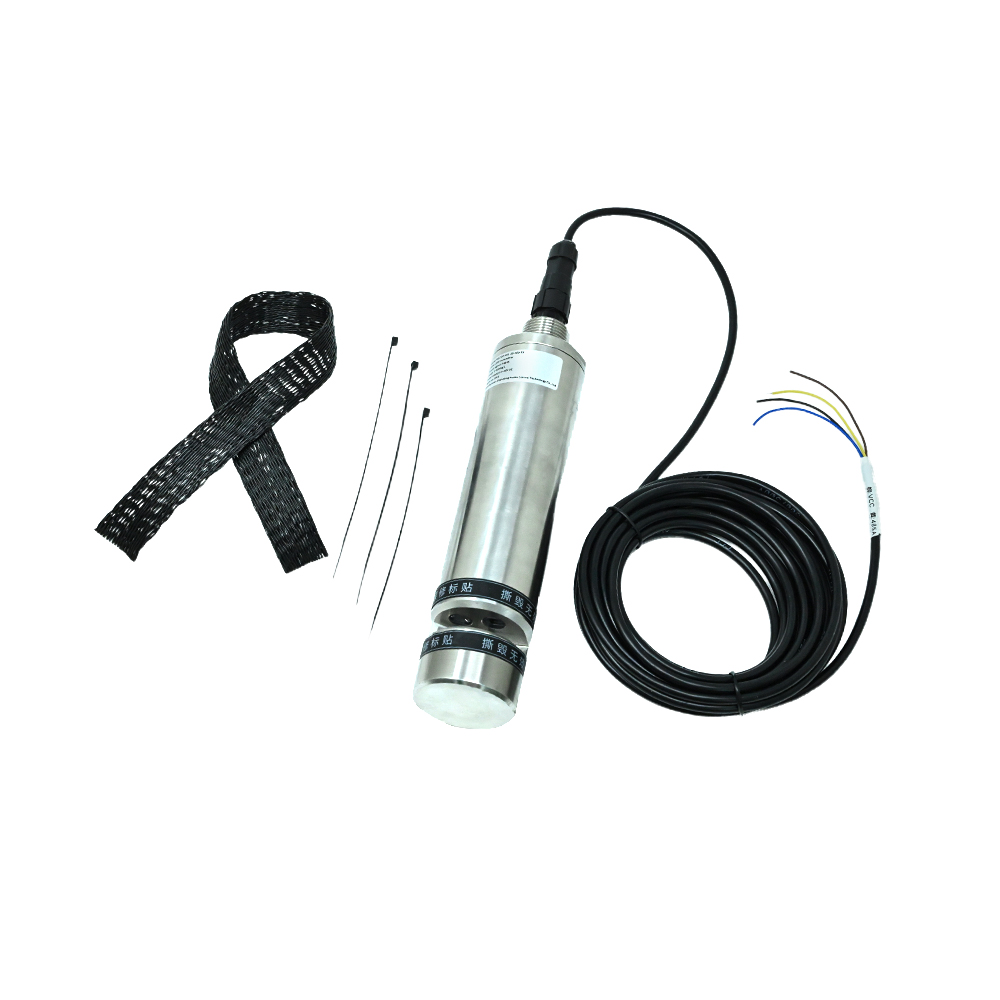

Renke RS-COD-N01-2-500-EX COD Sensor, 0-500 mg/L, RS485 Modbus, IP68 Waterproof - Image 3
SKU: SENS-0765
📋 GST Invoice Available

Renke RS-COD-N01-2-500-EX COD Sensor, 0-500 mg/L, RS485 Modbus, IP68 Waterproof

₹58,479.00 (Inclusive of all taxes)
Out of Stock

The Renke RS-COD-N01-2-500-EX is a reagent-free COD (Chemical Oxygen Demand) sensor utilizing dual-wavelength UV absorption for continuous water quality monitoring. It features RS485 Modbus-RTU output for direct integration with PLCs, SCADA systems, and IoT platforms, and is housed in an IP68-rated, corrosion-resistant body for demanding environmental and industrial applications.

Features

  • Reagent-free COD measurement via dual-wavelength UV absorption method (0-500 mg/L KHP equivalent).
  • Integrated RS485 Modbus-RTU communication protocol for industrial system integration.
  • IP68 waterproof rating and corrosion-resistant plastic/stainless steel construction.
  • Built-in automatic cleaning, temperature compensation, and turbidity correction (0-200 NTU).
  • Wide 12-30V DC power input and fast response time (≤20 seconds).

Out of stock

Description

The RS-COD-N01-2-500-EX sensor provides a modern, maintenance-reduced solution for Chemical Oxygen Demand (COD) monitoring by employing a dual-wavelength ultraviolet (UV) absorption technique. This method eliminates the need for hazardous chemical reagents, offering a safer and more environmentally friendly operation suitable for long-term, unattended deployment. The sensor incorporates real-time temperature compensation and turbidity correction algorithms to ensure measurement accuracy is maintained despite changes in water clarity and ambient conditions.

Engineered for resilience, the sensor’s housing combines corrosion-resistant engineering plastics with stainless steel components, achieving a full IP68 waterproof rating for submersion and outdoor use. Its integrated automatic cleaning system proactively mitigates biofouling and scaling, which are common challenges in wastewater and natural water bodies, thereby guaranteeing long-term stability and reducing operational downtime. The 12-30V DC wide-range input and Modbus-RTU protocol make it compatible with a vast array of industrial control and data acquisition systems.

Key Features

  • Advanced Sensing Principle: Utilizes dual-wavelength UV absorption for direct, reagent-free COD quantification, ensuring no chemical waste.
  • High-Integrity Signal Output: Standard RS485 interface with Modbus-RTU protocol enables reliable, noise-immune data transmission over long distances.
  • Robust Environmental Sealing: IP68-rated enclosure protects internal electronics from full submersion and harsh outdoor conditions.
  • Integrated System Health: Features automatic mechanical cleaning and comprehensive temperature/turbidity compensation for sustained accuracy.
  • Wide Operational Compatibility: Accepts 12-30V DC, making it suitable for both panel-powered and solar/battery-powered remote stations.
  • Optimized Mechanical Design: Constructed with corrosion-resistant materials and withstands flow rates up to 3 m/s.

Applications

  • Continuous effluent monitoring and process control in municipal and industrial wastewater treatment plants.
  • Water quality surveillance in aquaculture farms for managing organic load and ensuring healthy stock environments.
  • Environmental monitoring of rivers, lakes, and coastal waters for regulatory compliance and ecological studies.
  • Integration into smart water IoT networks for remote, real-time water quality data logging and alerting.
  • Industrial process water quality control in food & beverage, pharmaceutical, and chemical manufacturing.

Technical Specifications

Manufacturer Part NumberRS-COD-N01-2-500-EX
Measurement Range (COD)0–500 mg/L (KHP equivalent)
Measurement Range (Turbidity)0–200 NTU
Output SignalRS485 (Modbus-RTU protocol)
Supply VoltageDC 12–30 V
ResolutionCOD: 0.1 mg/L, Turbidity: 0.1 NTU
Response Time≤20 seconds
Operating Temperature0 to 40 °C
Ingress ProtectionIP68
Housing MaterialCorrosion-resistant plastic & stainless steel
Max. Pressure<0.1 MPa
Max. Flow Rate<3 m/s
Sensor Length230 mm
Sensor Diameter50.49 mm

Frequently Asked Questions

What is the measurement principle of this COD sensor, and does it require chemicals?

This sensor uses a reagent-free, dual-wavelength ultraviolet (UV) absorption method to determine Chemical Oxygen Demand (COD). It measures the UV absorbance of organic compounds in water at specific wavelengths, eliminating the need for hazardous chemical reagents, reducing operational costs, and minimizing waste disposal.

How do I communicate with and power this sensor?

The sensor is powered by a wide-range 12-30V DC supply. Data is transmitted via a standard RS485 interface using the Modbus-RTU protocol, allowing for direct connection to PLCs, SCADA systems, data loggers, or IoT gateways. The included cable facilitates wiring for both power and communication.

Is this sensor suitable for submersion and outdoor use?

Yes. The sensor features an IP68 waterproof rating, meaning it is fully protected against dust ingress and continuous submersion in water under defined conditions. Its construction of corrosion-resistant plastics and stainless steel makes it durable for long-term deployment in outdoor, wastewater, and marine environments.

Does the sensor correct for water turbidity, and how is maintenance handled?

Yes, the sensor includes an integrated turbidity measurement channel (0-200 NTU) and applies a correction algorithm to the COD reading, ensuring accuracy in cloudy or sediment-laden water. It also has a built-in automatic cleaning system to reduce biofouling, significantly lowering maintenance requirements compared to traditional sensors.

Package Includes

  • 1 x Renke RS-COD-N01-2-500-EX COD Sensor
  • 1 x Nylon Sleeve
  • 1 x Connecting Cable

Additional Information

Weight 0.9 kg
Dimensions 25 × 21 × 6 cm

Related Products

Out of Stock

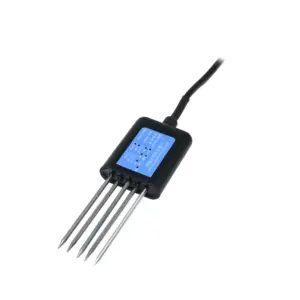

SN-3002-TR-THNPKPH-01 Five-Pin Soil Multi-Parameter Sensor (Temperature, Moisture, NPK, pH) - RS485 Modbus

4,699.00
Learn More
Out of Stock

FirstRate ST100-ZD102 Turbidity Sensor, 0-4000 NTU, 4-20mA & RS485 Modbus, 316 Stainless Steel, IP68, 5m Cable

86,119.00
Learn More
Out of Stock

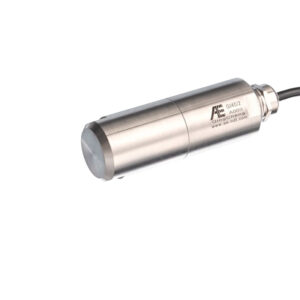

QAWRUMS GI40/2 Piezoelectric AE Sensor, 40 kHz, >75dB, IP68, SUS-304 Stainless Steel, Ceramic Face, BNC Connector, 10m Cable

66,899.00
Learn More
Out of Stock

Desun Uniwill DS480 Conductivity Sensor, 0-300mS/cm, RS485 Output, IP68 Waterproof

33,019.00
Learn More
Out of Stock

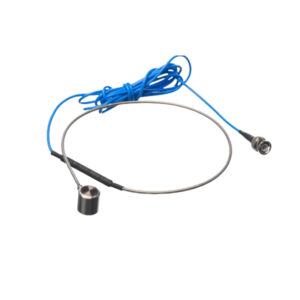

QAWRUMS GH150/1 High-Temperature AE Sensor | 150 kHz, 73 dB, −20 °C to 350 °C, BNC, 3M Cable

263,209.00
Learn More
Out of Stock

Renke RS-OIL-N01-2-EX Oil in Water Sensor with Automatic Cleaning - RS485 Modbus

82,559.00
Learn More
Out of Stock

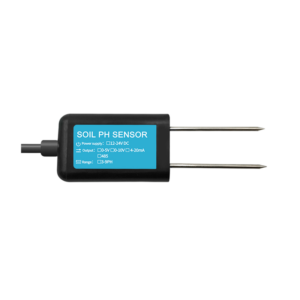

JXBS-3001-PH-RS Soil pH Sensor (RS485) - IP68 Waterproof

2,249.00
Learn More
Out of Stock

SN-3003-EC-N01-01 Four Electrodes EC Sensor - RS485 Modbus, IP68 Waterproof

14,689.00
Learn More
Out of Stock

FirstRate FST100-DO202A Dissolved Oxygen Sensor, 0-20 mg/L, RS485 Output, 5m Cable, IP68, NPT3/4 Port

30,639.00
Learn More
Out of Stock

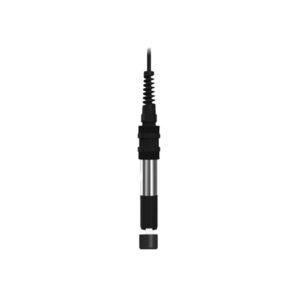

FirstRate FST-100-YL106 Smart Residual Chlorine Sensor, 0-20mg/L, RS485 Modbus & 4-20mA Output

45,189.00
Learn More
Out of Stock

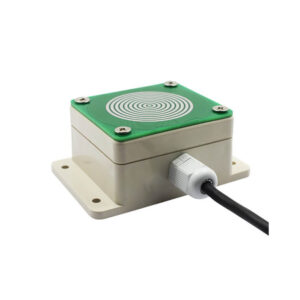

Renke RS-YUX-N01-H Rain & Snow Sensor -40℃~80℃ (RS485 Modbus)
