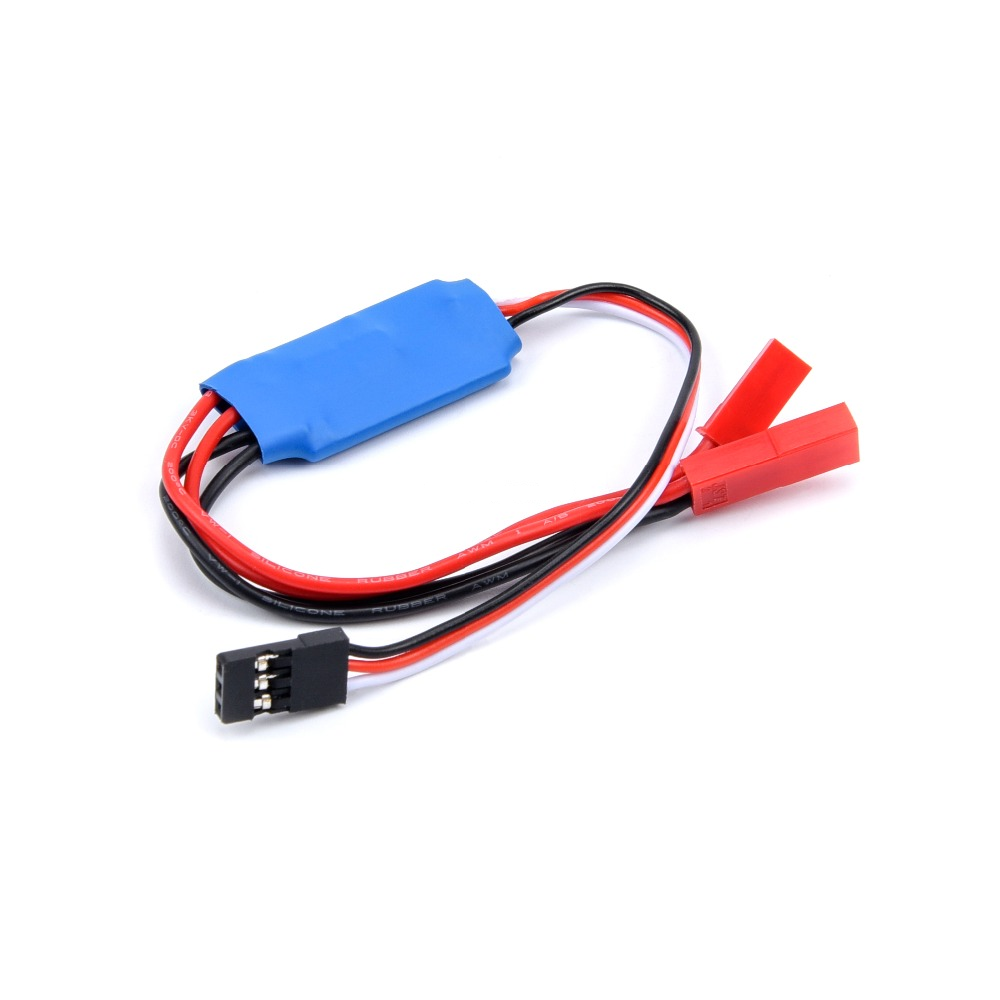

ReadyToSky 10A RC TX Controlled Relay Switch PWM Receiver
The ReadyToSky 10A RC TX Controlled Relay Switch PWM Receiver is a dedicated auxiliary channel module for switching high-current DC loads up to 10A continuously, compatible with standard PWM receivers and 5-28V power systems for FPV drones and robotics.
Features
- 10A continuous DC load switching via standard PWM receiver signal.
- Wide 5-28V DC input voltage range for flexible power system integration.
- Integrated safe-protection mode prevents accidental activation on signal loss or power-up.
- 100mm lead lengths on RX and power wires for easy installation.
- Visual LED status indicator for switch state and protection mode diagnostics.
Out of stock
This relay switch module acts as a high-current electronic switch, controlled by a spare auxiliary channel on any standard PWM receiver. It interprets a PWM pulse width between 400-2600µs, closing its internal MOSFET switch when the pulse exceeds 1800µs and opening it below 1200µs, enabling remote activation of lights, spray systems, or other auxiliary payloads.
The module incorporates a robust safe-protection function to prevent unintended operation. This mode activates if the initial signal at power-up is in the ‘on’ state (>1800µs) or if a valid signal is lost for more than 500ms, forcing the switch to open and causing the LED to blink until normal conditions are restored. Its design is optimized for reliability in UAV and robotic applications where remote switching is required.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 7 × 10 × 1 cm |
