The Engineering Behind Raspberry Pi TV HAT

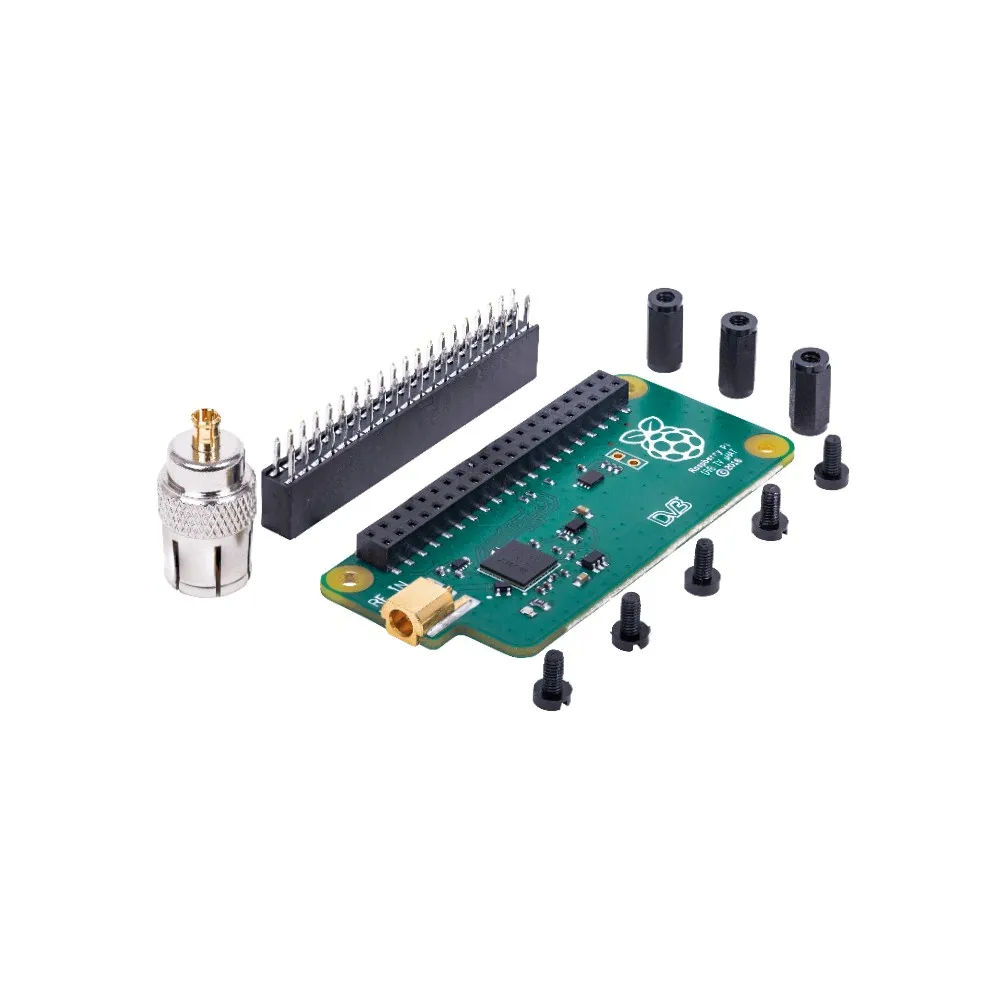

The Raspberry Pi TV HAT is a compact add-on board designed to extend the functionality of your Raspberry Pi, enabling it to receive digital terrestrial television (DVB-T2 and DVB-T) broadcasts. At its core, it features the high-performance Sony CXD2880 demodulator, meticulously engineered to decode digital signals and stream live TV directly to your Raspberry Pi, making it an ideal component for building a DIY media center or a headless DVR system.

Constructed in the standard HAT (Hardware Attached on Top) form factor, this module ensures perfect physical and electrical compatibility with all 40-pin GPIO-equipped Raspberry Pi models. Its robust PCB design and integrated components are rated for continuous operation, offering a reliable solution for educational STEM projects focusing on software-defined radio, digital signal processing, or advanced home automation requiring TV integration.

High-Performance DVB-T2/DVB-T Demodulator

Central to the TV HAT’s capabilities is the Sony CXD2880 tuner, which provides superior sensitivity and signal processing for both DVB-T and the more advanced DVB-T2 standards. This ensures high-definition digital TV reception with excellent picture and sound quality, even in areas with weaker signal strength, offering a stable and reliable viewing experience compared to lower-grade alternatives.

GPIO-Based Power and Data Interface

The TV HAT draws all necessary power and communicates data directly through the Raspberry Pi’s 40-pin GPIO header. This eliminates the need for external power supplies and simplifies system integration. Utilizing standard Linux V4L2 drivers, it offers broad compatibility with popular media center software solutions like OSMC, LibreELEC, and TVHeadend, allowing for easy configuration and immediate deployment into existing Raspberry Pi setups.

Optimized for Performance & Integration

• Tuner Chipset: Sony CXD2880
• Supported Standards: DVB-T2, DVB-T
• Antenna Input: Coaxial MCX connector
• Interface: Raspberry Pi 40-pin GPIO
• Compatibility: Raspberry Pi Zero, 2, 3, 4 (and variants with 40-pin GPIO)
• Power Source: 5VDC via Raspberry Pi GPIO
• Current Consumption: ~200mA (typical)
• Operating Frequency: UHF/VHF bands

Features & Benefits

• DVB-T2/DVB-T Support: Receives both high-definition DVB-T2 and standard DVB-T digital terrestrial broadcast signals.
• Sony CXD2880 Tuner: Guarantees high-sensitivity reception and robust signal decoding for superior video and audio quality.
• HAT Form Factor: Ensures direct, secure mounting onto any 40-pin Raspberry Pi for a clean, integrated solution.
• GPIO Connectivity: Eliminates external power requirements and simplifies setup, drawing power and data directly from the Pi.
• Software Compatibility: Fully supported by Linux V4L2 drivers, enabling seamless integration with popular media center distributions like OSMC.
• Miniature Design: Compact footprint maintains the small form factor of the Raspberry Pi, perfect for embedded projects.
