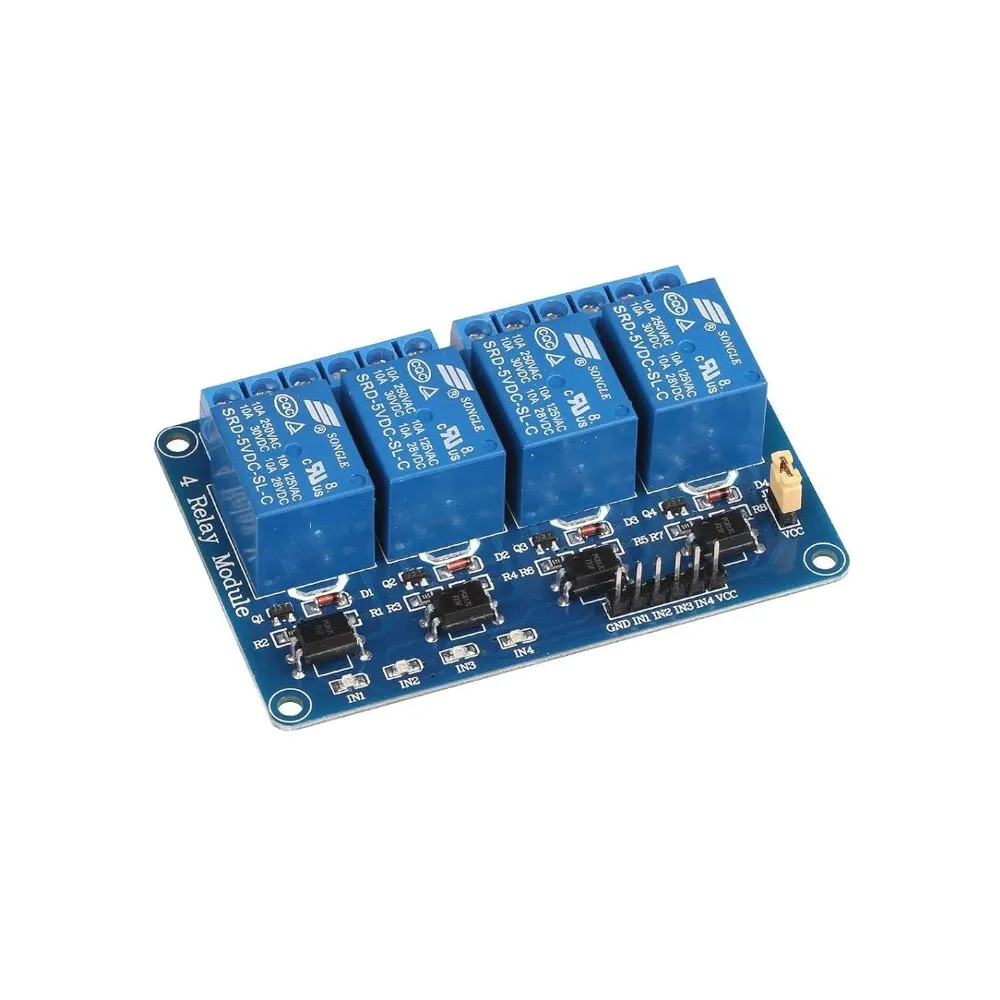

Generic 4 Channel 5V Relay Module Optocoupled Switching Board | High Current Load | Microcontroller Compatible

The Engineering Behind 4 Channel 5V Relay Module

This 4 Channel 5V Relay Module with Optocoupler is an essential interface board designed to enable low-voltage microcontrollers to control high-voltage, high-current AC or DC loads. Its core architecture integrates four independent electromechanical relays, typically SRD-05VDC-SL-C or equivalents, each controlled by a dedicated digital input. The operational mechanics involve an electromagnetic coil that, when energized by a 5V signal, physically switches a contact between normally open (NO) and normally closed (NC) states, allowing precise control over connected devices.

Constructed on a high-grade FR-4 PCB, this module features an optimized layout for signal integrity and efficient power handling. High-quality screw terminals ensure secure and reliable connections for load wiring, while header pins provide a straightforward interface to control electronics. The inclusion of optocouplers per channel significantly enhances durability and operational safety by providing galvanic isolation between the control logic and the power switching circuits.

Optocoupled Isolation for Circuit Integrity

The most vital core aspect of this module is its optocoupled isolation. Utilizing PC817 or similar optocouplers, it galvanically separates the low-voltage control side (e.g., microcontroller I/O) from the high-voltage load side. This critical engineering choice prevents harmful voltage spikes, electrical noise, and ground potential differences from propagating back to the sensitive control electronics, thereby protecting microcontrollers from damage and ensuring stable, interference-free operation even in noisy industrial environments.

Multi-Channel Expandability & Flexible Triggering

Providing four distinct switching channels, this module allows for the simultaneous and independent control of multiple peripherals or components. This multi-channel capability simplifies complex automation projects by centralizing control and reducing the overall component count compared to implementing discrete relay circuits. Each channel typically supports low-level triggering, meaning a LOW signal (0V) from the microcontroller activates the relay, which is a common and convenient control method for many embedded systems.

Optimized for Performance & Integration

• Control Voltage: 5V DC
• Channels: 4 (Independent, SPDT)
• Load Capacity (per channel): 10A @ 250VAC / 10A @ 30VDC
• Isolation Type: Optocoupler (Galvanic Isolation)
• Trigger Level: Low Level Trigger (typically active low)
• Interface: Standard header pins (VCC, GND, IN1-IN4)
• Status Indicators: 4x Channel Status LEDs
• Mounting: 4x Standard M3 Mounting Holes

Features & Benefits

• Optocoupled Isolation: Protects sensitive control electronics from high voltage spikes and ground loops, enhancing system longevity.
• Four Independent Channels: Enables simultaneous control of multiple devices, simplifying complex automation tasks and reducing module count.
• High Current Switching: Handles up to 10A at 250VAC or 30VDC per channel, suitable for motors, lights, and appliances.
• 5V TTL Logic Compatibility: Directly interfaces with Arduino, Raspberry Pi, ESP32, and other 5V microcontrollers without level shifting.
• LED Status Indicators: Provides instant visual feedback for each channel’s activation status, aiding in debugging and operation.
• Robust PCB Construction: Built on a high-quality FR-4 board, ensuring long-term reliability and stable performance in demanding environments.
