Generic 4-Channel 12V Relay Module | Optocoupler Isolation | High Current Switching

The Engineering Behind 4-Channel 12V Relay Module with Optocoupler

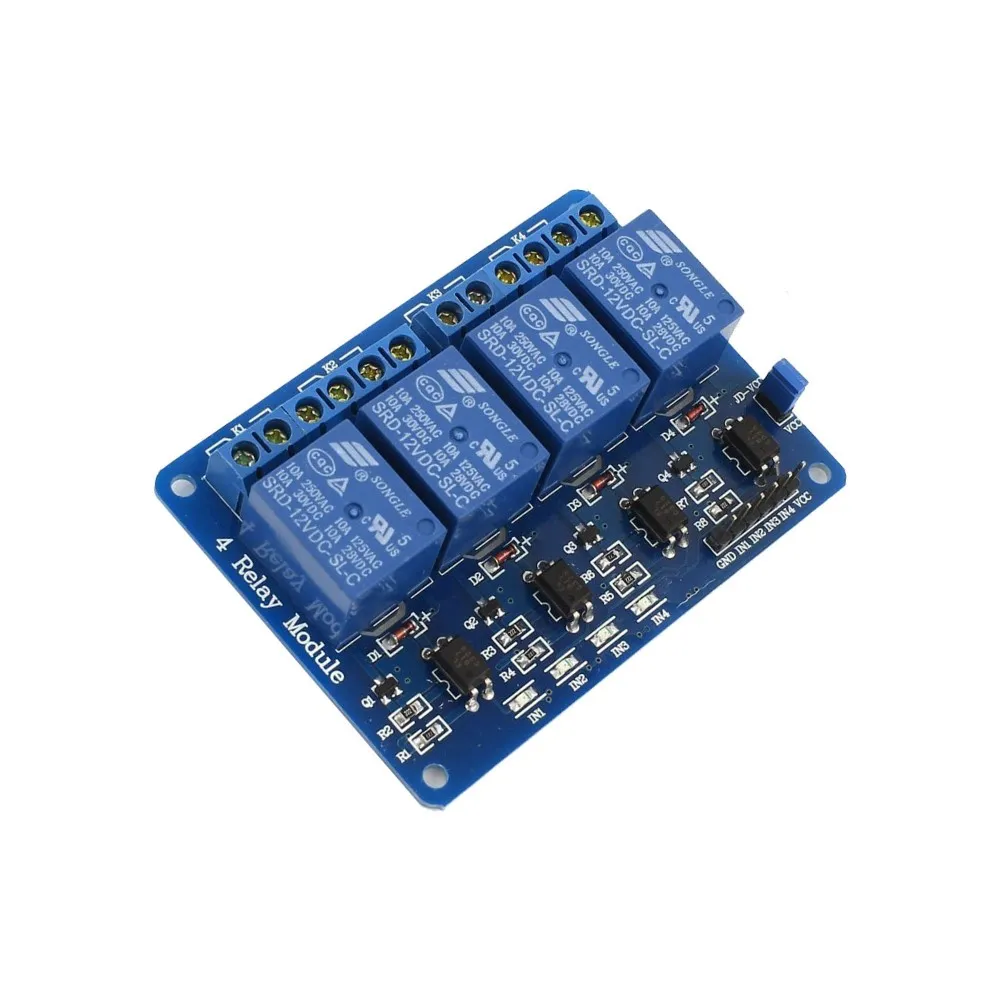

This 4-channel 12V relay module serves as a critical interface for controlling high-voltage or high-current loads using low-voltage digital signals, typically from microcontrollers like Arduino or Raspberry Pi. Its core architecture integrates four independent electromagnetic relays, each activated by a 12V coil, allowing the switching of AC or DC loads up to specified ratings. The inclusion of optocouplers provides essential electrical isolation, preventing voltage spikes and noise from the high-power side from affecting the sensitive control circuitry.

Constructed with industrial-grade components, including robust Songle SRD-12VDC-SL-C relays and high-efficiency optocouplers, this module ensures long-term operational stability and enhanced safety. Each channel features an indicator LED, providing immediate visual feedback on the relay’s switching status, crucial for debugging and operational verification in complex systems. The board’s compact design and clearly labeled screw terminals facilitate straightforward integration into various prototyping and industrial control applications.

Galvanic Isolation with Optocouplers

The integrated optocouplers are fundamental for safety and signal integrity. They convert the electrical control signal into a light signal, which then actuates the relay on the high-power side. This light-based communication creates a complete electrical break between the microcontroller’s low-voltage circuit and the relay’s load circuit, effectively protecting sensitive microcontrollers from damaging voltage spikes, ground loops, and electrical noise, ensuring system longevity and reliability.

Flexible 12V Coil Voltage & High Load Capacity

Operating with a 12V coil voltage, this module is compatible with standard power supplies prevalent in many industrial and hobbyist setups, simplifying power management. Each relay is rated to switch up to 10A at 250VAC or 30VDC, offering significant load capacity for controlling motors, lights, solenoid valves, and other demanding applications. This high current capability extends the module’s utility beyond simple signaling, enabling direct control of substantial power consumers.

Optimized for Performance & Integration

• Channels: 4 independent relay channels
• Coil Voltage: 12V DC per relay
• Load Capacity: 10A @ 250VAC / 10A @ 30VDC (per channel)
• Isolation: Optocoupler isolation for control signals
• Indicators: Status LED for each relay channel
• Input Interface: Standard male header pins for control
• Output Interface: Screw terminals for load connection

Features & Benefits

• Four Independent Channels: Control multiple devices simultaneously or sequentially with precise timing.
• Optocoupler Isolation: Provides superior electrical separation, protecting your microcontroller from high-voltage spikes and noise.
• 12V Coil Operation: Standard voltage for broad compatibility with readily available power supplies and systems.
• High Current Capacity: Each relay handles up to 10A, suitable for switching a wide range of AC/DC loads.
• Status Indicator LEDs: Instant visual feedback for each relay’s ON/OFF state, simplifying debugging.
• Robust Screw Terminals: Ensures secure and reliable connections for high-current applications.
