SKU: SBCD-0886
📋 GST Invoice Available

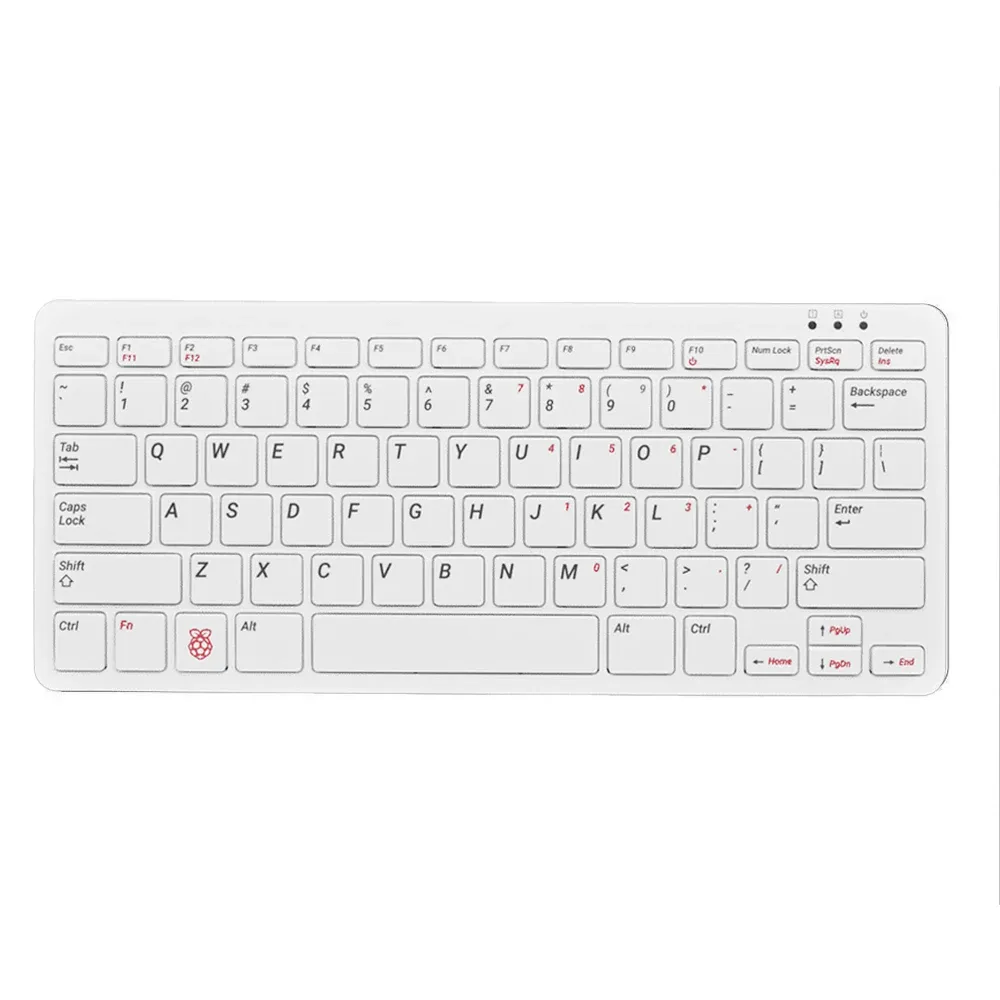

Raspberry Pi 400 Keyboard Computer - US Layout

₹10,369.00 (Inclusive of all taxes)
Out of Stock

The Raspberry Pi 400 is a compact, plug-and-play personal computer integrated into a US layout keyboard, featuring a powerful Broadcom BCM2711 quad-core Cortex-A72 processor, dual-band Wi-Fi, Gigabit Ethernet, and dual micro HDMI outputs for 4K video.

Features

  • Integrated keyboard computer with Raspberry Pi 400 board inside.
  • Powered by a Quad-Core Broadcom BCM2711 Cortex-A72 (ARM v8) 64-bit SoC @ 1.8GHz.
  • Features dual-band 2.4/5.0 GHz Wi-Fi, Bluetooth 5.0 BLE, and Gigabit Ethernet via USB 3.0.
  • Supports dual 4K display output via two micro HDMI ports with H.265 video decode.

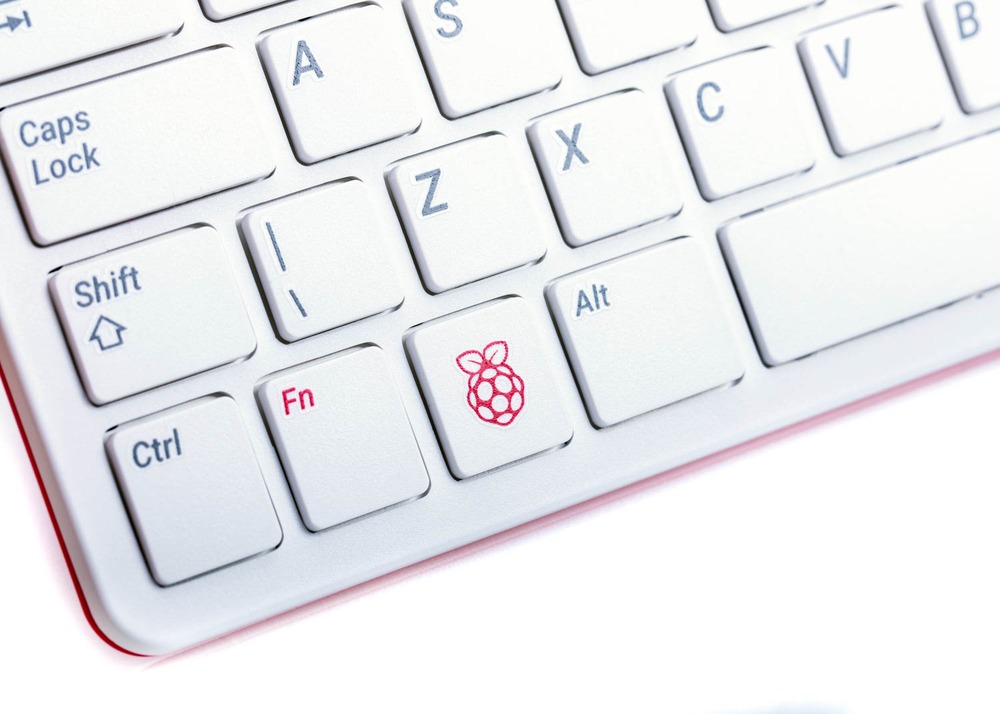

  • US keyboard layout, making it a complete ready-to-use desktop solution.

Out of stock

Description

The Raspberry Pi 400 transforms the traditional single board computer concept into a fully integrated, portable personal computer. Encased within a compact US layout keyboard, this device leverages the robust performance of a Broadcom BCM2711 quad-core Cortex-A72 (ARMv8) 64-bit processor clocked at 1.8GHz, offering ample power for daily computing tasks, web browsing, media playback, and coding projects.

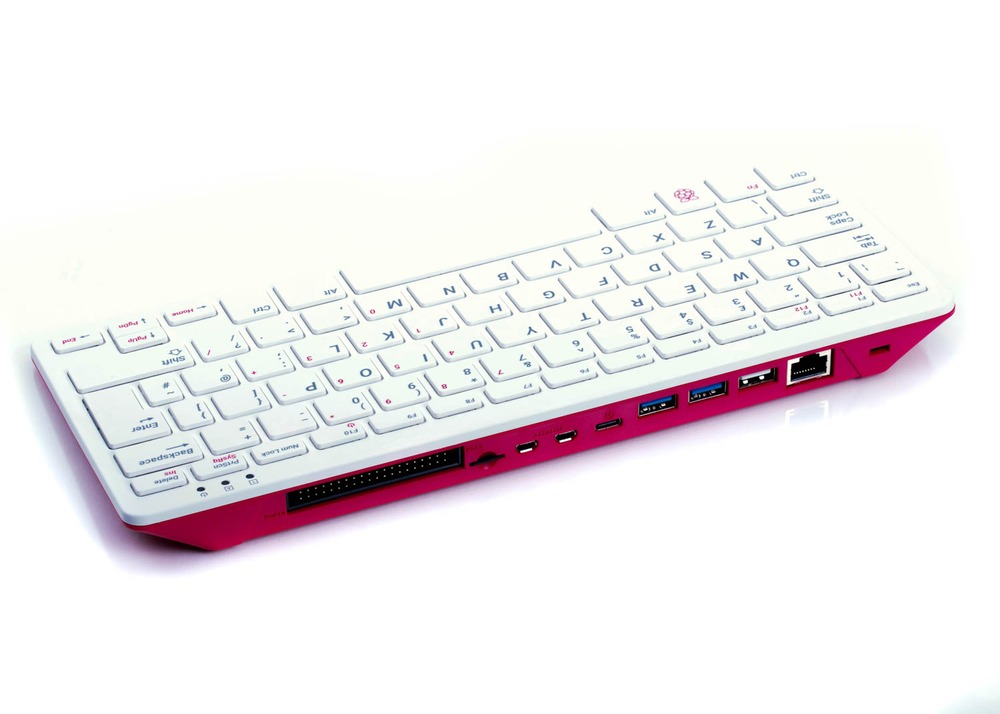

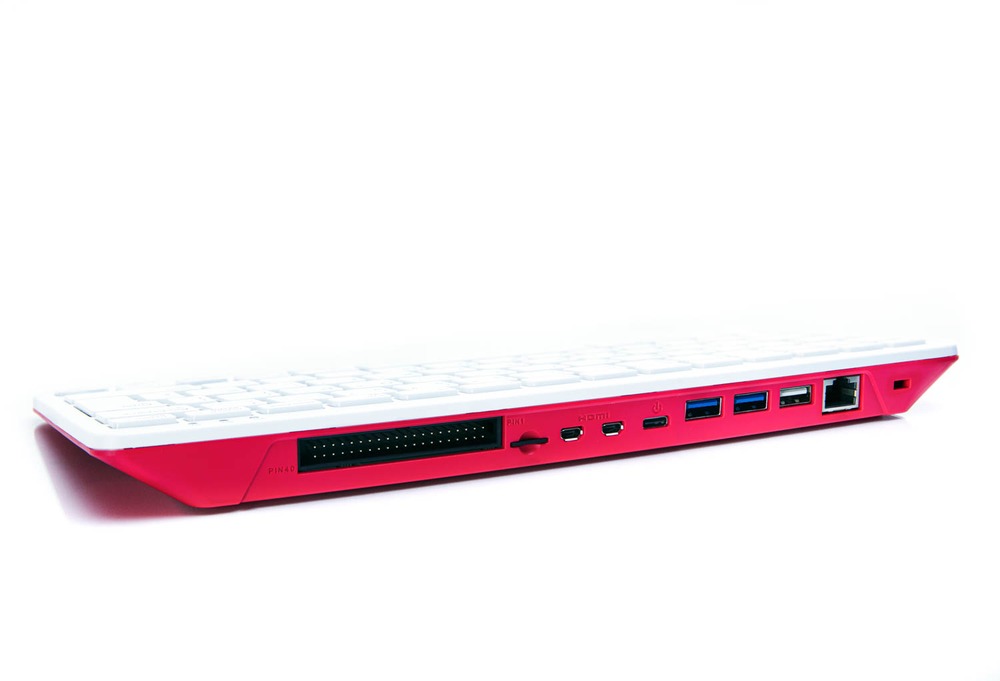

Designed for immediate plug-and-play functionality, the Raspberry Pi 400 incorporates comprehensive connectivity options including dual-band 802.11ac Wi-Fi, Bluetooth 5.0 BLE, and high-speed Gigabit Ethernet over USB 3.0. It supports dual 4K display output through micro HDMI ports, capable of H.265 video decode. All essential I/O ports, including the 40-pin GPIO header and SD card slot, are conveniently accessible at the top of the keyboard, ensuring seamless integration into various setups and projects.

Key Features

  • Integrated Broadcom BCM2711 quad-core Cortex-A72 (ARMv8) 64-bit processor running at 1.8GHz.
  • 4GB LPDDR4-3200 SDRAM for efficient multitasking and application performance.
  • Dual micro HDMI ports supporting up to 4K@60Hz resolution, ideal for multi-monitor setups.
  • Hardware video decode capabilities for H.265 (4Kp60) and H.264 (1080p60), with 1080p30 H.264 encode.
  • Integrated dual-band 802.11ac Wi-Fi and Bluetooth 5.0 BLE for robust wireless connectivity.
  • Gigabit Ethernet via USB 3.0 provides high-speed wired networking.
  • Standard 40-pin GPIO header offers extensive hardware expansion and prototyping capabilities.
  • USB Type-C power input (5V@3A) and two USB 3.0 ports for peripherals.

Applications

  • General-purpose desktop computing for education, home, and office use.
  • Embedded programming and software development environments.
  • Media center and streaming device for 4K video playback.
  • Learning platform for electronics, coding, and robotics with GPIO access.
  • Remote work setup and light productivity tasks.

Technical Specifications

ProcessorBroadcom BCM2711, Quad-Core Cortex-A72 (ARM v8) 64-bit SoC @ 1.8GHz
RAM4GB LPDDR4-3200
Wireless ConnectivityDual-band 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless LAN, Bluetooth 5.0, BLE
Wired ConnectivityGigabit Ethernet (via USB 3.0), 2x USB 3.0 ports, 1x USB 2.0 port
GPIOStandard 40-pin GPIO Header
Video Output2x micro HDMI ports (up to 4Kp60 supported)
MultimediaH.265 (4Kp60 decode), H.264 (1080p60 decode, 1080p30 encode), OpenGL ES 3.0 Graphics
StorageMicro SD Card Slot (external)
Power Input5V DC via USB Type-C Connector (min. 3A)
Keyboard LayoutUS
Operating Temperature0°C to 40°C
Dimensions (Keyboard)286mm x 122mm

Frequently Asked Questions

What operating systems are compatible with the Raspberry Pi 400?

The Raspberry Pi 400 primarily supports Raspberry Pi OS (formerly Raspbian), which is a Debian-based Linux distribution. It is also compatible with other ARM-based Linux distributions, various media center operating systems, and specialized IoT platforms, offering a wide range of software choices for diverse applications.

Can I connect external peripherals to the Raspberry Pi 400?

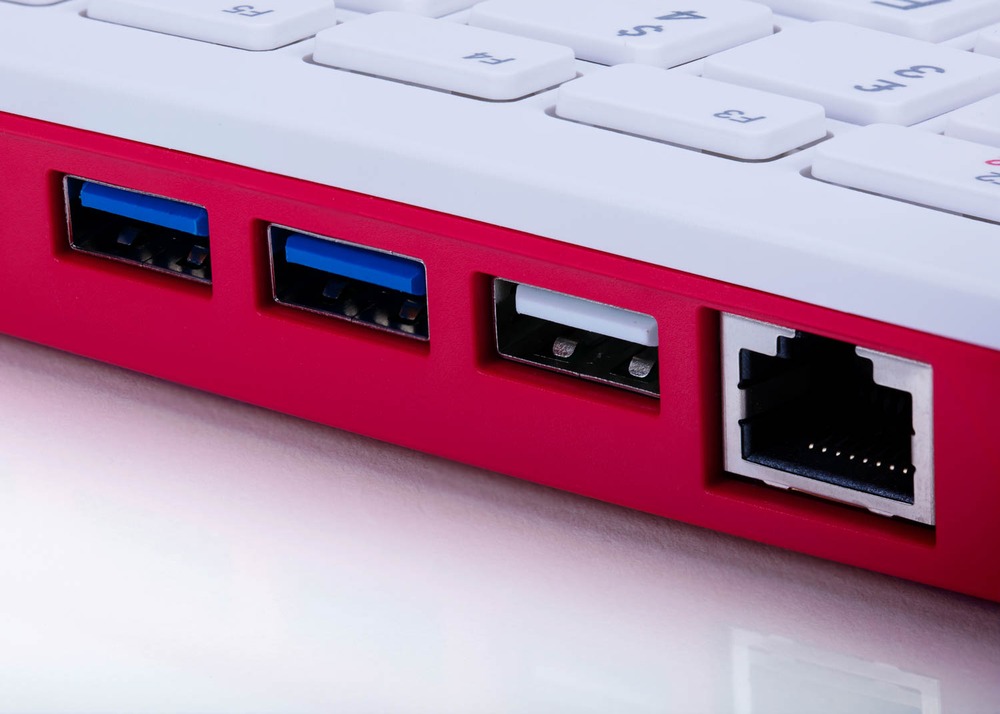

Yes, the Raspberry Pi 400 includes two USB 3.0 ports and one USB 2.0 port for connecting external peripherals like mice, webcams, and external storage drives. It also features Bluetooth 5.0 for wireless accessory connectivity, ensuring broad peripheral compatibility.

What are the video output capabilities of the Raspberry Pi 400?

The Raspberry Pi 400 is equipped with two micro HDMI ports, capable of driving dual displays simultaneously at resolutions up to 4K at 60 frames per second. It supports hardware accelerated H.265 (4Kp60) and H.264 (1080p60) video decoding, making it suitable for high-definition media playback and productivity.

Is the 40-pin GPIO header still accessible on the Raspberry Pi 400?

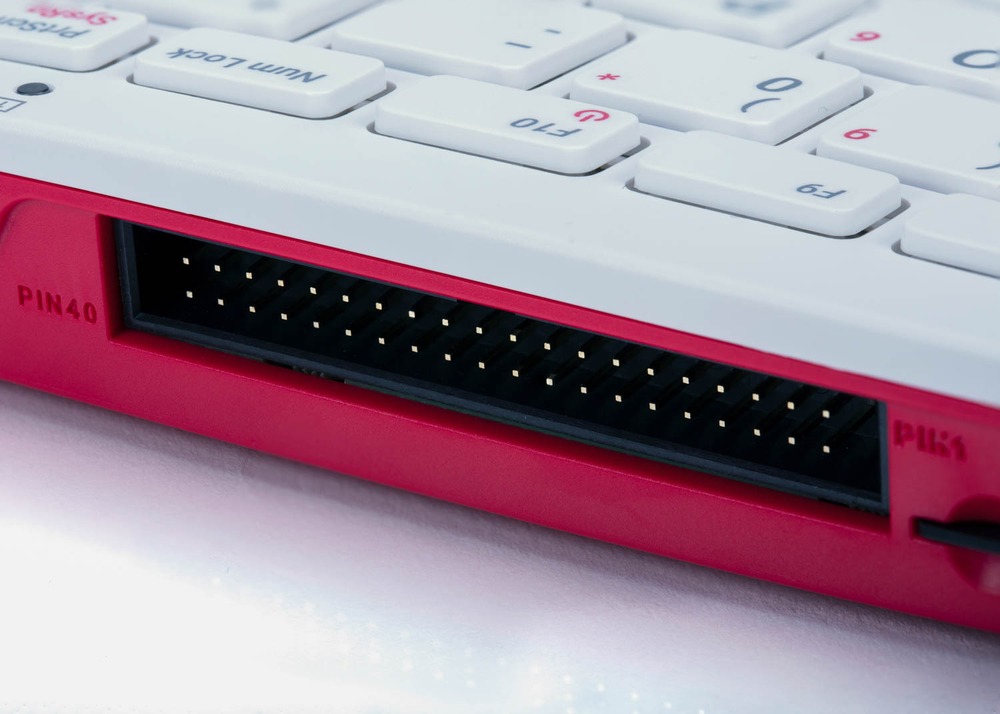

Yes, the standard 40-pin GPIO header is conveniently accessible at the top edge of the keyboard. This allows users to connect and control a wide array of sensors, actuators, and expansion boards (HATs), maintaining full compatibility with the extensive Raspberry Pi ecosystem for hardware projects and prototyping.

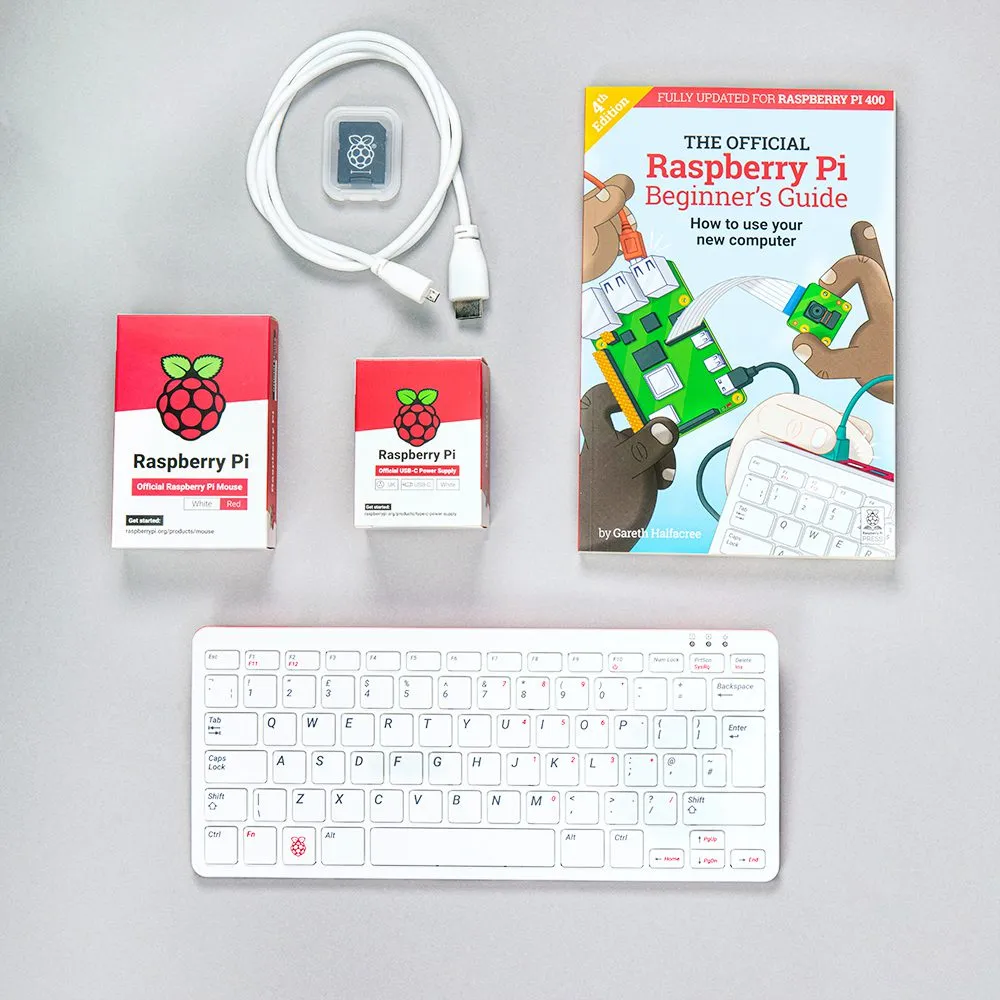

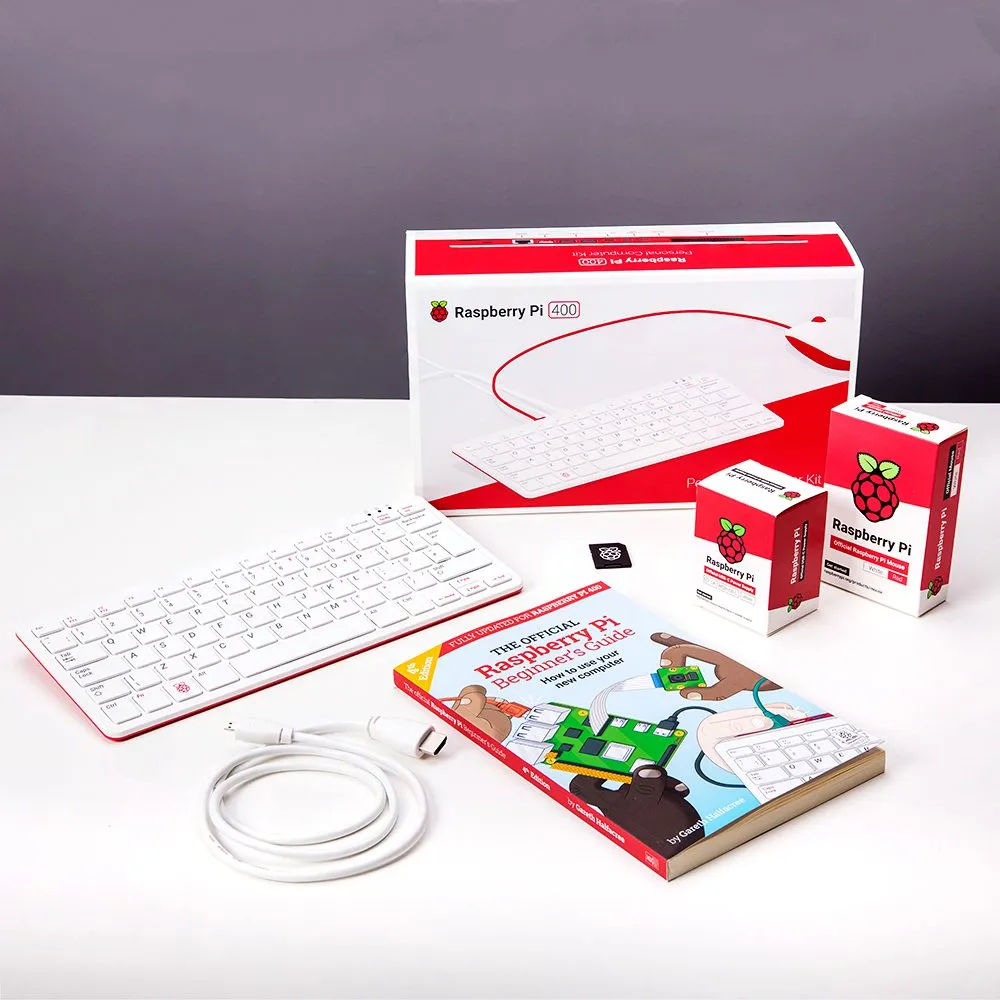

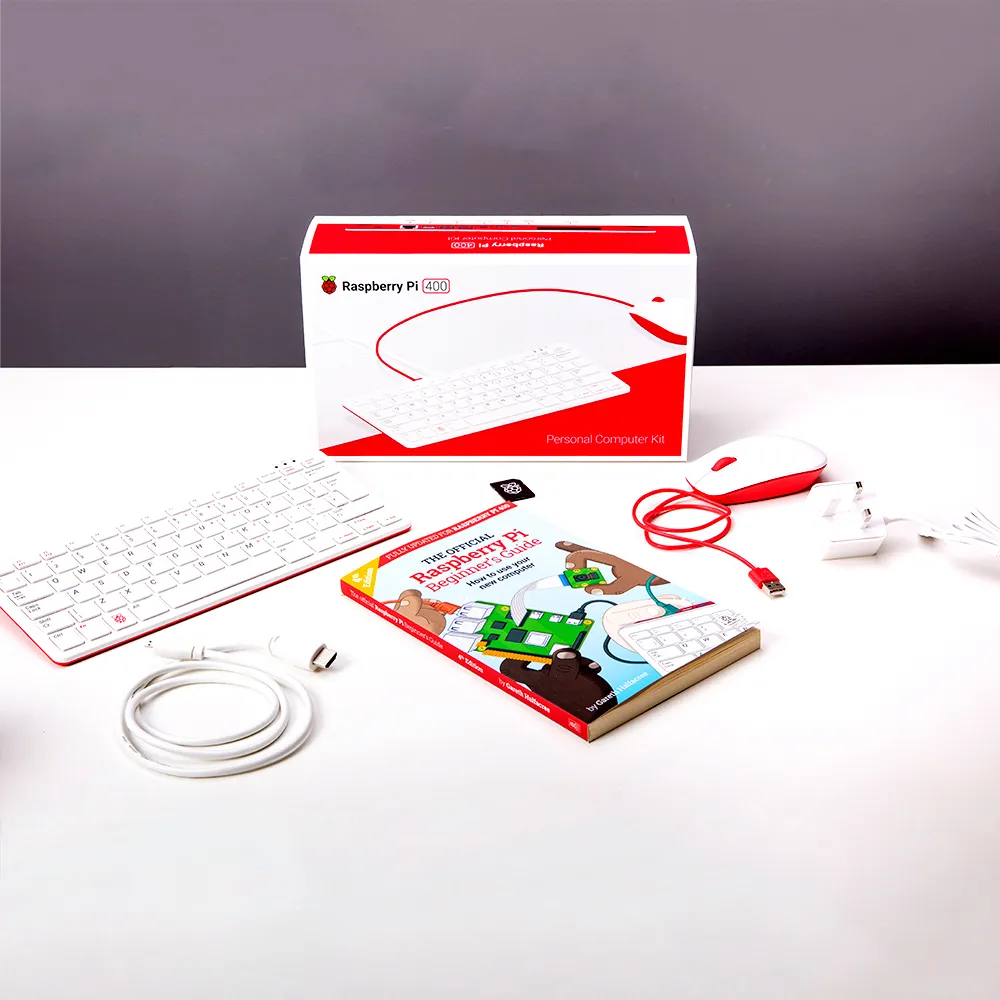

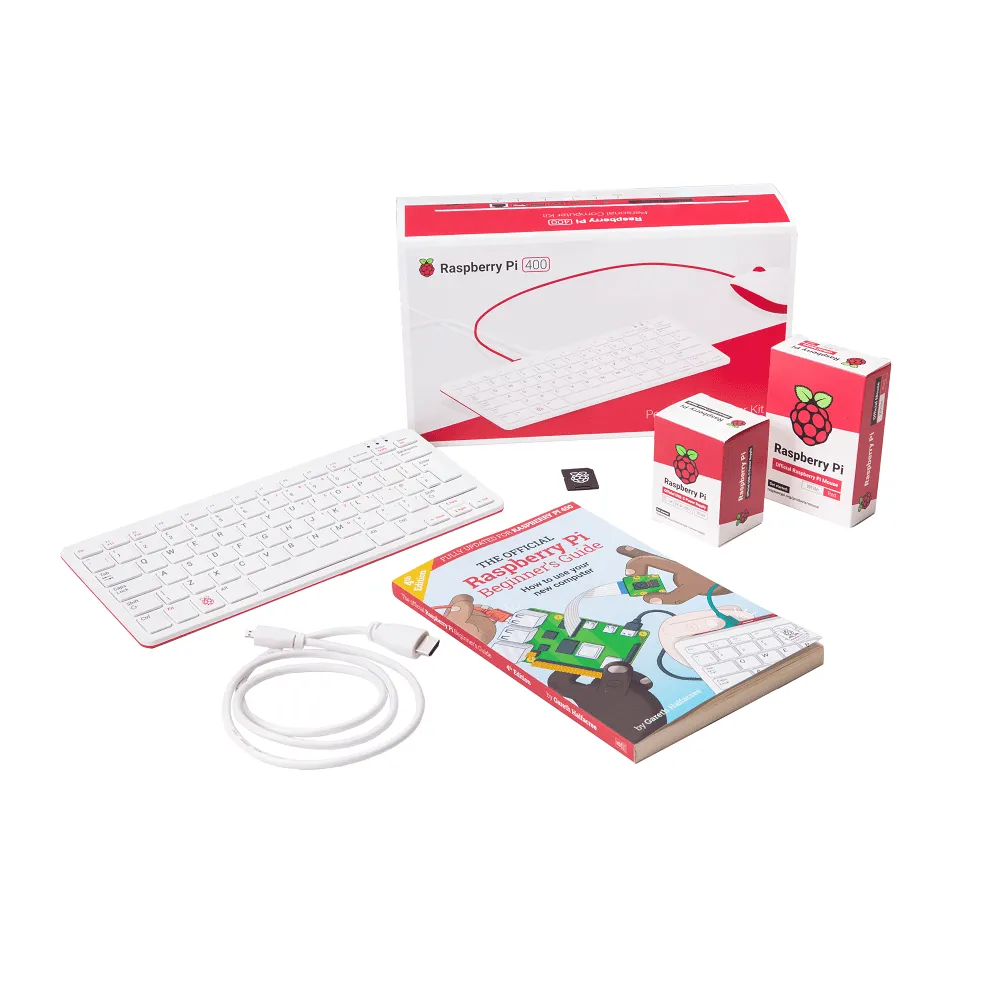

Package Includes

  • 1x Raspberry Pi 400 Personal Keyboard Computer (US Layout)
  • 1x Raspberry Pi Official Power Supply (EU Plug)
  • 1x Raspberry Pi Official Wired Mouse
  • 1x 16GB MicroSD card (pre-programmed with Raspberry Pi OS)
  • 1x Micro HDMI to HDMI-A Cable (1 Meter)
  • 1x User Guide

Additional Information

Weight 0.7 kg
Dimensions 30 × 18 × 10 cm
