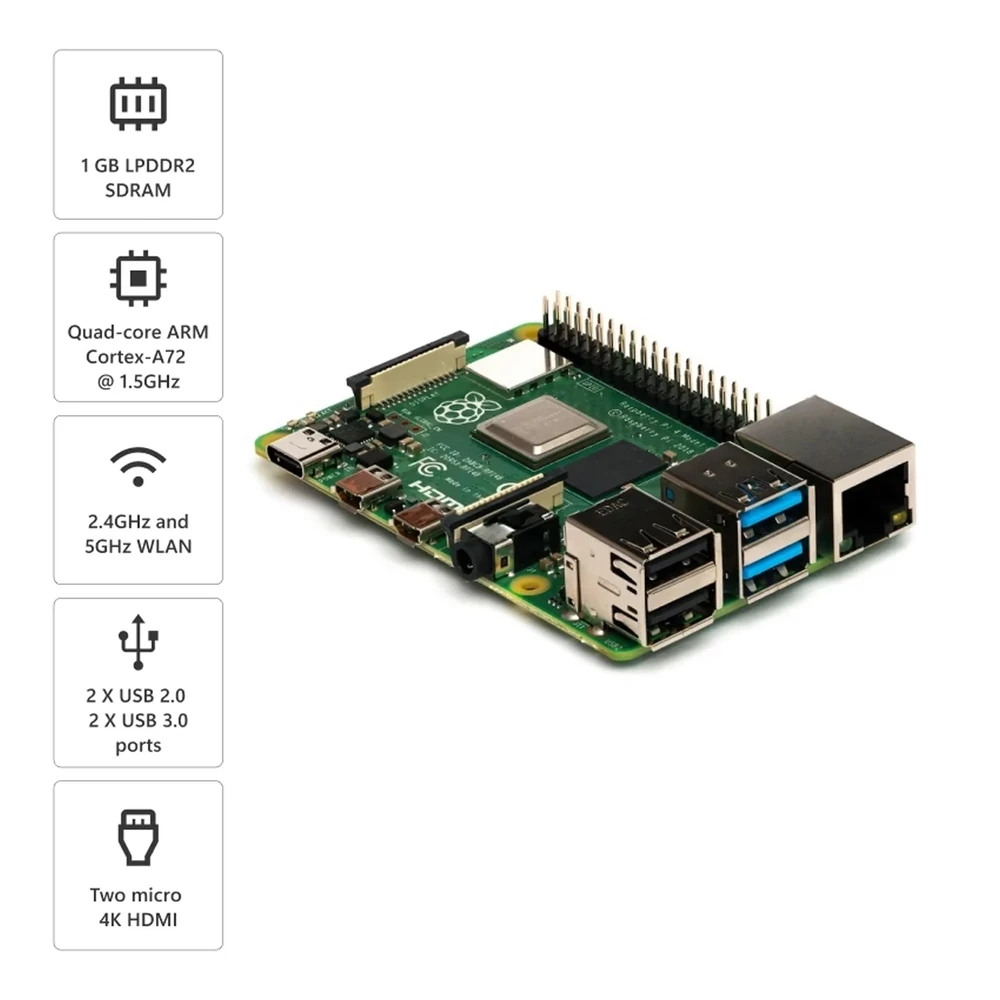

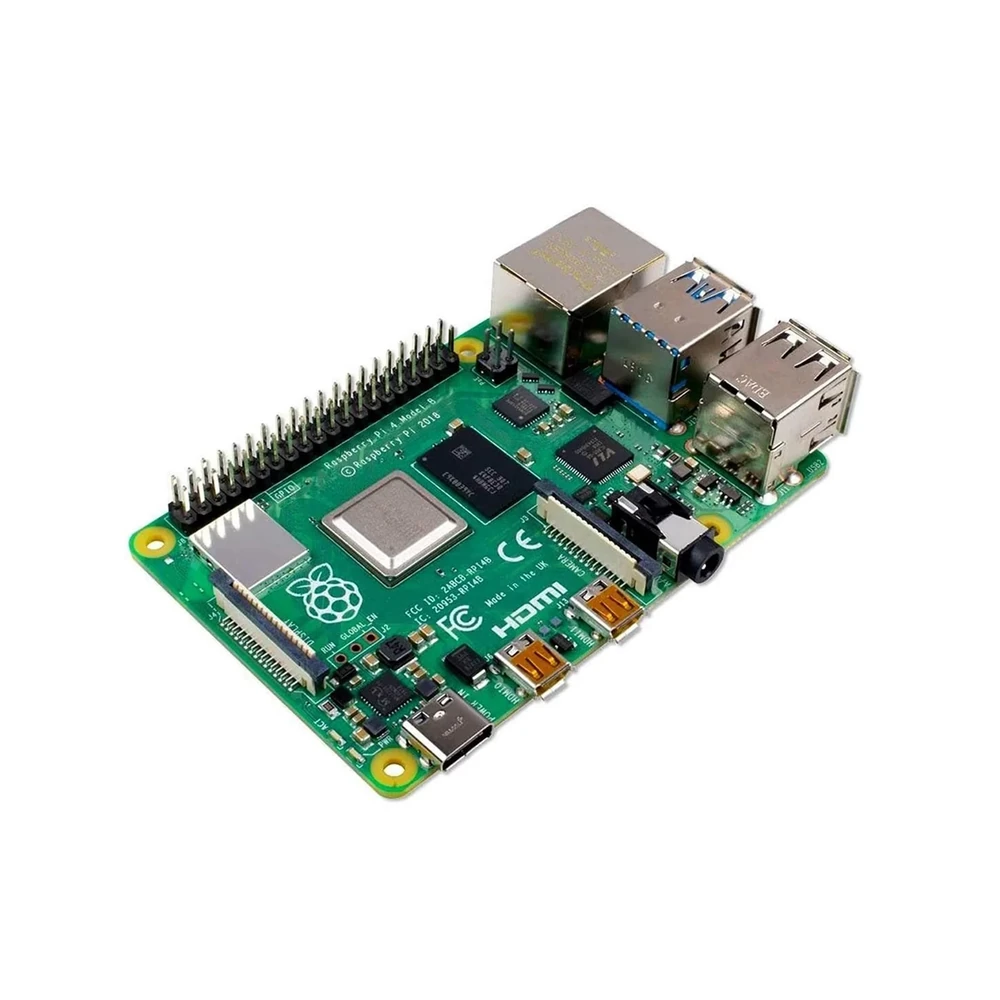

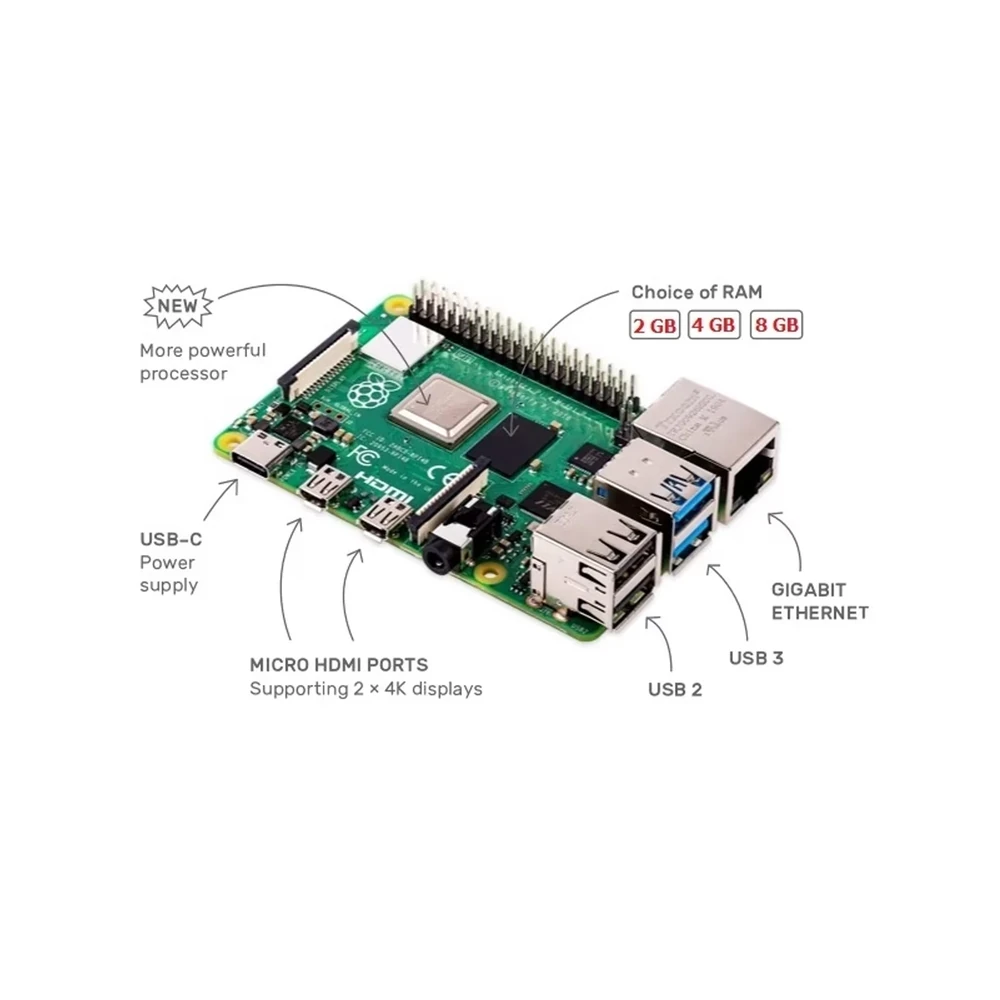

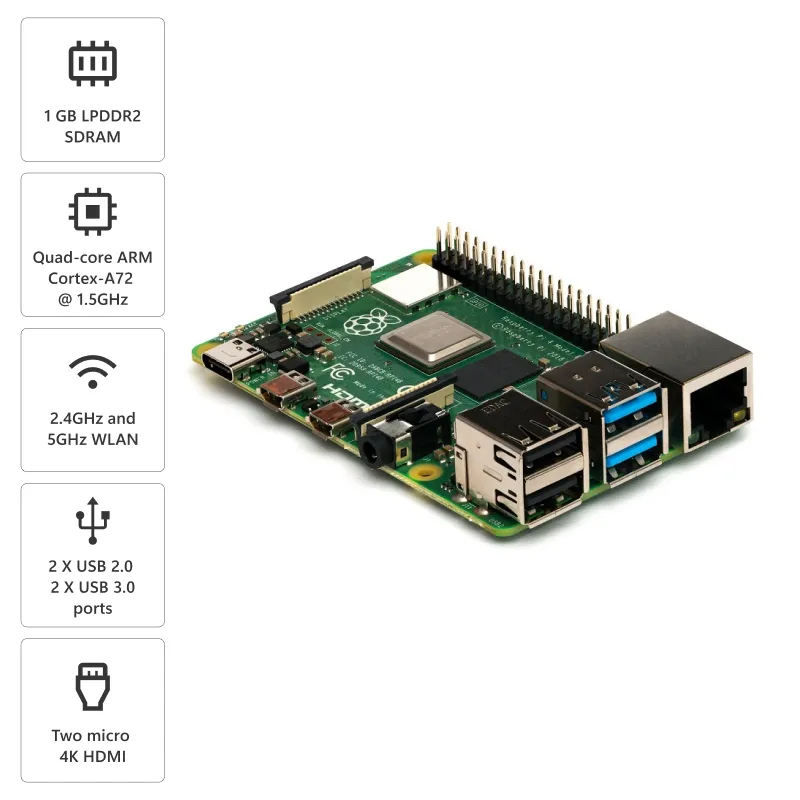

Raspberry Pi 4 Model B 1GB RAM

₹4,339.00 (Inclusive of all taxes)
Out of Stock

The Raspberry Pi 4 Model B with 1GB RAM delivers enhanced performance for embedded projects and general computing, featuring a 1.5GHz quad-core Cortex-A72 processor, dual-band Wi-Fi, Bluetooth 5.0, and dual 4K micro HDMI outputs.

Features

  • Quad-core 1.5GHz ARM Cortex-A72 processor for significant performance uplift.
  • 1GB LPDDR4 RAM, dual-band 2.4/5GHz Wi-Fi, and Bluetooth 5.0 for robust connectivity.
  • Dual micro HDMI ports supporting up to 4K resolution at 60fps for multi-display setups.
  • Versatile 40-pin GPIO header for extensive peripheral connectivity and prototyping.

Out of stock

Description

The Raspberry Pi 4 Model B with 1GB RAM is a powerful single-board computer that provides a substantial upgrade over previous generations. Engineered around a quad-core ARM Cortex-A72 processor clocked at 1.5GHz, it delivers significantly improved processing capabilities, making it suitable for a wide range of applications from embedded systems to desktop computing.

This 1GB LPDDR4 RAM variant serves as a robust foundation for general-purpose computing tasks and lightweight projects, offering ample memory for many common workloads. Beyond its core processing, the Raspberry Pi 4 Model B features comprehensive connectivity including dual-band Wi-Fi, Bluetooth 5.0, Gigabit Ethernet, and two USB 3.0 ports, alongside two USB 2.0 ports. Its dual micro HDMI outputs support up to 4K resolution, enabling sophisticated multi-monitor setups. A versatile 40-pin GPIO header ensures compatibility with a broad ecosystem of HATs and custom hardware.

Key Features

  • Quad-core ARM Cortex-A72 CPU running at 1.5GHz for enhanced performance.
  • 1 GB LPDDR4 RAM providing solid memory for various applications.
  • Two USB 3.0 ports and two USB 2.0 ports for connecting diverse peripherals.
  • Dual-band 2.4GHz and 5GHz Wi-Fi for reliable wireless networking.
  • Bluetooth 5.0 with Bluetooth Low Energy (BLE) for device connectivity.
  • Two micro HDMI ports supporting up to 4K resolution at 60fps for dual-monitor setups.
  • Standard 40-pin GPIO header for expansion boards and custom hardware interfacing.
  • MicroSD card slot for operating system storage and data.
  • 5V USB-C power supply port for stable power delivery.
  • Compatible with Raspberry Pi OS, Ubuntu, and other ARM-based operating systems.

Applications

  • Home automation and IoT gateways
  • Embedded system development and prototyping
  • Compact desktop computing and thin clients
  • Media centers and streaming devices
  • Educational tools for programming and electronics
  • Robotics control and automation projects

Technical Specifications

ModelRaspberry Pi 4 B
CPU Clock Speed1.5 GHz
RAM1 GB LPDDR4
Power Input5V 3A DC via USB Type-C, 5V 3A DC via GPIO Header, Power Over Ethernet (PoE) Enabled (requires separate PoE HAT)
GPIO HeaderStandard 40-pin GPIO Header

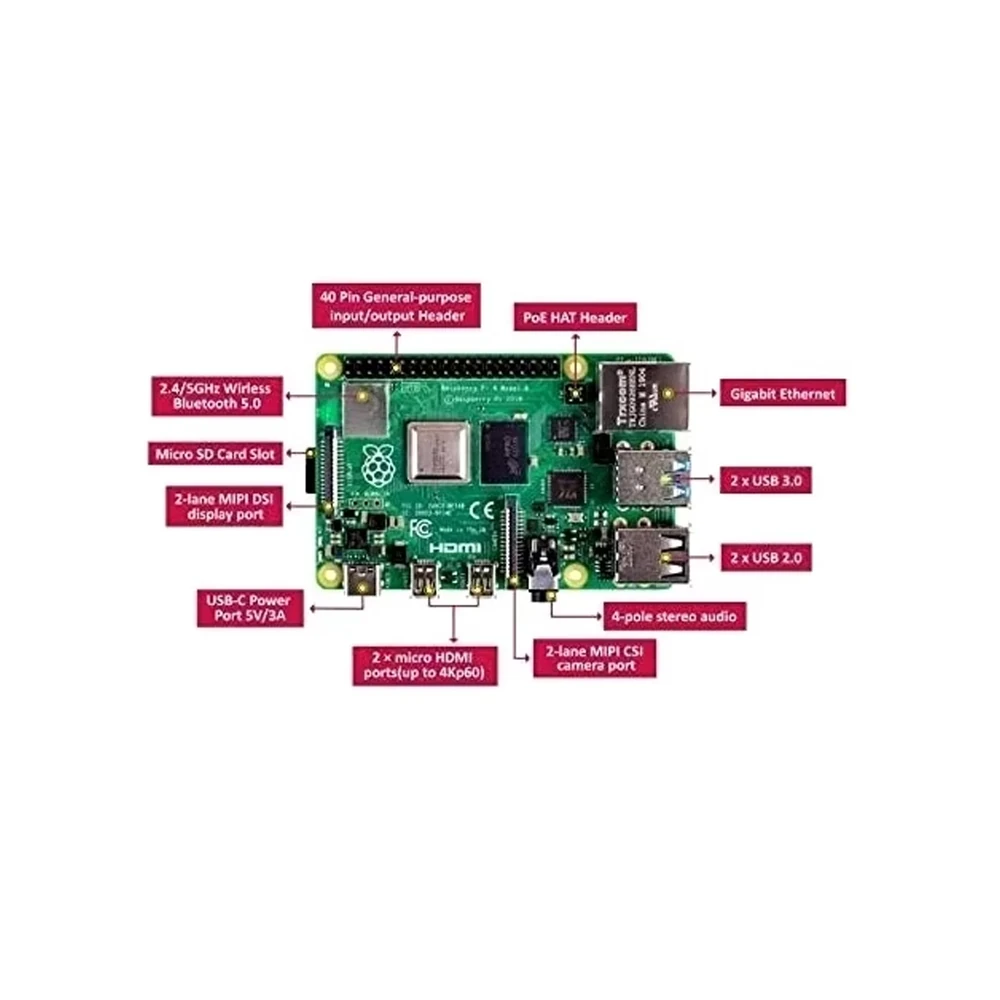

Video & Audio2-Lane MIPI DSI Display Port, 2-Lane MIPI CSI Camera Port, 4-Pole Stereo Audio and Composite Video Port, 2 micro HDMI ports (up to 4Kp60 supported)
Multimedia SupportH.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES, 3.0 Graphics
StorageMicro SD Card Slot (FAT32 format), supports up to 32GB Micro SD Card
Operating Temperature0 to +55 °C
Dimensions85 x 56 x 19 mm
Weight52 g

Frequently Asked Questions

What is the primary processor of the Raspberry Pi 4 Model B and its clock speed?

The Raspberry Pi 4 Model B is powered by a Broadcom BCM2711 SoC, which integrates a quad-core ARM Cortex-A72 (ARMv8) 64-bit processor. This CPU operates at a clock speed of 1.5GHz, providing significant performance improvements over previous Raspberry Pi models for demanding tasks and applications.

What are the video output capabilities of the Raspberry Pi 4 Model B?

The Raspberry Pi 4 Model B features two micro HDMI ports, each capable of supporting up to 4K resolution. One port can output 4Kp60, while the other supports 4Kp30, allowing for versatile dual-monitor setups. It also includes 2-Lane MIPI DSI and CSI ports for display and camera connections.

Can the Raspberry Pi 4 Model B be powered via Power over Ethernet (PoE)?

Yes, the Raspberry Pi 4 Model B supports Power over Ethernet (PoE). However, this functionality requires a separate official Raspberry Pi PoE HAT (Hardware Attached on Top) to be connected to the board's GPIO pins. This allows for both power and data delivery over a single Ethernet cable.

Which operating systems are compatible with the Raspberry Pi 4 Model B?

The Raspberry Pi 4 Model B is compatible with a wide range of operating systems, including the official Raspberry Pi OS (formerly Raspbian), Ubuntu, Windows 10 IoT Core, and various other Linux distributions. Users can also explore options like Android and specialized media center distributions.

What type of storage does the Raspberry Pi 4 Model B use for its operating system?

The Raspberry Pi 4 Model B primarily uses a microSD card for storing its operating system and user data. The board features a dedicated microSD card slot. It is recommended to use high-quality, high-speed microSD cards for optimal performance, though a maximum of 32GB is explicitly stated, larger cards typically work.

Package Includes

  • 1 x Raspberry Pi 4 Model B with 1GB RAM

Additional Information

Weight 0.052 kg
Dimensions 8.5 × 5.6 × 1.9 cm
