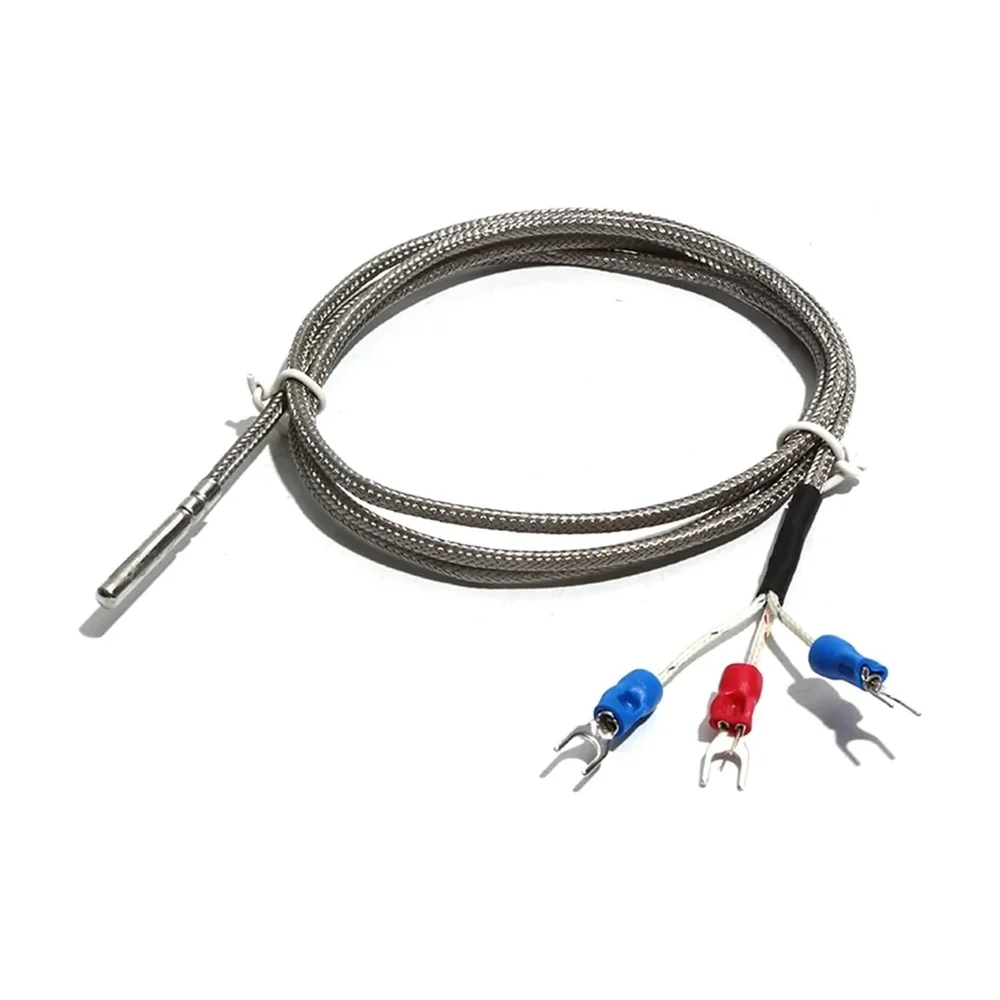

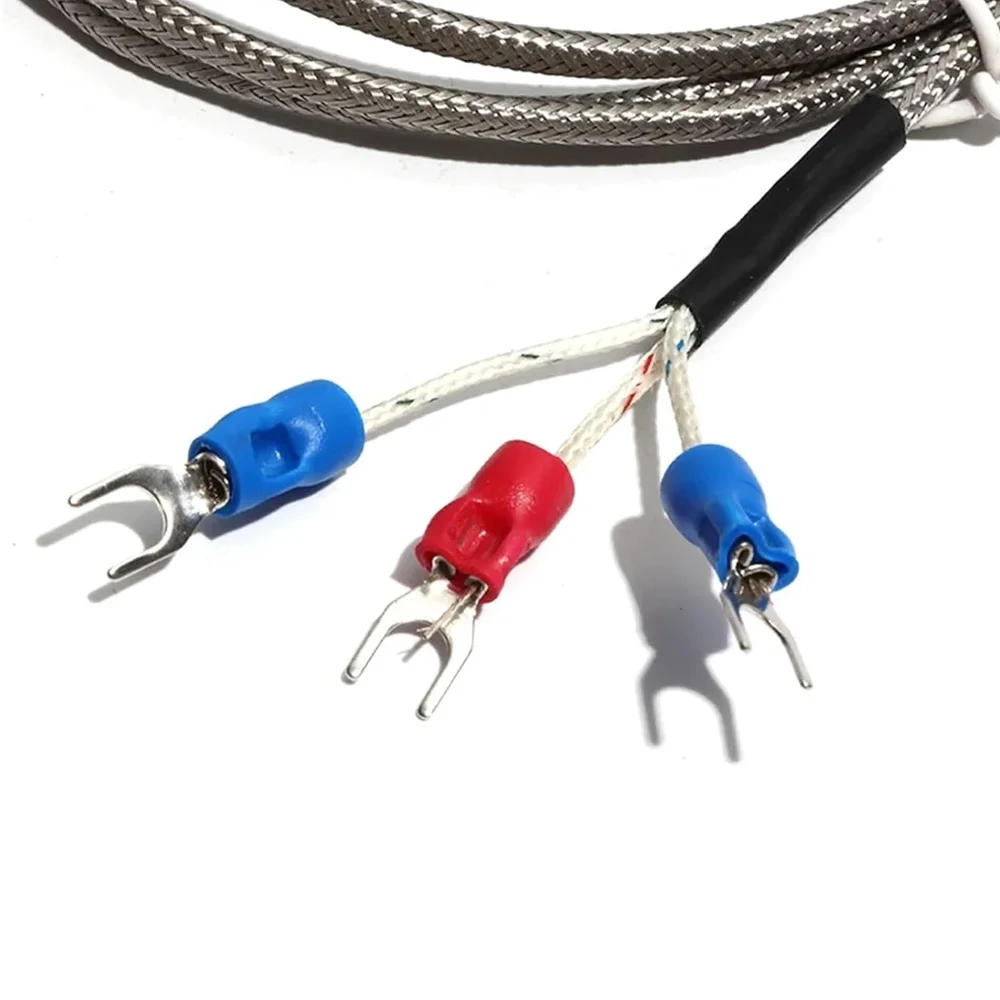

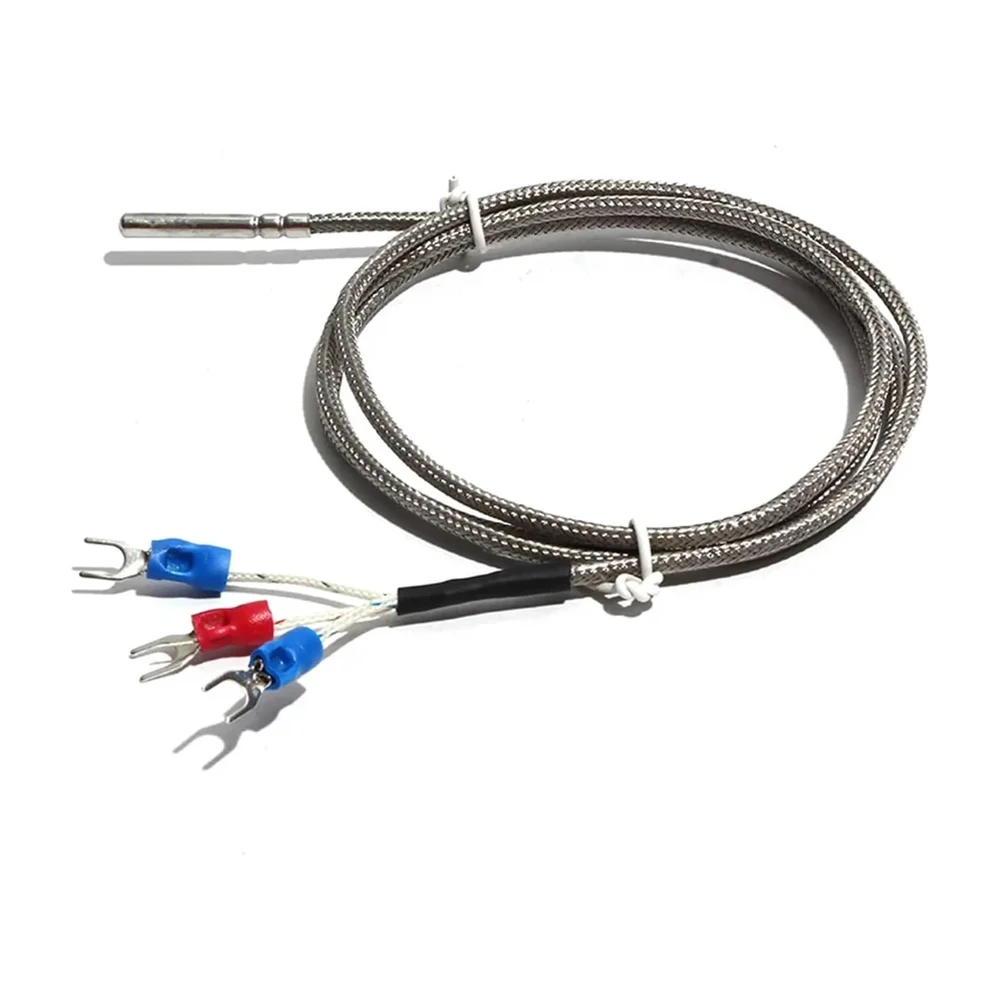

PT100 B-class 0.3 Precision Temperature Sensor 4x30mm Probe w/ 1.5m Cable

Name: PT100 B-class 0.3 Precision Temperature Sensor 4x30mm Probe w/ 1.5m Cable
Brand: Generic
SKU: SENS-3792
Price: 359.00 INR
Availability: OutOfStock

₹359.00 (Inclusive of all taxes)

Out of Stock

This PT100 RTD probe is a Class B (F0.3) precision temperature sensor with a 4x30mm stainless steel tip and a 1.5m shielded cable, designed for stable, high-accuracy measurements from -50°C to +200°C in industrial process control, HVAC, and laboratory applications.

Features

PT100 Platinum RTD with IEC 60751 Class B (F0.3) accuracy for reliable temperature measurement.
Durable SUS304 stainless steel probe (4mm diameter x 30mm length) for robust performance in harsh environments.
1.5-meter FEP-insulated, shielded 4-wire cable enables precise resistance measurement and noise immunity.
Wide operating temperature range from -50°C to +200°C suitable for industrial and laboratory use.
4-wire configuration minimizes lead resistance errors for superior measurement accuracy.

Out of stock

Get Notified When Available

Description

This sensor utilizes a platinum Resistance Temperature Detector (RTD) element, where resistance changes predictably with temperature according to the IEC 60751 standard. The 4-wire connection scheme is critical for high-precision applications, as it allows the measurement system to compensate for and eliminate errors caused by lead wire resistance, ensuring the reported value reflects only the temperature at the probe tip.

Encased in a SUS304 stainless steel sheath, the probe is designed for durability in demanding environments involving moisture, vibration, and a variety of media including air, liquids, and semi-solids. The attached cable features FEP insulation and a stainless steel braided shield, providing excellent chemical resistance, mechanical protection, and protection against electromagnetic interference for stable signal transmission over the 1.5-meter length.

Key Features

High-precision PT100 sensing element compliant with IEC/DIN EN 60751 standard.
Class B (F0.3) accuracy rating ensures reliable performance for industrial-grade applications.
Robust SUS304 stainless steel probe construction for corrosion resistance and long-term durability.
Four-wire configuration provides true resistance measurement by eliminating lead wire errors.
FEP-insulated and shielded cable offers excellent environmental protection and noise immunity.
Wide operational range from -50°C to +200°C covers most process monitoring needs.
Optimized thermal mass for a fast response time to temperature changes.
High insulation resistance maintains signal integrity and measurement stability.

Applications

Precision temperature monitoring in industrial process control loops and PLC systems.
Liquid temperature measurement in chemical processing, HVAC, and water treatment systems.
Environmental chamber and laboratory equipment calibration and verification.
Temperature sensing in food processing, packaging, and storage applications.
Integration into custom data acquisition (DAQ) systems for research and development.

Technical Specifications

Sensor Type	PT100 RTD
Standard	IEC/DIN EN 60751
Accuracy Class	Class B (F0.3)
Nominal Resistance	100 Ω at 0°C
Temperature Coefficient (Alpha)	3850 ppm/K
Temperature Range	-50°C to +200°C
Probe Dimensions	4 mm diameter x 30 mm length
Probe Material	SUS304 Stainless Steel
Cable Type	FEP Insulation with Stainless Steel Shielding
Wire Configuration	4-wire
Measuring Current	0.3–1.0 mA
Cable Length	1.5 m
Approx. Weight	50 g

Frequently Asked Questions

What is the difference between Class A and Class B accuracy for this PT100 sensor?

This sensor is rated Class B (F0.3) per the IEC 60751 standard. Class B sensors have a wider tolerance than Class A, typically ±(0.3 + 0.005|t|)°C, where |t| is the absolute temperature in °C. It is suitable for most industrial applications where high precision is required but the extreme accuracy of Class A is not necessary, offering an optimized performance-to-cost ratio.

Why does this sensor use a 4-wire configuration instead of 2 or 3 wires?

The 4-wire configuration is used for high-precision resistance measurement. Two wires carry a constant known excitation current to the RTD, while the other two wires measure the voltage drop directly across the RTD element itself. This method eliminates measurement errors caused by the resistance of the lead wires and connections, which is critical for accurate temperature readings, especially over longer cable runs.

What type of readout or transmitter do I need to use with this PT100 probe?

You will need a temperature transmitter, RTD input module, or data acquisition device specifically designed for 4-wire PT100 sensors. The device must provide a stable, low-current excitation (typically 0.3-1.0 mA) and perform a 4-wire resistance measurement. Many industrial PLCs, process controllers, and laboratory meters have compatible inputs. Ensure your device is configured for a PT100 sensor with a 3850 ppm/K temperature coefficient.

Can this sensor be used for measuring liquid temperatures?

Yes, the SUS304 stainless steel probe is corrosion-resistant and fully sealed, making it suitable for immersion in many liquids, including water, oils, and non-aggressive chemicals. Ensure the liquid is within the specified temperature range of -50°C to 200°C and is chemically compatible with stainless steel. For pressurized systems, verify the probe's pressure rating if available.
