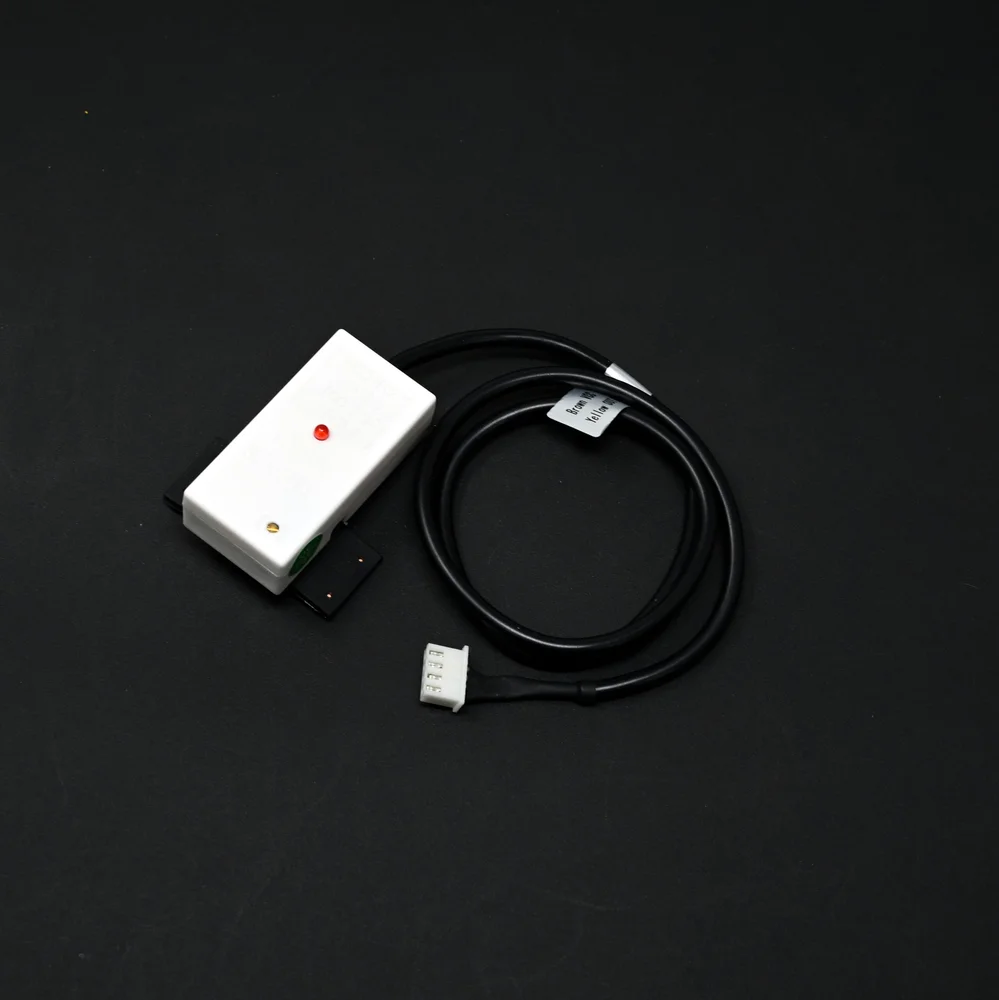

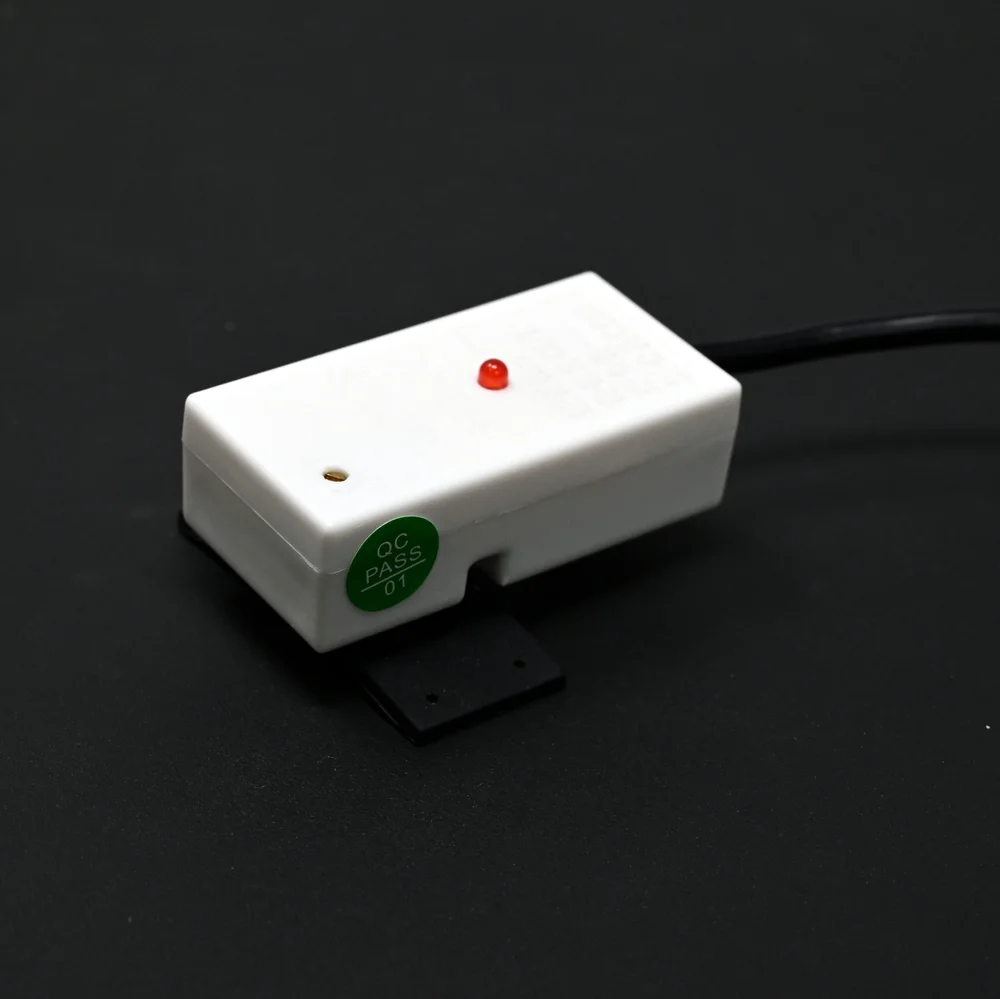

Pro-Range XKC-Y28-RS485 Non-Contact Liquid Level Sensor - DC 5-12V, IP67 Waterproof
The Pro-Range XKC-Y28-RS485 is a non-contact liquid level sensor designed for industrial monitoring applications. Operating on a 5-12V DC supply and communicating via RS485, it provides reliable level detection through non-metallic container walls, making it suitable for corrosive or sensitive liquids.
Features
- Non-contact capacitive sensing through container walls
- RS485 Modbus communication for industrial network integration
- IP67 waterproof rating for harsh or washdown environments
- Wide 5-12V DC operating voltage range
- Adjustable sensitivity for optimal detection across different materials
Out of stock
The Pro-Range XKC-Y28-RS485 utilizes a capacitive sensing principle to detect liquid levels without physical contact with the medium. This makes it ideal for monitoring corrosive, viscous, or sterile liquids contained within non-metallic vessels such as plastic, glass, or ceramic tanks. The sensor’s electronics are sealed to an IP67 standard, ensuring protection against dust ingress and temporary immersion.
Output is provided via a robust RS485 interface, supporting standard Modbus RTU protocol for seamless integration into PLCs, SCADA systems, and industrial data acquisition units. The device features a wide operating voltage range and user-adjustable sensitivity, allowing for precise calibration based on container wall thickness and material dielectric properties.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 14 × 10 × 3 cm |
