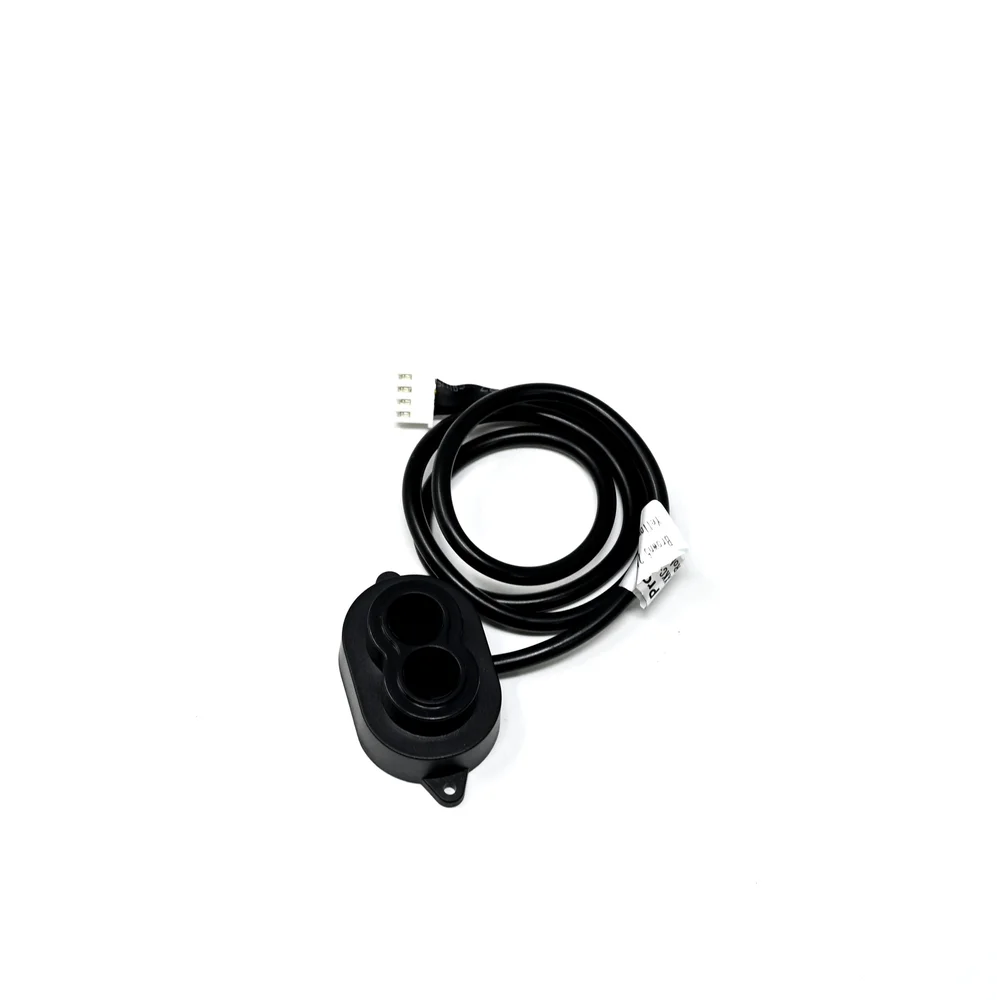

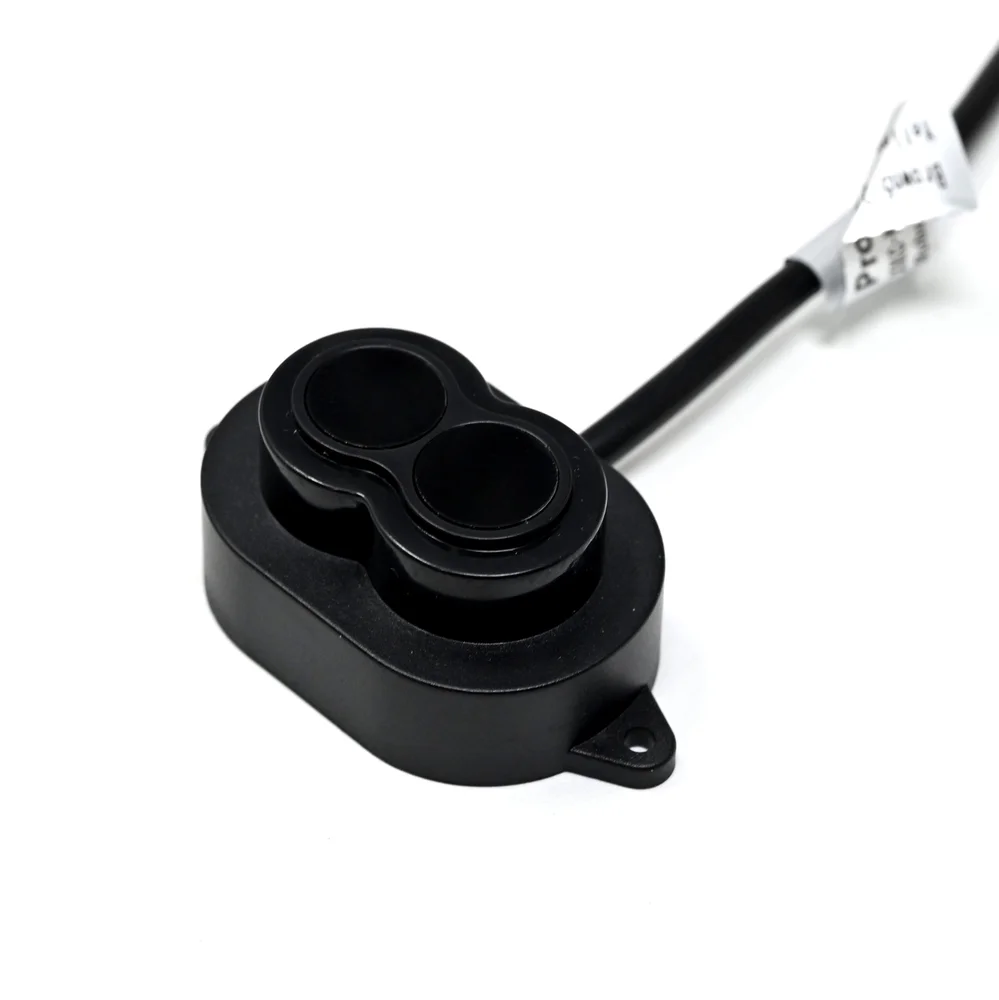

Pro-Range XKC-KL800-M(RELAY) Laser Ranging Sensor - 5-24V DC, Relay Output
The Pro-Range XKC-KL800-M(RELAY) is a diffuse reflection laser ranging sensor with a built-in relay output, designed for industrial automation and control systems operating on a wide 5-24V DC supply. It provides millimeter-level accuracy for precise object detection, positioning, and distance measurement tasks.
Features
- Wide operating voltage range from 5V to 24V DC for flexible system integration.
- Built-in relay output for direct control of alarms, actuators, or machinery.
- Features concealed threaded fixation for secure and adjustable mounting.
- Multi-layer filter cover design enhances resistance to ambient light interference.
- Compact form factor (approx. 14 x 10 x 3 cm) for installation in space-constrained environments.
Out of stock
The Pro-Range XKC-KL800-M(RELAY) employs advanced laser triangulation or time-of-flight (ToF) principles to deliver precise, non-contact distance measurements. Its diffuse reflection sensing method allows for reliable detection of objects with varying surface properties, making it suitable for complex industrial environments.
Engineered for robustness, the sensor’s multi-layer filter design minimizes interference from ambient light and other optical noise sources, ensuring stable signal output. The integrated relay provides a straightforward digital interface for triggering events based on preset distance thresholds, simplifying integration into PLCs, microcontroller systems (like Arduino or Raspberry Pi), and standalone automation controls.
Additional Information
| Weight | 0.025 kg |
|---|---|
| Dimensions | 14 × 10 × 3 cm |
