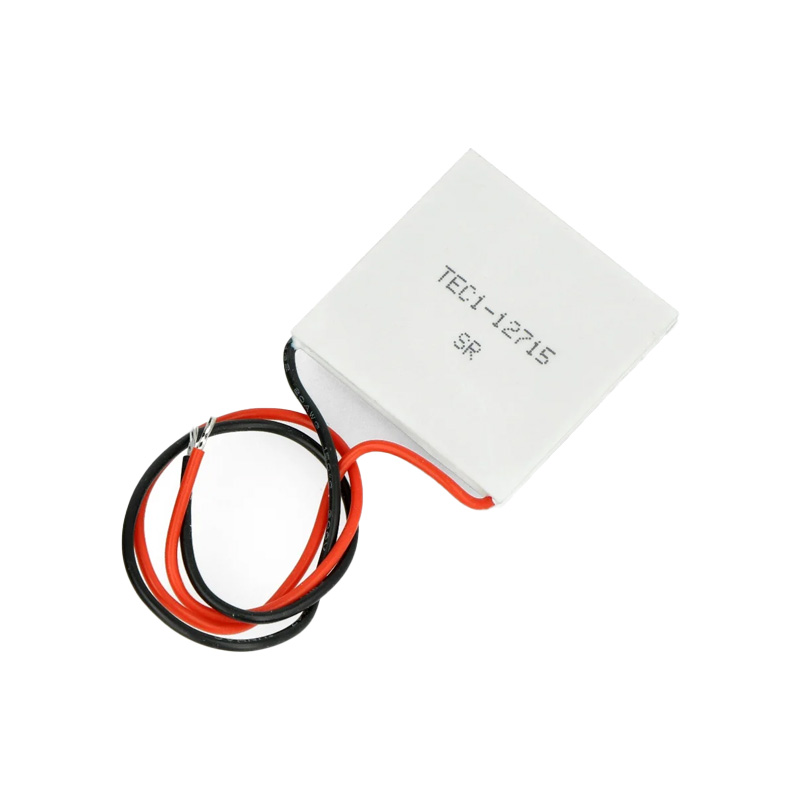

Pro-Range TEC1-12715 40x40mm Thermoelectric Cooler Module - 15.8V, 15A, 129W Cooling
The Pro-Range TEC1-12715 is a high-power 40x40mm Peltier module delivering 129W of cooling capacity at 15.8V DC. It is engineered for solid-state temperature control in industrial cooling systems, electronic enclosures, and precision thermal management applications.
Features
- High 129W maximum cooling capacity for demanding thermal loads.
- Operates at 15.8V DC with a 15A current rating for robust performance.
- Compact 40mm x 40mm x 3.2mm footprint for integration into space-constrained designs.
- Maximum temperature differential (ΔTmax) of 65°C between hot and cold sides.
- Silicone-sealed construction for moisture and environmental protection.
Out of stock
The TEC1-12715 thermoelectric cooler utilizes the Peltier effect to actively pump heat from one side of the module to the other when DC power is applied. This solid-state heat transfer mechanism provides precise, reliable cooling without moving parts or refrigerants, making it ideal for applications requiring localized temperature control.
Designed for high-power scenarios, this module features a robust ceramic substrate construction and is sealed with silicone rubber to enhance durability against humidity and contaminants. Its wide operating temperature range from -55°C to +83°C allows for deployment in harsh industrial environments, laboratory equipment, and specialized cooling assemblies.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 5 × 5 × 1 cm |
