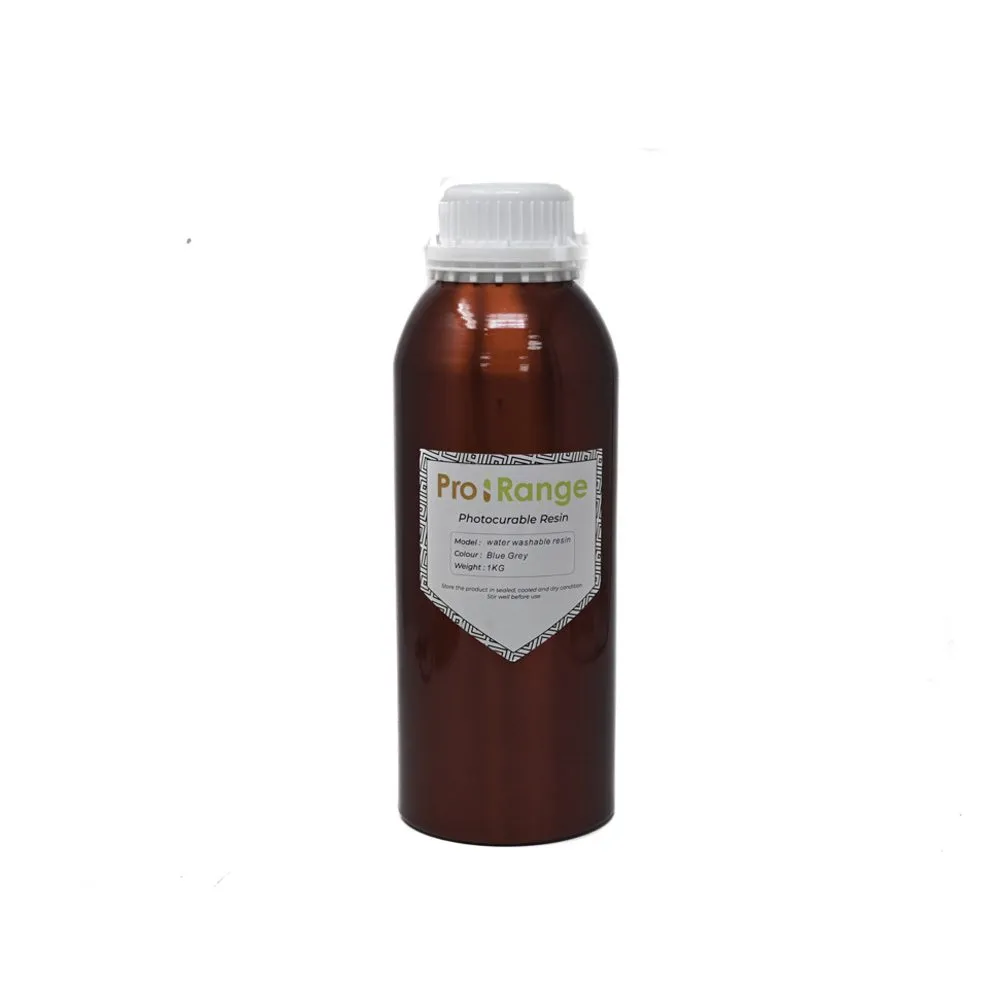

Pro-Range Standard Water Washable Resin 1kg Blue Gray

₹2,539.00 (Inclusive of all taxes)
Out of Stock

Pro-Range Standard Water Washable Resin offers ABS-like mechanical strength and impact resistance, facilitating easy post-processing with water instead of harsh chemicals. This high-quality LCD light-curing resin is perfect for durable prototypes and functional parts requiring robust performance.

Features

  • Water washable for easy, alcohol-free post-processing and simplified cleanup.
  • Exhibits ABS-like mechanical strength and high impact resistance (15-16 J/m).
  • Ideal for functional prototypes, durable models, and robust assembly components.
  • Compatible with 395-405nm LCD/DLP 3D printers, ensuring broad applicability.

Out of stock

Description

The Pro-Range Standard Water Washable Resin is an advanced LCD light-curing photopolymer designed to streamline post-processing while delivering robust mechanical properties. Engineered to mimic traditional ABS plastic, this resin provides exceptional tensile strength (29 MPa), flexural strength (48 MPa), and impact resistance, making it suitable for demanding applications. Its formulation allows for parts that can withstand moderate stress and integrate well into functional assemblies.

This resin significantly simplifies cleanup by eliminating the need for isopropyl alcohol; parts can be effectively rinsed with water. It cures efficiently under 395-405 nm UV light, ensuring high detail resolution and dimensional accuracy. Once cured, components exhibit a hard, durable surface with a Shore D hardness of 79-81, ideal for prototypes, verification models, and parts designed for light mechanical interaction, including those requiring self-tapping screws.

Key Features

  • Water-soluble post-processing, requiring only a simple water rinse.
  • Offers high mechanical strength and impact resistance, similar to ABS plastic.
  • Produces durable parts with high tensile (29MPa) and flexural (48MPa) strength.
  • Suitable for UV or sun exposure post-curing for optimal surface finish and hardness.
  • Excellent dimensional stability for accurate and consistent part reproduction.
  • Low odor formulation contributes to a more comfortable printing environment.
  • Viscosity of 109 mPa-s for smooth and reliable printing.

Applications

  • Functional prototyping and design verification models.
  • Creation of durable end-use parts and hobbyist models.
  • Assembly components requiring robust mechanical properties.
  • Precision models with high detail and smooth surface finish.
  • Parts requiring resistance to moderate impact and stress.

Technical Specifications

ColorBlue Gray
Material TypeStandard Water Washable Resin
Viscosity109 mPa-s
Wavelength395-405 nm
Tensile Strength29 MPa
Impact Strength15-16 J/m
Hardness79-81 Shore D
Bottle Volume1 kg

Frequently Asked Questions

What are the recommended print settings for Pro-Range Water Washable Resin?

Optimal print settings vary by printer model, but typically start with a 2-3 second exposure for 0.05mm layers on monochrome LCDs, or 6-8 seconds on RGB screens. Bottom layers usually require 6-8 times the normal exposure. Ensure lift speed is slow to minimize layer separation issues for best results. (49 words)

How should parts printed with this resin be post-processed?

After printing, immediately rinse parts thoroughly with tap water to remove uncured resin. Use a soft brush for intricate details. Once clean, allow parts to air dry completely before proceeding with UV post-curing in a dedicated curing station or under direct sunlight for optimal mechanical properties and surface hardness. (49 words)

Can this resin be used for outdoor applications?

While Pro-Range Water Washable Resin offers good mechanical strength, it is generally recommended for indoor use. Prolonged direct UV exposure or harsh environmental conditions may degrade its properties over time, potentially leading to brittleness or discoloration. For outdoor applications, consider specialized engineering resins with enhanced UV stability. (49 words)

What are the benefits of using a water washable resin over standard resins?

Water washable resins significantly simplify the post-processing workflow by allowing cleanup with plain water instead of isopropyl alcohol. This reduces material costs, minimizes harsh chemical fumes, and simplifies the disposal of waste liquids, making it a more convenient and environmentally friendlier option for many users and workshops. (49 words)

Package Includes

  • 1x Pro-Range Standard Water Washable Resin 1kg (Blue Gray)

Additional Information

Weight 1 kg
Dimensions 26 × 9 × 9 cm
