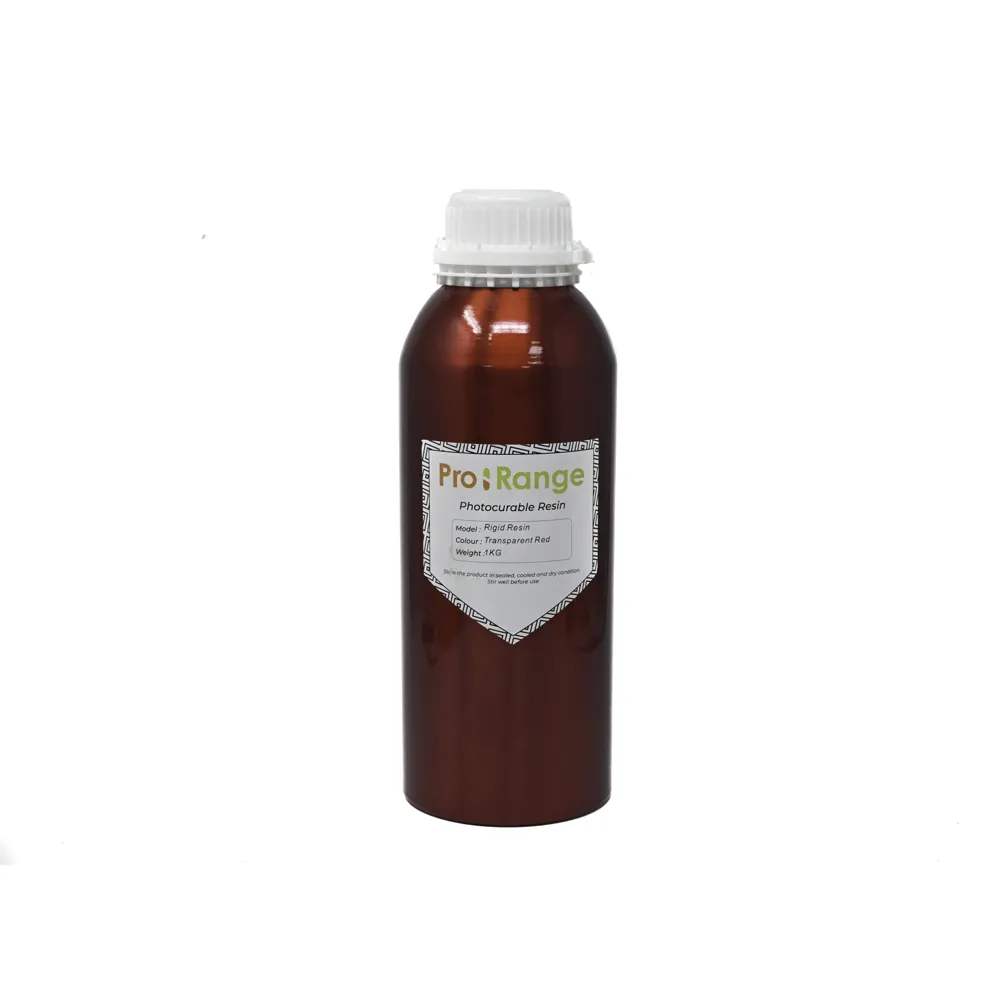

Pro-Range Rigid Resin - Transparent Red, 1kg
Pro-Range Rigid Resin - Transparent Red, 1kg - Image 2
SKU: 3DMR-1140
📋 GST Invoice Available

Pro-Range Rigid Resin - Transparent Red, 1kg

₹2,199.00 (Inclusive of all taxes)
Out of Stock

Pro-Range Rigid Resin is a high-performance photopolymer engineered for LCD/DLP 3D printing, delivering exceptional rigidity, durability, and high mechanical strength. This resin excels in creating stiff, functional prototypes and industrial components built to withstand demanding mechanical stress and maintain precise shape.

Features

  • Achieve exceptional rigidity and durability for demanding functional prototypes and industrial parts.
  • Engineered for high mechanical stress, offering a tensile strength of 38-43 MPa and impact resistance of 18-45 J/m.
  • Delivers superior surface hardness (73-81 Shore D) ensuring excellent wear resistance and detailed print fidelity.
  • Optimized for LCD/DLP printers, providing stable printing with a viscosity of 150-350 cps for consistent results.

Out of stock

Description

Pro-Range Rigid Resin is a cutting-edge LCD light-curing photopolymer meticulously engineered for 3D printing applications demanding superior rigidity, long-term durability, and high mechanical strength. This advanced resin is the ideal choice for creating robust, functional parts, precision prototypes, and industrial components that are subjected to significant mechanical stress and must maintain their intricate geometries under challenging operational conditions. Its formulation ensures excellent layer adhesion and structural integrity, crucial for parts that require load-bearing capabilities.

This resin delivers high-definition prints with exceptional surface quality, capturing fine details with precision. Its optimized viscosity (150-350 cps) ensures stable and consistent printing across a range of LCD/DLP machines, minimizing print failures and maximizing throughput. Post-processing involves a standard alcohol rinse followed by UV post-curing or sun exposure to achieve optimal mechanical properties, including a heat distortion temperature of 57-75°C and low water absorption, making it suitable for a variety of demanding environments.

Key Features

  • Exceptional Rigidity: Formulated for producing stiff, unyielding parts ideal for structural and load-bearing applications.
  • High Tensile Strength: Achieves 38MPa to 43MPa, ensuring robust performance in high-stress environments.
  • Superior Impact Resistance: Withstands significant mechanical shocks (18J/m to 45J/m), enhancing part longevity.
  • Excellent Surface Hardness: Boasts a Shore D hardness of 73-81, providing strong wear resistance and fine detail preservation.
  • Optimized Viscosity: Stable 150cps to 350cps ensures reliable print flow, precise layer formation, and reduced print failures.
  • Reliable Post-Processing: Requires standard alcohol rinse and effective UV post-curing (395-405nm) for optimal mechanical properties.
  • Elevated Heat Distortion Temperature: Parts achieve 57°C to 75°C HDT after UV post-treatment, suitable for moderate thermal exposure.
  • Low Water Absorption: Exhibits a minimal water absorption rate of 0.41%, ensuring dimensional stability in humid conditions.

Applications

  • Functional prototypes requiring high stiffness and durability.
  • Mechanical parts, jigs, and fixtures in industrial settings.
  • Housings, enclosures, and connectors that demand structural integrity.
  • Engineering models for form, fit, and function testing.
  • Components needing resistance to moderate mechanical stress and wear.

Technical Specifications

Material TypeRigid Photopolymer Resin
ColorTransparent Red
Net Weight1 kg
Wavelength Range395-405 nm
Viscosity150-350 mPa·s (cps)
Tensile Strength38-43 MPa
Impact Strength18-45 J/m
Hardness73-81 Shore D
Heat Distortion Temp (HDT)57-75°C (post-cured)
Water Absorption0.41%

Frequently Asked Questions

What are the recommended environmental conditions for printing with Pro-Range Rigid Resin?

For optimal results, maintain an ambient temperature between 20-30°C (68-86°F) during printing. Ensure the resin is thoroughly mixed before use and avoid direct exposure to sunlight or strong ambient UV light in the print area to prevent premature curing.

What post-curing process is necessary for this resin to achieve its stated mechanical properties?

After an alcohol wash, parts should be post-cured using a 395-405nm UV light source. Curing times typically range from 30 to 60 minutes, depending on the UV intensity and part geometry, to fully develop maximum hardness and strength and ensure optimal performance.

How does Pro-Range Rigid Resin contribute to functional prototype durability?

Its high tensile strength (38-43 MPa) and significant impact resistance (18-45 J/m) make it ideal for functional prototypes. These properties ensure printed parts can withstand mechanical stress and repeated use, extending their lifespan in rigorous testing environments and demanding applications.

Can this resin be used for highly detailed models, despite its "rigid" classification?

Yes, Pro-Range Rigid Resin delivers high-definition prints with excellent surface quality, capable of capturing intricate details. While primarily rigid, its formulation ensures precise reproduction of fine features, making it suitable for complex engineering models and parts requiring both stiffness and aesthetic fidelity.

Package Includes

  • 1x Pro-Range Rigid Resin - 1kg Transparent Red Bottle

Additional Information

Weight 1 kg
Dimensions 26 × 9 × 9 cm
