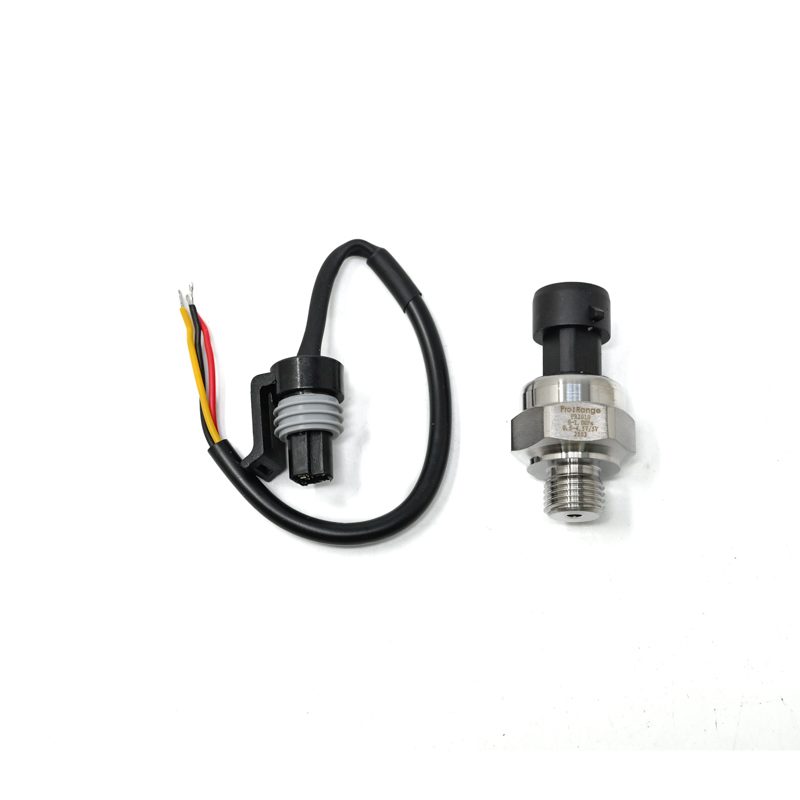

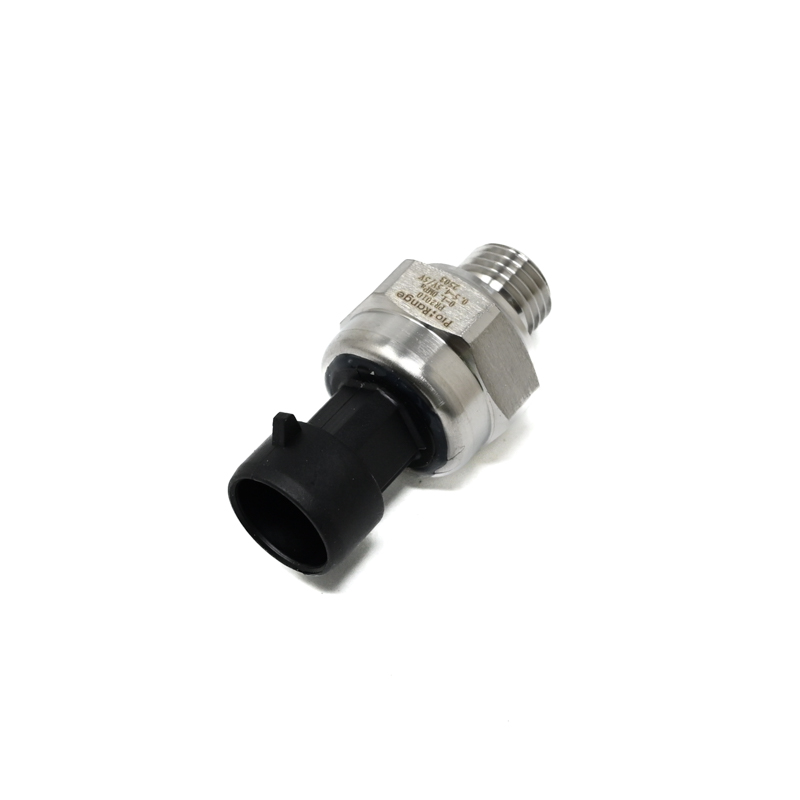

Pro-Range PR2010 Pressure Transducer 0-1 MPa, 0.5-4.5V Analog Output - G1/4" Thread
The Pro-Range PR2010 is a 0-1 MPa pressure transducer delivering a 0.5-4.5V analog output signal via a standard G1/4″ threaded connection, designed for direct integration into industrial PLCs, data acquisition systems, and process control loops requiring reliable pressure monitoring.
Features
- 0 to 1 MPa (0 to ~145 psi) pressure measurement range
- 0.5 to 4.5V ratiometric analog voltage output signal
- Standard G1/4″ male thread for direct process line installation
- High accuracy and long-term stability for industrial environments
- Compact, robust housing suitable for hydraulic and pneumatic systems
Out of stock
The PR2010 pressure transducer utilizes a high-stability sensing element, typically a piezoresistive strain gauge, to convert applied pressure into a precise, linear analog voltage signal. The 0.5-4.5V output provides a ratiometric signal that is easily interfaced with microcontrollers, PLC analog input modules, or data loggers for real-time system monitoring and control.
Engineered for durability, the transducer’s construction ensures reliable performance in demanding applications such as hydraulic pressure monitoring, pneumatic control systems, pump testing, and industrial automation. Its G1/4″ threaded port allows for secure, leak-resistant installation into standard fluid and gas lines.
Additional Information
| Weight | 0.098 kg |
|---|---|
| Dimensions | 8 × 4 × 4 cm |
