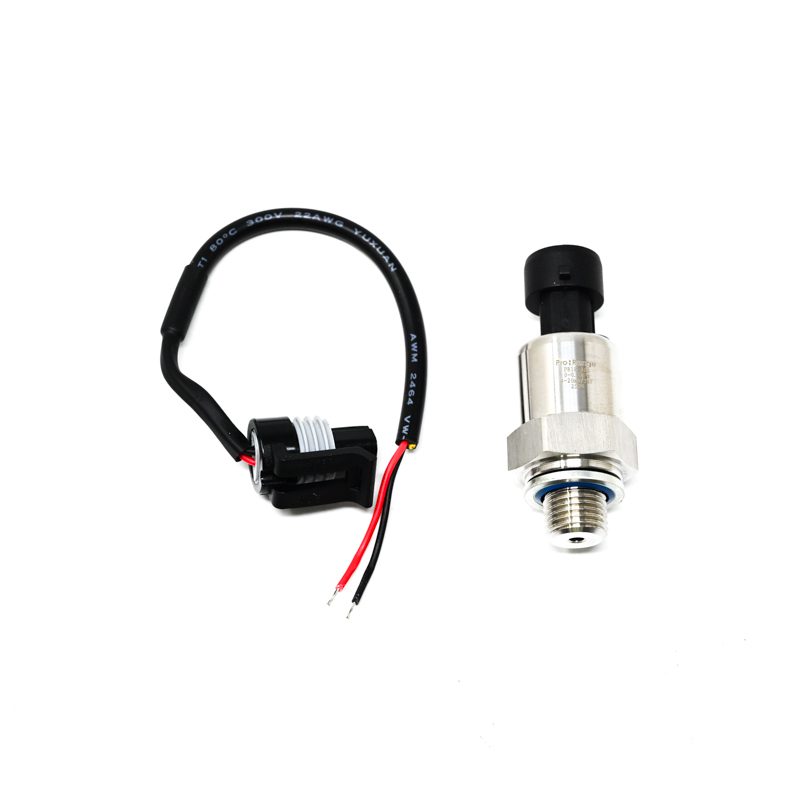

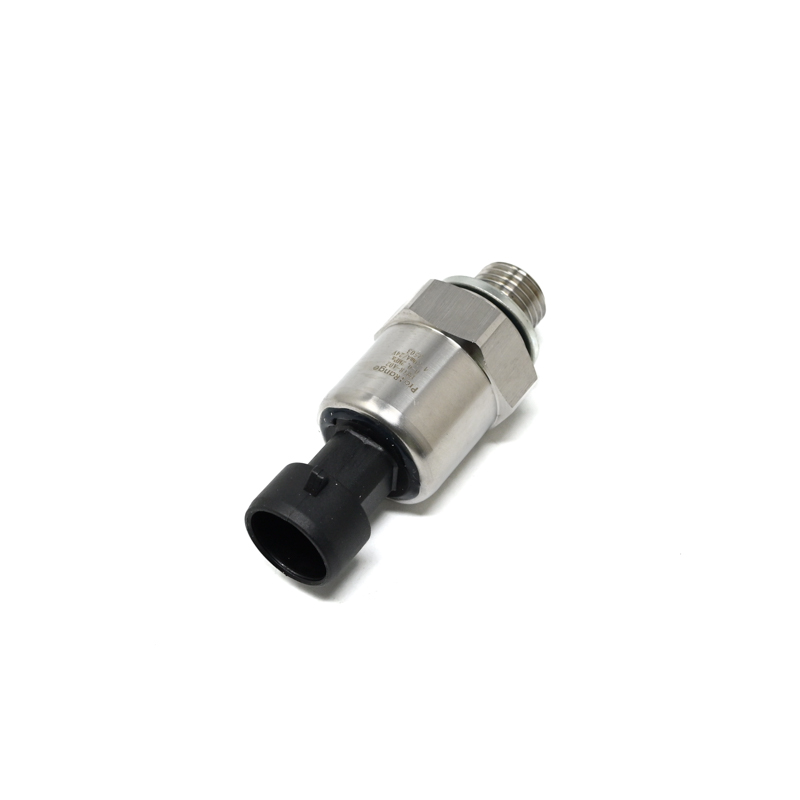

Pro-Range PR18-A002 0-0.2 MPa Pressure Transducer - 4-20mA Output, G1/4" Thread
The Pro-Range PR18-A002 is a low-pressure transducer with a 0-0.2 MPa range, delivering a stable 4-20mA current loop output for reliable signal transmission in industrial PLCs, SCADA, and process control systems. Its G1/4″ threaded connection ensures secure integration into fluid and pneumatic lines.
Features
- Precision low-pressure measurement range of 0 to 0.2 MPa.
- Industry-standard 4-20mA two-wire current loop output for noise-immune, long-distance transmission.
- G1/4″ male thread for direct, leak-proof installation into fluid systems.
- Robust construction designed for durability in HVAC, process automation, and fluid monitoring applications.
- Compact form factor with a shipping weight of approximately 98 grams.
Out of stock
The Pro-Range PR18-A002 pressure transducer operates on the principle of a piezoresistive sensing element, where applied pressure causes a measurable change in resistance. This change is conditioned by internal circuitry to produce a proportional 4-20mA analog output, providing excellent immunity to electrical noise and voltage drop over extended cable runs. The device is engineered for stable performance in environments typical of industrial monitoring and control.
Housed in a compact, robust casing with a G1/4″ threaded port, the transducer is built for direct integration into pneumatic and hydraulic systems. Its design prioritizes long-term accuracy and reliability, making it suitable for continuous operation in applications requiring precise low-pressure feedback.
Additional Information
| Weight | 0.098 kg |
|---|---|
| Dimensions | 8 × 4 × 4 cm |
