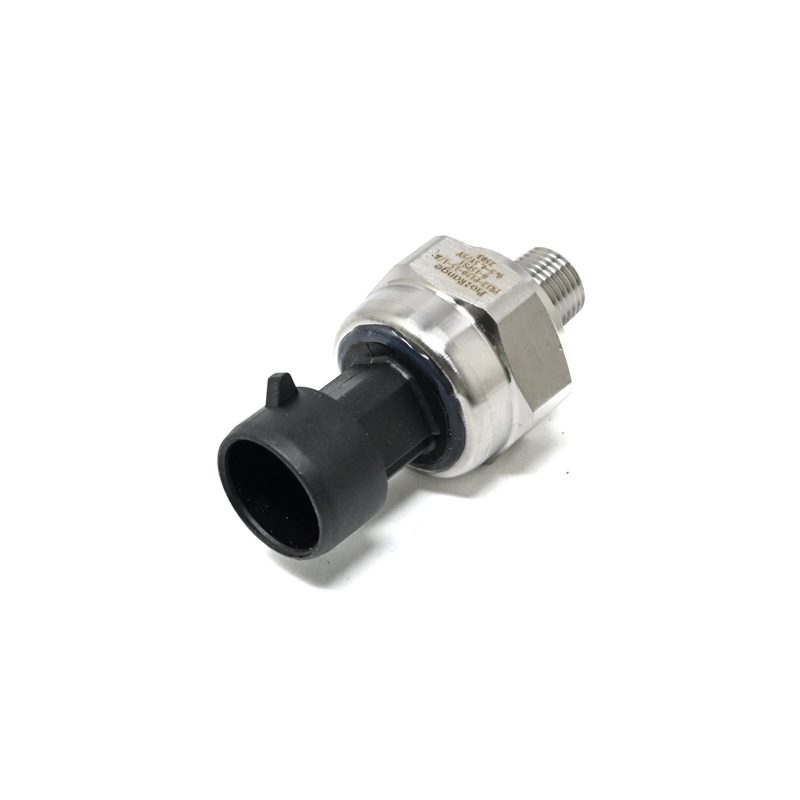

Pro-Range PR12-P120-15-1/8 Pressure Transducer 0-15 psi, 0.5-4.5V Output, NPT1/8 Thread
The Pro-Range PR12-P120-15-1/8 is a low-pressure transducer delivering a 0.5–4.5V analog output from a 5V DC supply, designed for integration with PLCs, data loggers, and microcontroller systems (Arduino, Raspberry Pi) requiring precise air or gas pressure monitoring up to 15 psi.
Features
- 0–15 psi gauge pressure measurement range with high accuracy.
- 0.5–4.5V ratiometric analog output compatible with 5V ADC systems.
- Compact NPT1/8 male threaded port for secure inline installation.
- Stable performance for HVAC, pneumatic control, and low-pressure process monitoring.
Out of stock
The PR12-P120-15-1/8 pressure transducer utilizes a piezoresistive sensing element to provide a linear voltage output proportional to the applied pressure. Its ratiometric output (0.5V at 0 psi, 4.5V at 15 psi) simplifies signal conditioning and ensures compatibility with common 5V logic microcontrollers and industrial analog input modules.
Constructed with a robust housing and a standard NPT1/8 pressure port, this sensor is engineered for reliable operation in air and compatible gas media within its specified pressure limits. The compact form factor allows for installation in space-constrained applications where precise low-pressure monitoring is critical.
Additional Information
| Weight | 0.098 kg |
|---|---|
| Dimensions | 8 × 4 × 4 cm |
