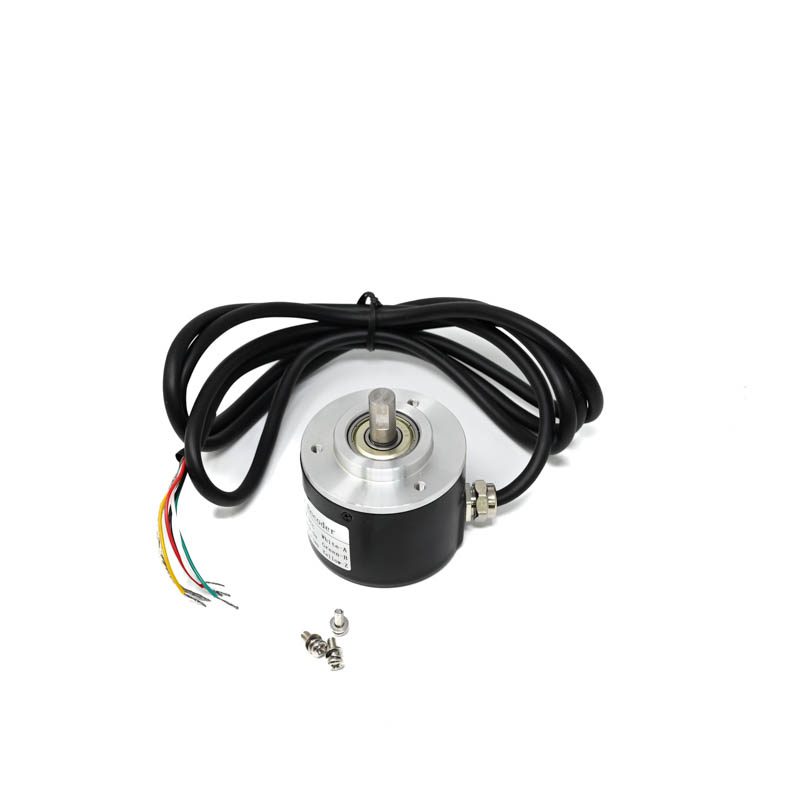

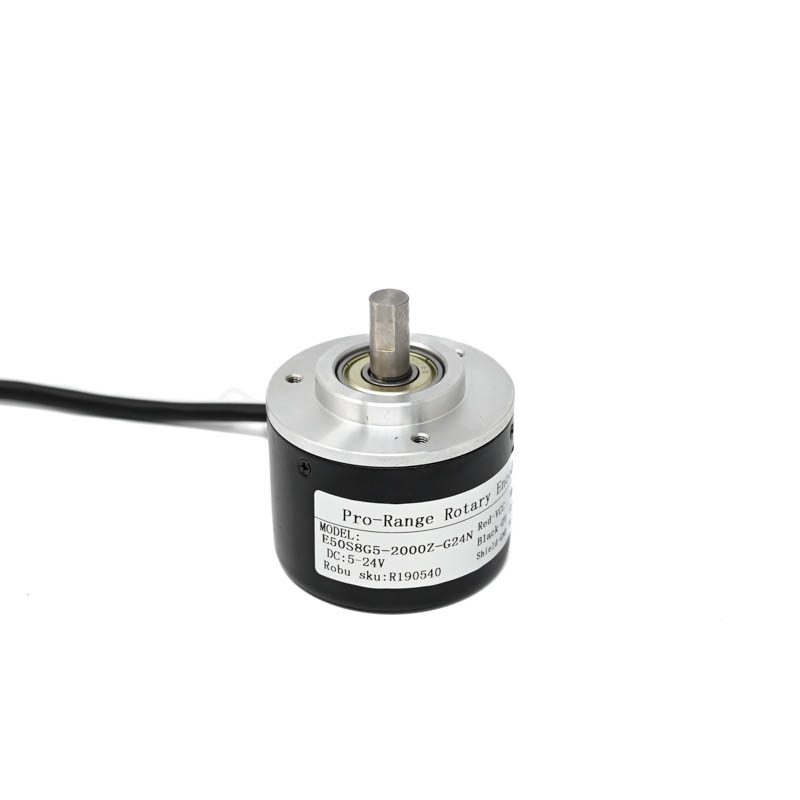

Pro-Range E50S8G5-2000Z-G24N Rotary Incremental Encoder - 50mm, Photoelectric, ABZ 3 Channels, 2000 PPR
The Pro-Range E50S8G5-2000Z-G24N is a 50mm photoelectric incremental encoder delivering 2000 PPR resolution via ABZ three-channel output. It operates on a wide 5-24V DC range for compatibility with industrial PLCs, servo drives, and motion control systems.
Features
- High-resolution 2000 pulses per revolution (PPR) for precise angular position and speed feedback.
- ABZ three-channel quadrature output (A, B, Z index) for enhanced signal reliability and direction detection.
- Wide operating voltage range of 5-24V DC for versatile integration into 5V logic and 24V industrial systems.
- Compact 50mm diameter housing with a 6mm x 15mm shaft for easy mechanical mounting.
- Photoelectric sensing principle ensures high accuracy and long-term reliability with minimal mechanical wear.
Out of stock
The E50S8G5-2000Z-G24N encoder utilizes a photoelectric sensing principle, where an LED light source and phototransistor detect interruptions in a coded disk to generate precise digital pulses. This method provides high accuracy, repeatability, and excellent resistance to electrical noise, making it suitable for demanding industrial environments.
Designed for integration into servo motors, CNC machinery, and automated positioning systems, the encoder outputs standard ABZ signals. The A and B channels provide quadrature output for determining direction and incremental position, while the Z channel delivers a single index pulse per revolution for absolute reference. Its wide 5-24V DC operating range ensures compatibility with both low-voltage microcontroller boards (Arduino, Raspberry Pi with level shifters) and standard 24V industrial control panels.
Additional Information
| Weight | 0.205 kg |
|---|---|
| Dimensions | 8 × 8.5 × 6.5 cm |
