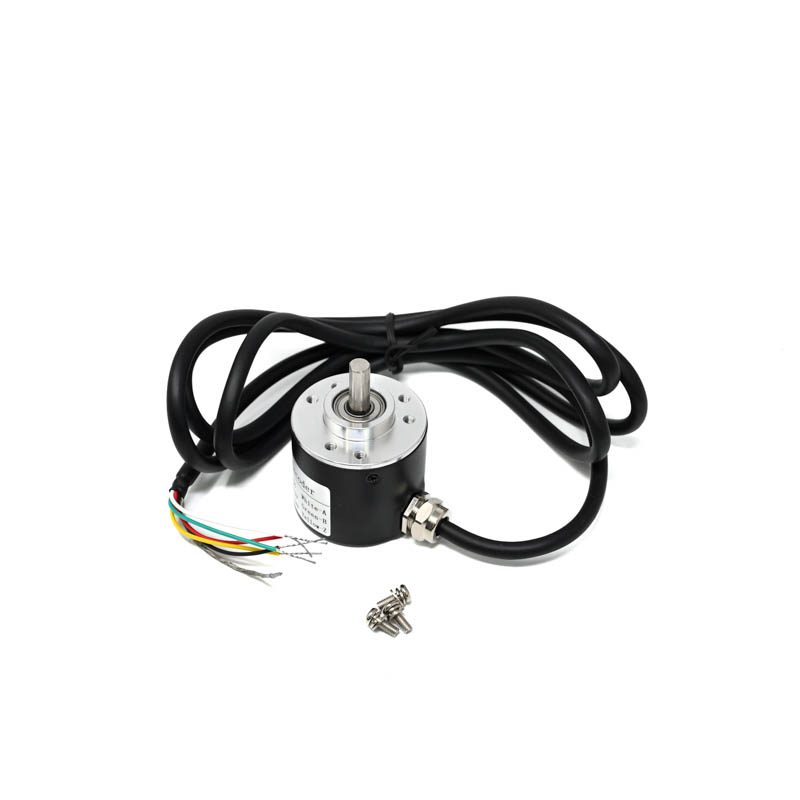

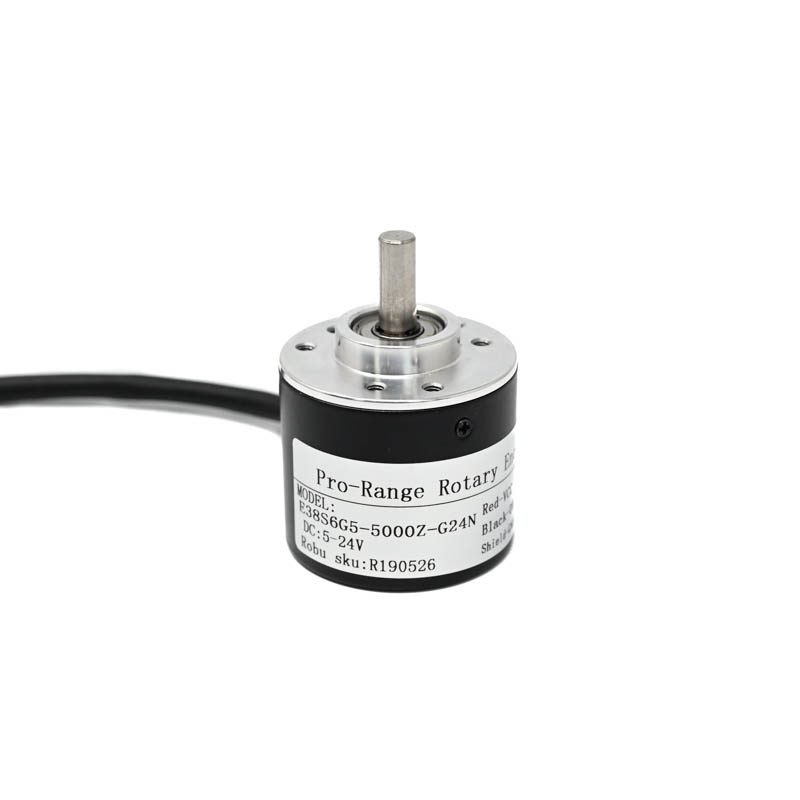

Pro-Range E38S6G5-5000Z-G24N Rotary Incremental Encoder - 38mm, Photoelectric, ABZ 3 Channels, 5000 PPR
The Pro-Range E38S6G5-5000Z-G24N is a high-resolution, photoelectric incremental encoder delivering 5000 PPR via ABZ quadrature output. Designed for industrial automation, it operates on a wide 5-24V DC supply and features a compact 38mm diameter housing for easy integration into servo systems, CNC machines, and PLC-based motion control.
Features
- High-resolution 5000 pulses per revolution (PPR) for precise angular position and speed feedback.
- Photoelectric sensing with ABZ quadrature output (A, B, Z index) for reliable direction and reference detection.
- Wide operating voltage range of 5 to 24V DC, compatible with industrial PLC and microcontroller logic levels.
- Compact 38mm diameter industrial-grade housing designed for robust performance in demanding environments.
- High-speed capability with a rated speed of 6000 RPM for dynamic motion control applications.
Out of stock
The Pro-Range E38S6G5-5000Z-G24N utilizes an optical disc and photoelectric sensor array to generate precise incremental quadrature signals. Its three-channel output (A, B, Z) provides both relative position data and a once-per-revolution index pulse, enabling accurate homing and absolute position tracking within systems.
Engineered for industrial durability, the encoder’s contactless optical sensing ensures long-term reliability without mechanical wear. The wide 5-24V DC input range offers flexibility for integration with various industrial controllers, servo drives, and embedded systems like Arduino or Raspberry Pi with appropriate interface circuits.
Additional Information
| Weight | 0.142 kg |
|---|---|
| Dimensions | 8.5 × 8.5 × 6.5 cm |
