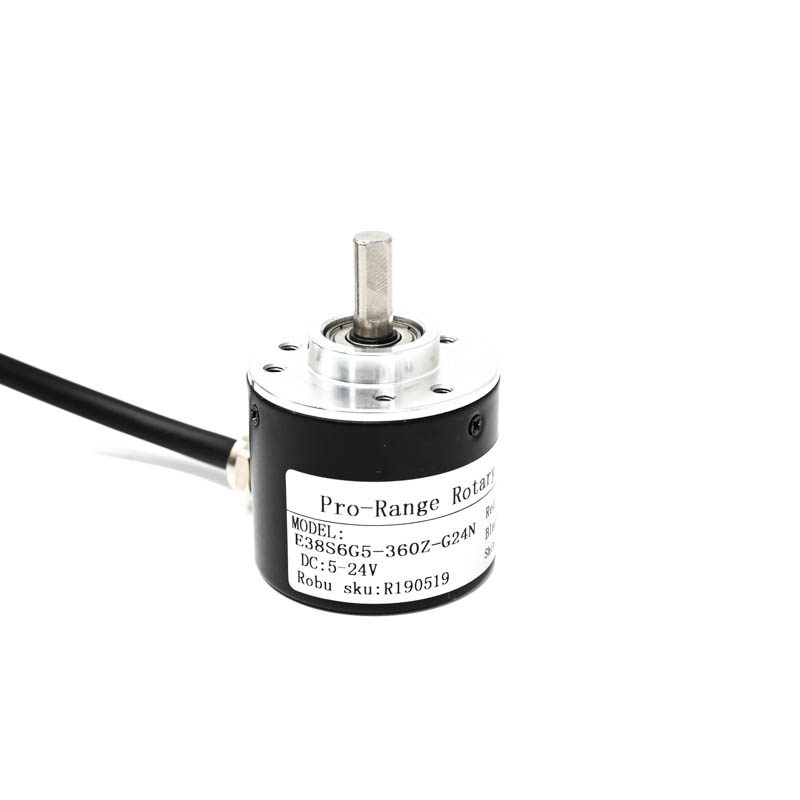

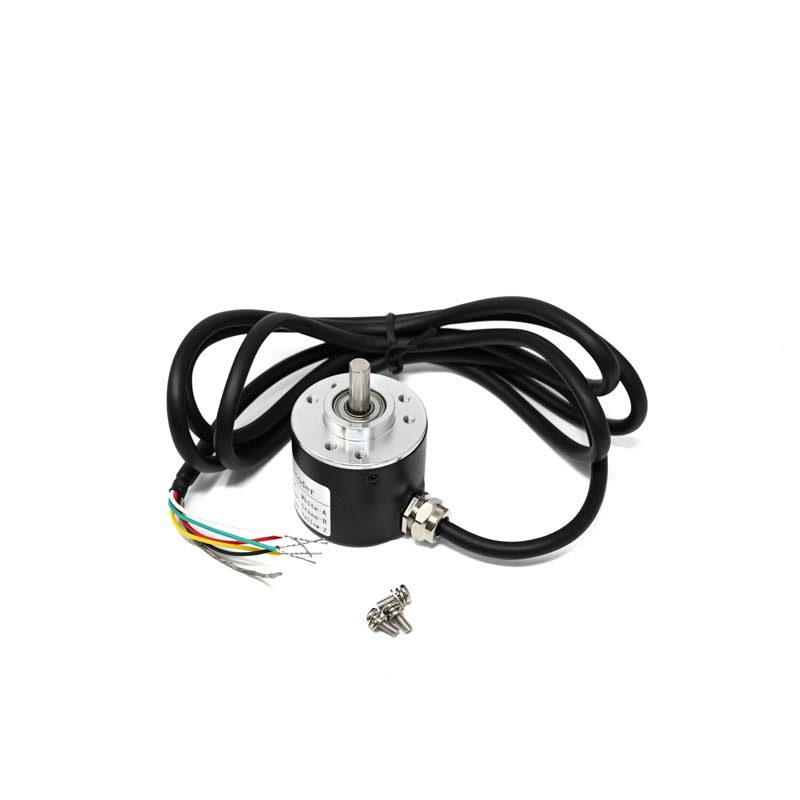

Pro-Range E38S6G5-360Z-G24N Rotary Incremental Encoder - 38mm Photoelectric, ABZ 3 Channels, 360 PPR

The encoder is designed to operate from 5V to 24V DC. This wide range allows direct compatibility with common microcontroller logic levels (5V) as well as standard industrial control voltages (12V or 24V). Ensure your power supply and interface circuitry are within this specified range for reliable operation.

The A and B channels provide quadrature outputs: two square waves 90 degrees out of phase. The sequence of these pulses determines the direction of rotation. The Z channel outputs a single pulse per full revolution, serving as an index or reference ('home') position. These open-collector outputs typically require pull-up resistors to your system's logic voltage.

The encoder is rated for operation at speeds between 3000 and 6000 RPM. Exceeding the maximum rated speed may lead to signal degradation or sensor failure. For applications near the upper limit, consult the detailed datasheet for specific performance curves and derating guidelines.

Yes, the Pro-Range designation and photoelectric sensing principle indicate a design intended for industrial use. The contactless optical operation is resistant to dust and wear compared to mechanical encoders. For specific ingress protection (IP) ratings or temperature extremes, please refer to the manufacturer's full datasheet available in the product attachments.

Yes, it can be interfaced with development boards like Arduino or Raspberry Pi. Due to its 5-24V operating range, it can connect directly to 5V Arduino pins. For 3.3V logic boards like Raspberry Pi, level-shifting or careful voltage division on the input pins is required. You will need to write code to count pulses and interpret the quadrature signals for position and speed calculation.
