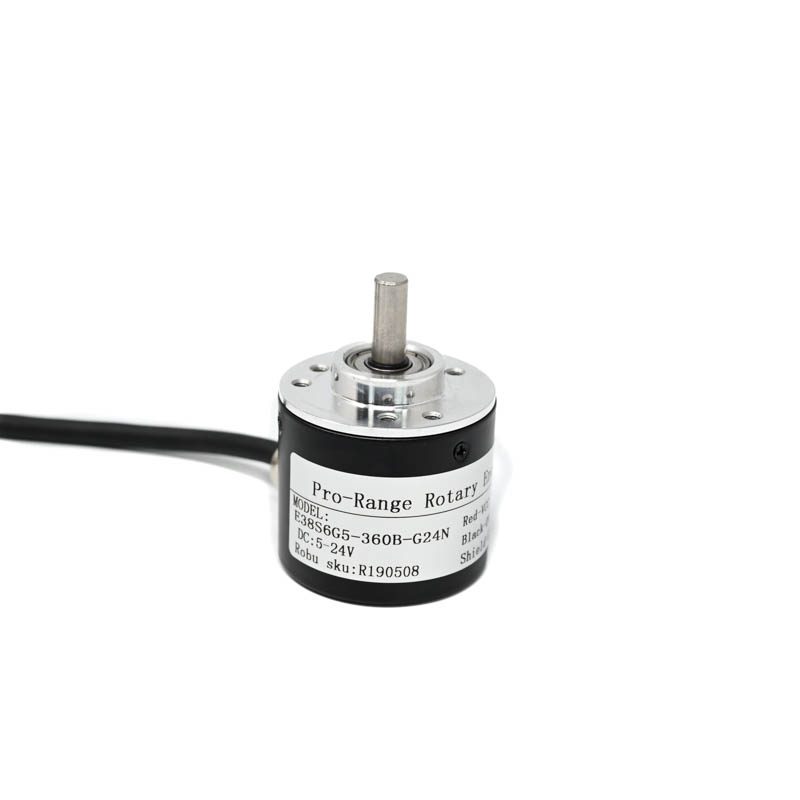

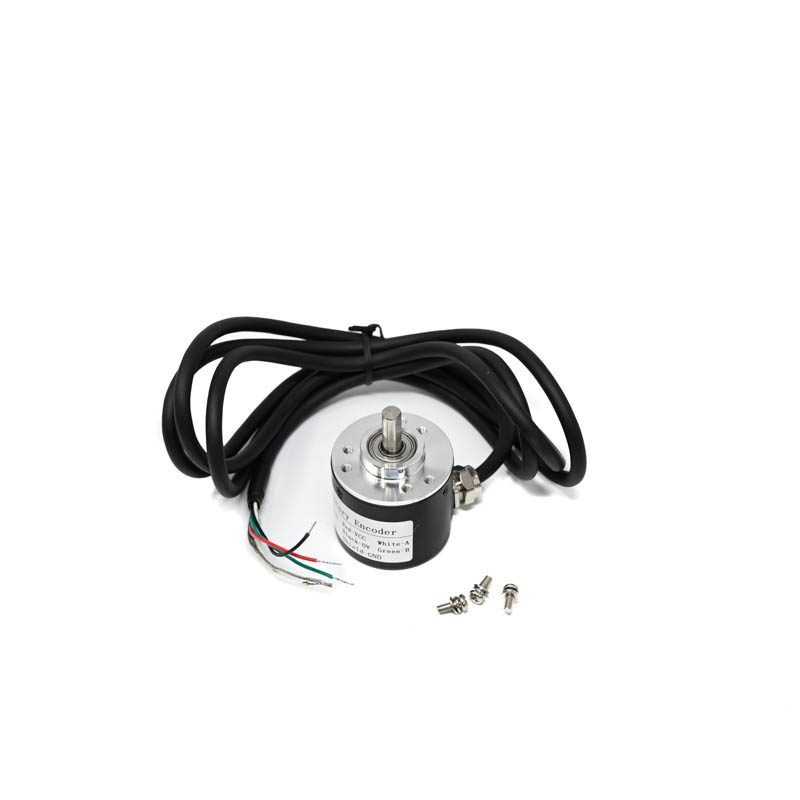

Pro-Range E38S6G5-360B-G24N Rotary Incremental Encoder - 38mm, Photoelectric, AB 2 Channels, 360 PPR
The Pro-Range E38S6G5-360B-G24N is a 38mm diameter rotary incremental encoder featuring photoelectric sensing and AB quadrature output. It delivers 360 pulses per revolution (PPR) for precise position and speed feedback, compatible with 5-24V DC industrial PLCs, motor controllers, and motion systems.
Features
- 360 PPR resolution for accurate position and speed measurement.
- Photoelectric sensing technology ensures reliable, non-contact signal generation.
- AB 2-channel quadrature output provides direction and position data.
- Wide 5-24V DC operating voltage range for flexible system integration.
- Compact 38mm diameter housing with 38mm PCB mounting hole pattern.
Out of stock
The E38S6G5-360B-G24N rotary incremental encoder utilizes an internal photoelectric sensing mechanism, where an LED light source and photodetector read a patterned code disk. This non-contact method provides high reliability and long operational life, generating clean quadrature signals (A and B phases) for precise angular position and rotational direction detection.
Engineered for industrial environments, the encoder operates from a wide 5-24V DC supply, supporting direct interfacing with PLCs, servo drives, and microcontroller-based systems (Arduino, Raspberry Pi with appropriate interface boards). Its robust 38mm housing is designed for secure panel mounting in space-constrained applications requiring accurate motion feedback.
Additional Information
| Weight | 0.142 kg |
|---|---|
| Dimensions | 8.5 × 8.5 × 6.5 cm |
