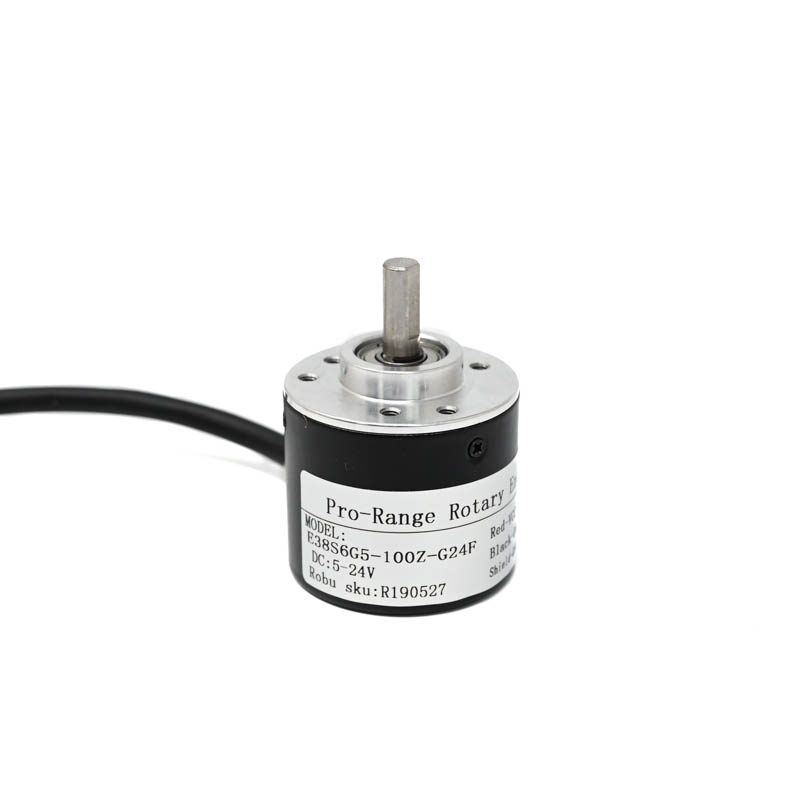

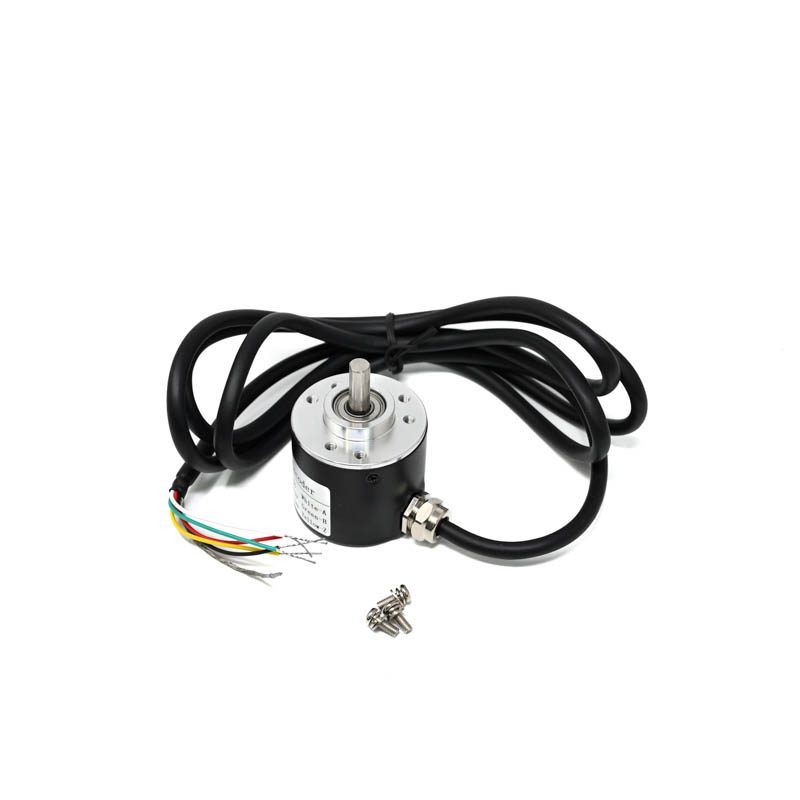

Pro-Range E38S6G5-100Z-G24F Rotary Incremental Encoder - 38mm, Photoelectric, ABZ 3 Channels, 100 PPR
The Pro-Range E38S6G5-100Z-G24F is a 38mm diameter photoelectric incremental encoder delivering 100 PPR resolution via ABZ quadrature output. Operating from a 5-24V DC supply, it provides precise position and speed feedback for integration with industrial PLCs, motion controllers, and robotics systems.
Features
- High-resolution 100 pulses per revolution (PPR) for precise angular measurement.
- Photoelectric sensing technology ensures reliable, contactless operation and long service life.
- ABZ three-channel output (A, B quadrature and Z index) for direction detection and reference positioning.
- Wide 5-24V DC operating voltage range compatible with industrial and embedded logic levels.
- Compact 38mm diameter housing with universal mounting for easy mechanical integration.
Out of stock
The Pro-Range E38S6G5-100Z-G24F encoder employs a photoelectric sensing principle, where an internal LED light source and photodetector read a patterned code disc to generate precise digital pulses. This incremental design provides relative position feedback, with the A and B channels in quadrature enabling accurate determination of rotation direction and speed.
Engineered for industrial environments, the encoder’s robust construction ensures stable signal integrity under vibration. The integrated Z-index channel outputs a single pulse per revolution, serving as a mechanical home or reference position for system calibration and error correction in closed-loop control applications.
Additional Information
| Weight | 0.142 kg |
|---|---|
| Dimensions | 8.5 × 8.5 × 6.5 cm |
