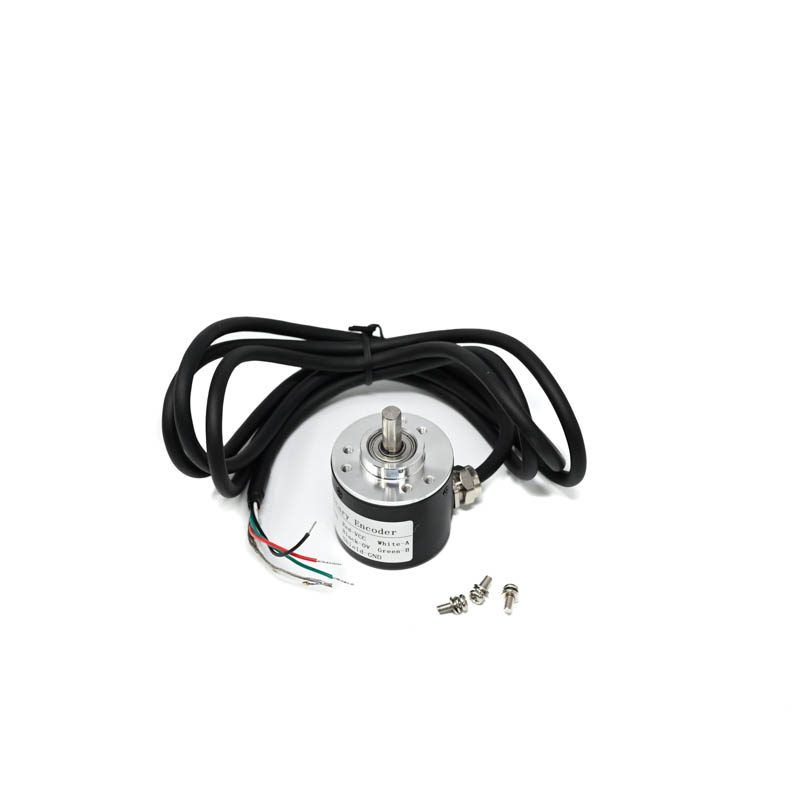

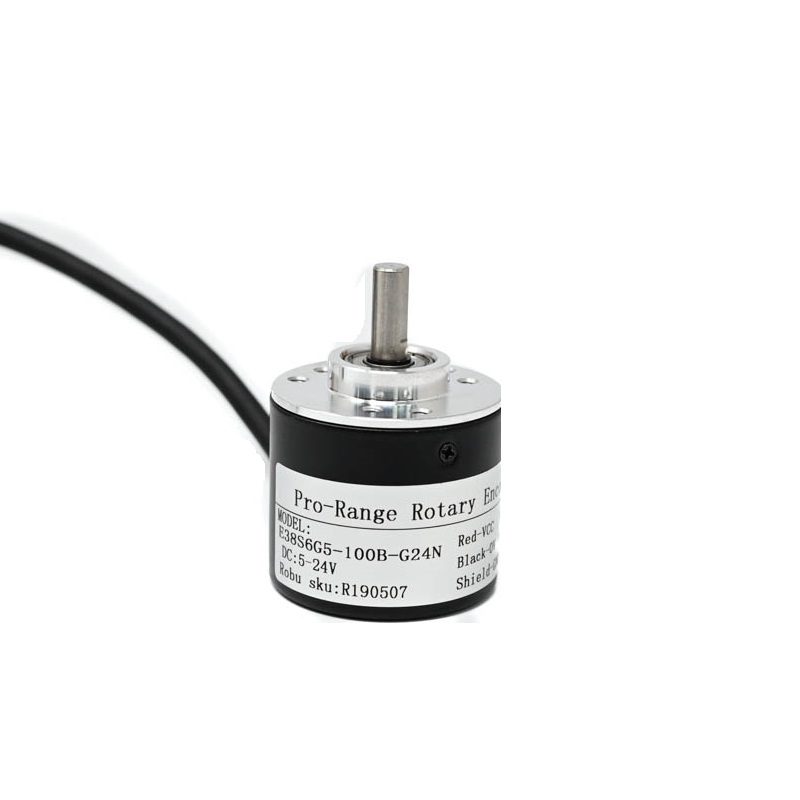

Pro-Range E38S6G5-100B-G24N Rotary Incremental Encoder - 38mm, Photoelectric, AB 2 Channels, 100 PPR

The encoder provides a standard AB 2-channel quadrature output. Channels A and B produce digital square waves with a 90-degree phase shift, allowing a connected controller to determine both the amount and direction of rotation. This output is typically compatible with 5V or 3.3V logic levels.

The encoder is designed for direct PCB mounting via a 38mm diameter hole. The unit's body fits through this hole, and it is secured using the integrated mounting features or a supplied clamp (if applicable). Ensure the shaft is properly aligned and coupled to the rotating element to avoid binding and ensure accurate pulse generation.

Yes, using quadrature decoding in your microcontroller or dedicated encoder interface chip, you can achieve 4x resolution multiplication. By counting both the rising and falling edges of both A and B channels, you can achieve an effective resolution of 400 counts per revolution for finer positional control.

While the exact specifications should be verified in the datasheet, photoelectric encoders of this type typically operate on a 5V DC supply with a low current draw, often in the range of 20-50mA. The digital outputs are designed to interface directly with standard logic families (TTL/CMOS).
