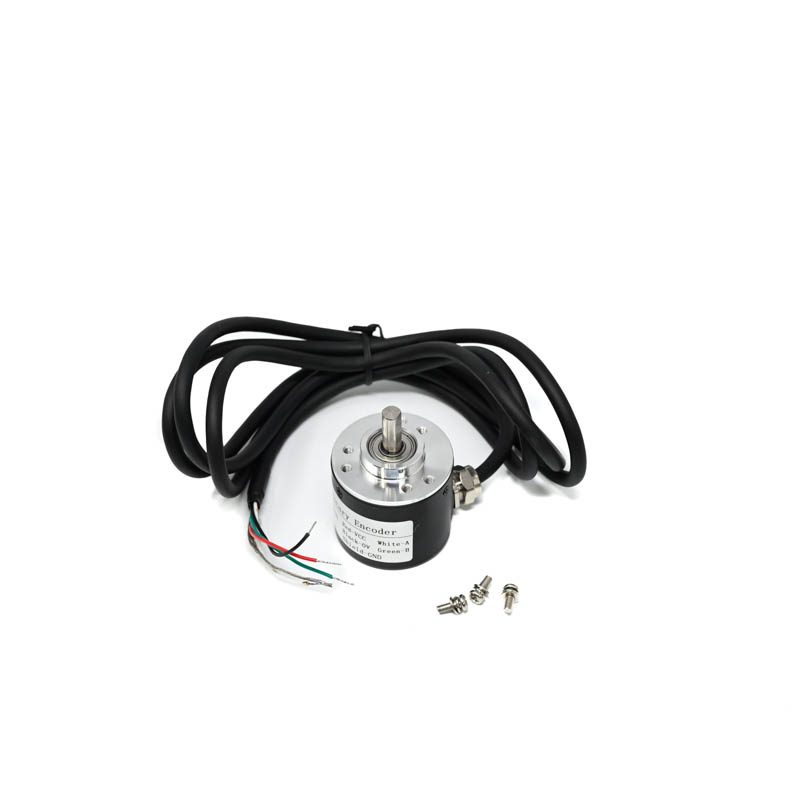

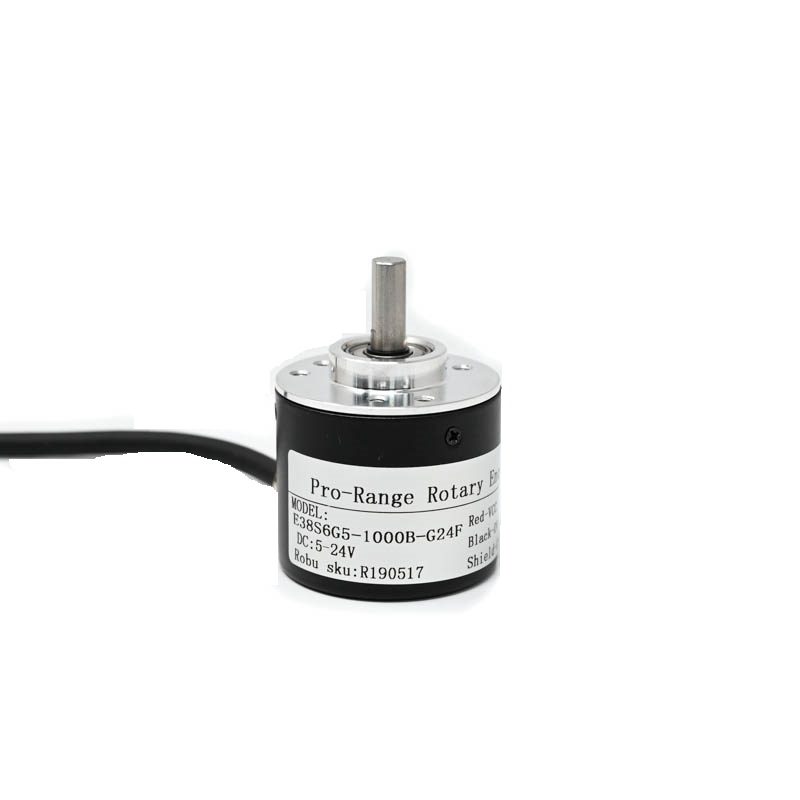

Pro-Range E38S6G5-1000B-G24F Rotary Incremental Encoder - 38mm, Photoelectric, AB 2 Channels, 1000 PPR
The Pro-Range E38S6G5-1000B-G24F is a 38mm diameter photoelectric incremental encoder delivering 1000 pulses per revolution (PPR) via AB quadrature output. Operating from a wide 5-24V DC supply, it provides precise angular position and speed feedback for integration with stepper motor drivers, servo controllers, and industrial PLCs.
Features
- High-resolution 1000 PPR (Pulses Per Revolution) for accurate angular measurement.
- Photoelectric sensing technology ensures reliable, non-contact signal generation.
- AB two-channel quadrature output for precise direction and position detection.
- Wide operating voltage range of 5V to 24V DC for flexible system integration.
- Robust 38mm diameter housing designed for demanding industrial environments.
Out of stock
The E38S6G5-1000B-G24F encoder utilizes a photoelectric sensing principle, where an internal LED light source and photodetector read a patterned code disc to generate precise digital pulses. This non-contact method ensures long-term reliability and high-speed operation up to 6000 RPM, with minimal mechanical wear.
Its AB two-channel output provides standard quadrature signals (A and B phases 90 degrees out of phase), enabling microcontrollers, PLCs, and motion controllers to determine both rotational position and direction. The encoder’s durable construction and sealed design offer protection against dust and typical industrial contaminants, supporting stable performance in automation, CNC machinery, and robotic joint feedback applications.
Additional Information
| Weight | 0.142 kg |
|---|---|
| Dimensions | 8.5 × 8.5 × 6.5 cm |
