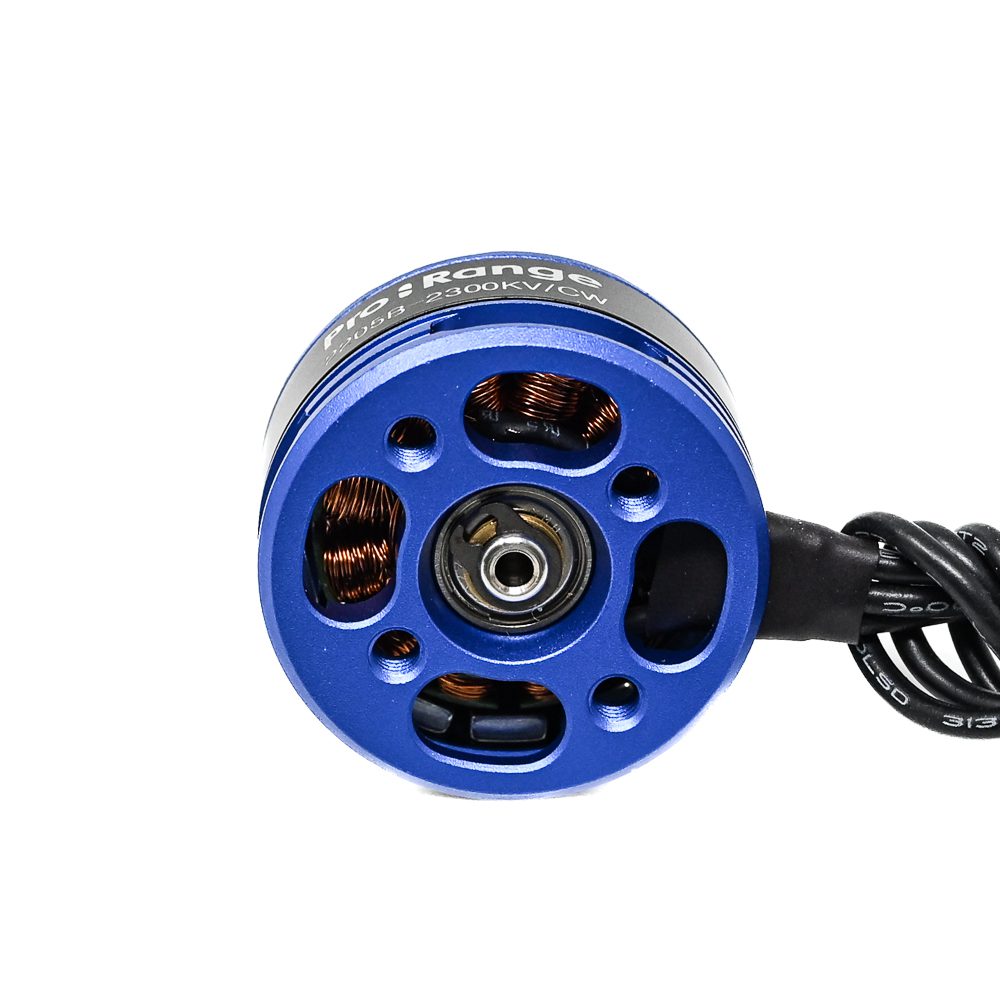

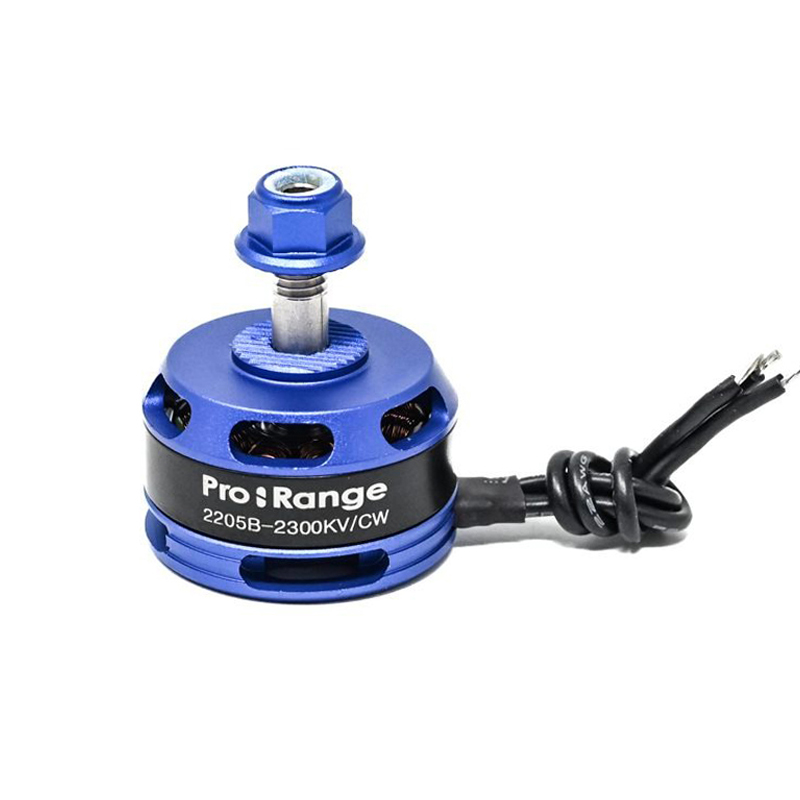

Pro-Range DX2205B 2300KV Brushless Motor - CW
The Pro-Range DX2205B-2300 CW is a high-KV brushless motor engineered for 2-4S LiPo FPV racing and freestyle drones, delivering high RPM output and efficient thrust for aggressive flight maneuvers.
Features
- High 2300KV rating for powerful RPM and thrust output.
- Optimized for 2-4S LiPo battery systems (7.4V – 14.8V).
- Durable 2205 stator size (22mm diameter, 5mm height) with 5mm shaft.
- Precision-balanced construction minimizes vibration for stable flight.

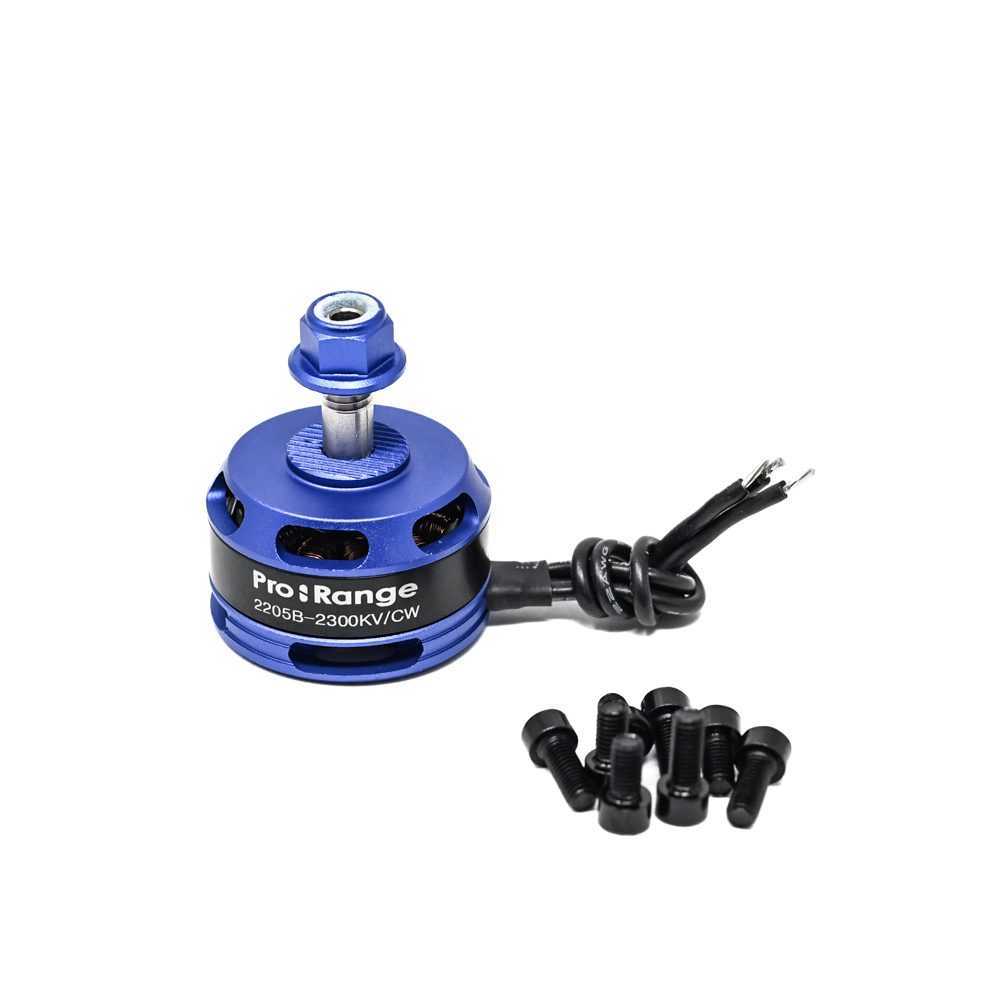

- Includes flange lock nut to prevent loosening during high-vibration operation.
Out of stock
The Pro-Range DX2205B-2300 CW brushless motor is built around a 2205 stator framework, providing a robust platform for high-RPM applications. Its 2300KV rating ensures rapid throttle response and strong thrust when paired with compatible propellers like 5045 or 6045 tri-blades, making it ideal for technical racing and dynamic freestyle flying.
Engineered for durability, the motor features high-temperature windings, a 5mm hardened steel shaft, and a 12N14P magnetic configuration for smooth torque delivery. The integrated flange lock nut secures the propeller against high-frequency vibrations common in aggressive flight, enhancing reliability. With a peak efficiency current of 2.3A and a maximum thrust of 870g under 14.8V, it offers an optimized performance-to-weight ratio for competitive builds.
Additional Information
| Weight | 0.065 kg |
|---|---|
| Dimensions | 8 × 4 × 4 cm |
