SKU: DRFC-0904
📋 GST Invoice Available

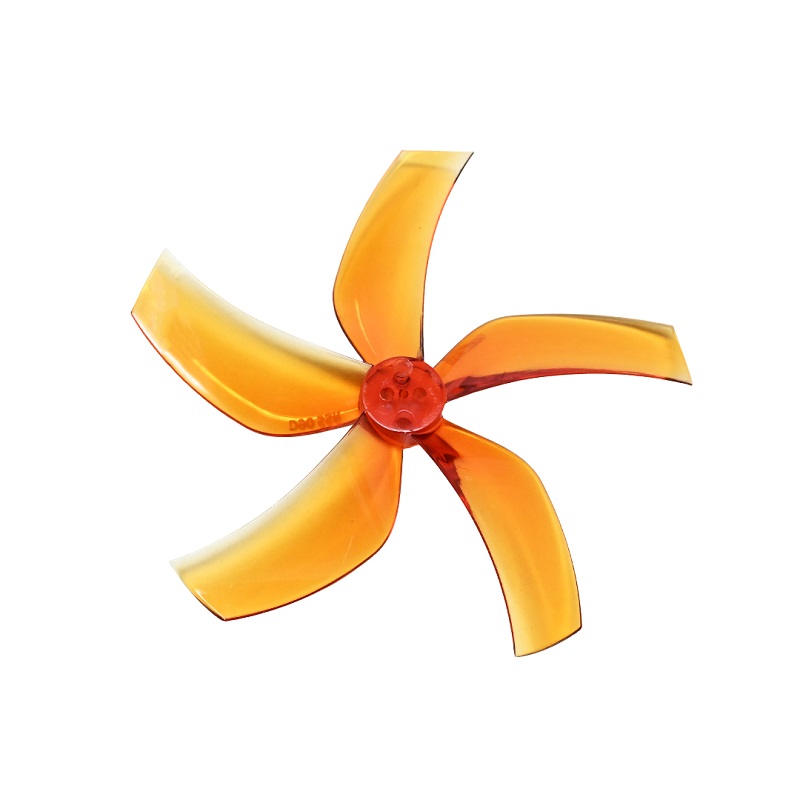

Pro-Range D90S Ducted PC 5-Blade Propeller 90mm 1.5mm 2CW+2CCW

₹299.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range D90S Ducted PC 5-Blade Propeller, with a 90mm diameter and 1.5mm T-mount, is engineered for cinewhoops and FPV freestyle drones, delivering stable and efficient thrust for precise flight control and smooth maneuvers.

Features

  • Optimized 5-blade design for stable, quiet flight and enhanced thrust efficiency.
  • Durable polycarbonate (PC) construction ensures superior impact resistance.
  • 90mm diameter with 3.3-inch pitch, ideal for cinewhoops and FPV freestyle builds.
  • 1.5mm T-mount compatibility specifically for 2006-size brushless motors.
  • Includes two CW and two CCW propellers for complete drone setup.

Out of stock

Description

The Pro-Range D90S Ducted Propeller is a high-performance, 5-blade component meticulously engineered for cinewhoops and FPV drones requiring exceptional precision and smooth flight characteristics. Crafted from robust polycarbonate (PC) material, these propellers offer superior impact resistance and maintains structural integrity even under demanding flight conditions, contributing to overall flight stability.

Featuring an advanced aerodynamic design, the D90S ensures remarkably quiet operation alongside efficient thrust generation and superior balance during high-speed maneuvers. Its 1.5mm T-mount center hole is perfectly sized for 2006-series brushless motors, providing optimal power delivery for drones with takeoff weights up to 280g. This combination of durability, efficiency, and aerodynamic refinement makes the D90S-5 an excellent choice for pilots focused on responsive and controlled aerial performance.

Key Features

  • Optimized 5-blade design for enhanced static thrust and smoother airflow.
  • Constructed from high-grade Polycarbonate (PC) for superior durability and impact resistance.
  • Precision-balanced profile minimizes vibrations and acoustic noise during flight.
  • Designed with a 1.5mm T-mount for secure and direct attachment to compatible motors.
  • Efficient 3.3-inch pitch ratio for responsive acceleration and precise control.
  • Ideal for demanding cinewhoop and FPV freestyle flight scenarios.

Applications

  • FPV Cinewhoop Builds: For stable and precise indoor/outdoor cinematic footage.
  • FPV Freestyle Drones: Enhances control and responsiveness during acrobatic maneuvers.
  • Micro & Sub-250g Builds: Provides efficient thrust for weight-sensitive drone platforms.

Technical Specifications

TypeDucted Propeller
MaterialPolycarbonate (PC)
Blades5
Diameter90mm (3.5 inch)
Pitch3.3 inch
Center Hole1.5mm T-mount
Rotation2x CW, 2x CCW (Included)
Recommended Motor2006 (up to 1950KV)
Hub Diameter16mm
Hub Thickness5.5mm
Weight (per prop)4g
ColorWhisky

Frequently Asked Questions

What motors are compatible with the Pro-Range D90S propellers?

The D90S propellers feature a 1.5mm T-mount center hole, making them specifically designed for 2006-size brushless motors. This mounting ensures a secure and balanced connection, optimizing power transfer and overall flight efficiency for cinewhoop or freestyle drone setups.

How does the 5-blade design benefit flight performance?

The 5-blade configuration of the D90S propeller significantly enhances static thrust and improves overall control responsiveness, especially at lower RPMs. This design also contributes to a smoother, quieter flight profile, crucial for cinematic applications and precise maneuvering in confined spaces.

What is the primary material used and its advantages?

These propellers are constructed from durable polycarbonate (PC). This material choice provides exceptional impact resistance, making the D90S resilient against crashes and incidental contact. Its flexibility also helps absorb energy, reducing the likelihood of permanent deformation and ensuring a longer operational lifespan.

Are these propellers suitable for both CW and CCW motor rotations?

Yes, the Pro-Range D90S propeller package explicitly includes both CW (Clockwise) and CCW (Counter-Clockwise) variants. This ensures you have the correct rotation direction propellers for all motors on a standard quadcopter setup, facilitating balanced thrust and flight stability.

What is the recommended drone weight range for these propellers?

The D90S propellers are optimized for drones with a maximum takeoff weight of up to 280g. This makes them ideal for lightweight cinewhoop and freestyle builds where efficient thrust and precise control are paramount, ensuring optimal performance without excessive power draw.

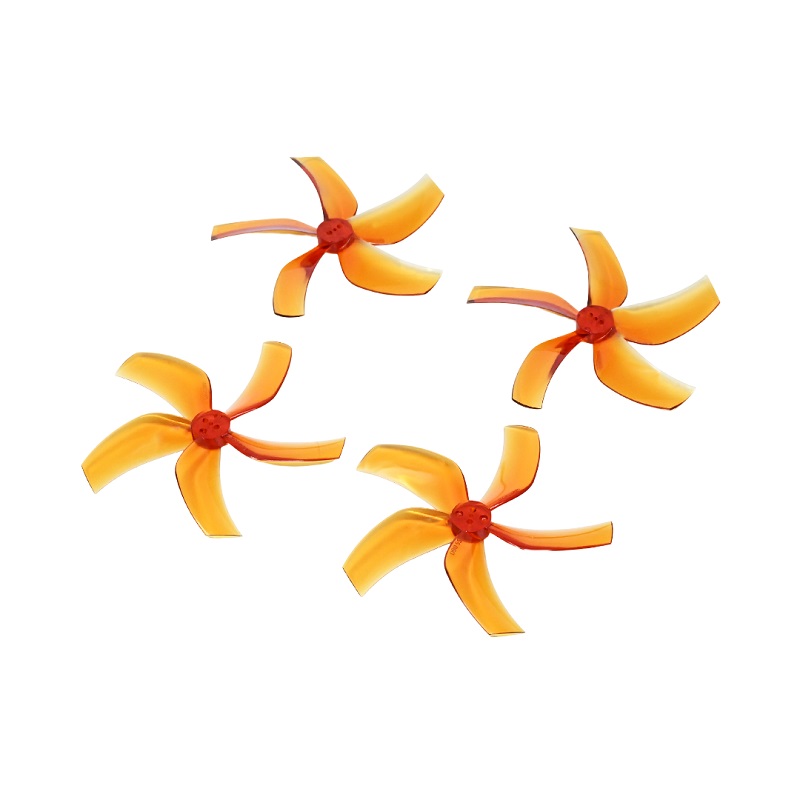

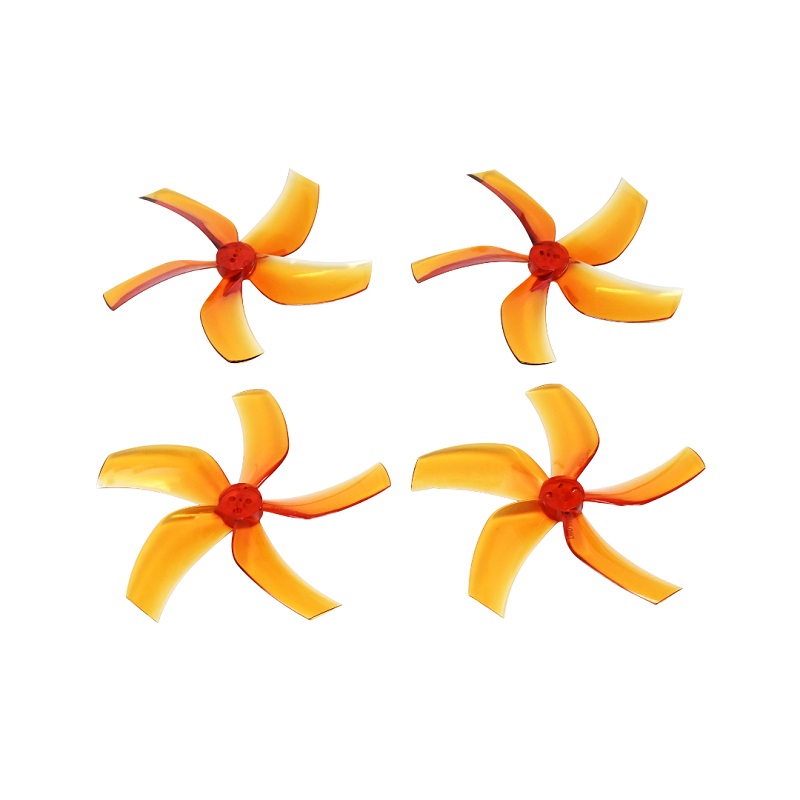

Package Includes

  • 2 x Pro-Range Propellers D90S Ducted PC 5 Blade 1.5mm - Whisky - CW
  • 2 x Pro-Range Propellers D90S Ducted PC 5 Blade 1.5mm - Whisky - CCW

Additional Information

Dimensions 16 × 14 × 3 cm
