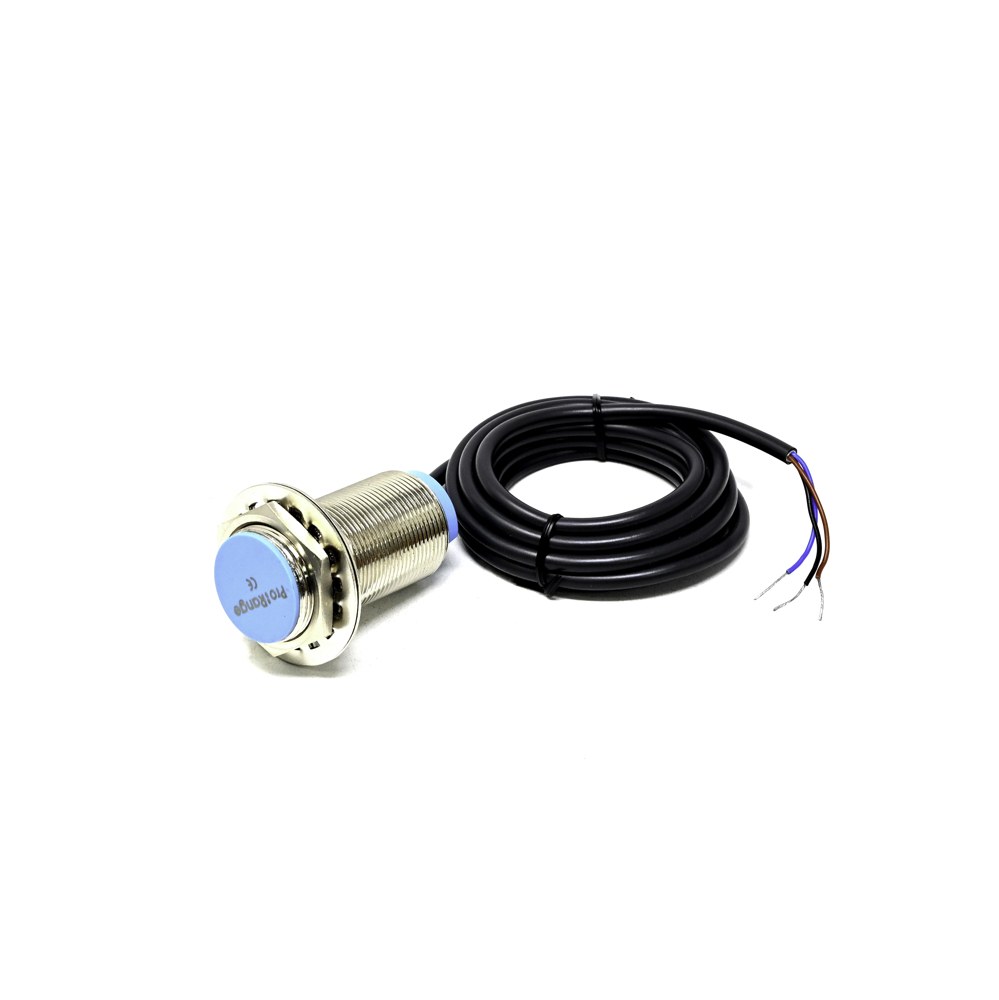

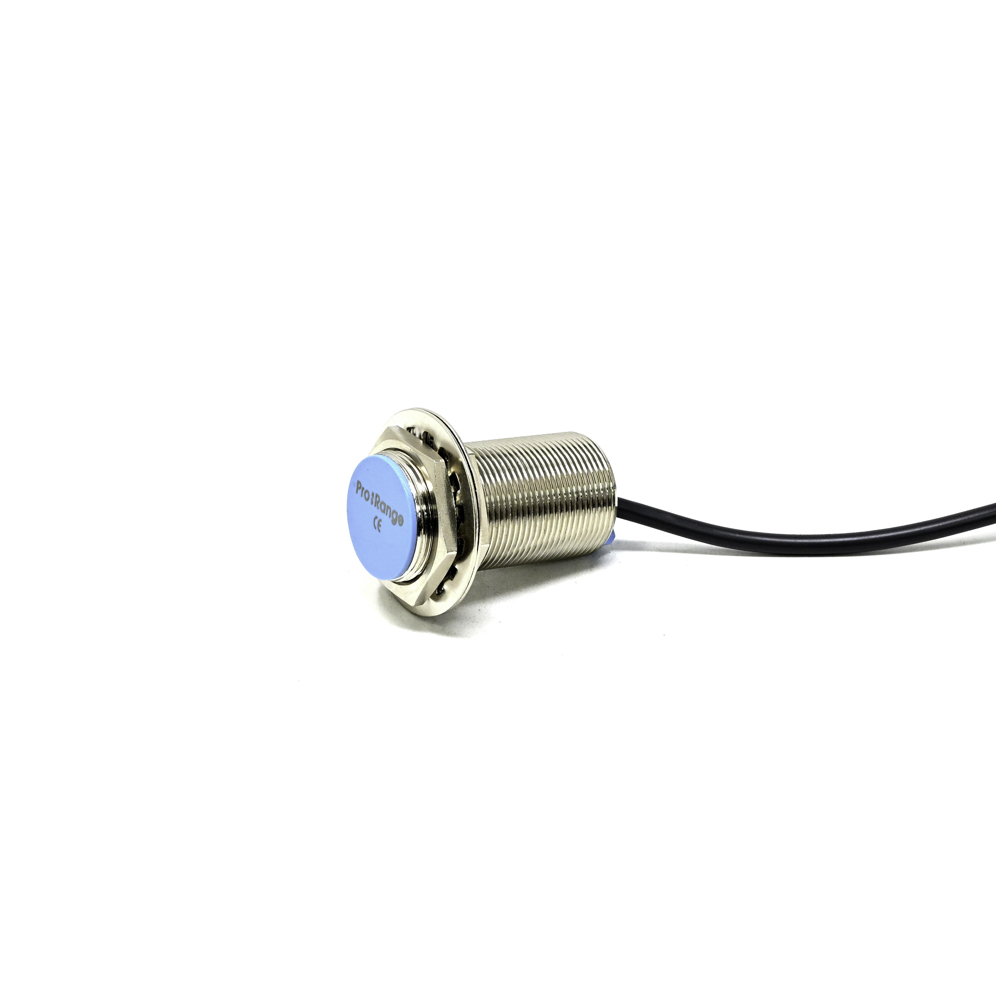

Pro-Range CRJ-A30M-10ANA NPN M30 Capacitive Proximity Sensor - 10mm Detection
The Pro-Range CRJ-A30M-10ANA is an NPN-output capacitive proximity sensor with a 10mm detection range and M30 threaded housing, designed for non-contact detection of non-metallic objects in industrial automation systems, PLCs, and material handling equipment.
Features
- NPN open-collector output for direct interface with PLCs and industrial controllers.
- 10mm standard detection distance for precise object sensing.
- M30 x 1.5mm threaded stainless steel housing for robust mounting.
- Dedicated IC design provides high immunity to electrical noise and interference.
- Integrated red LED status indicator and sensitivity adjustment potentiometer.
Out of stock
The CRJ-A30M-10ANA capacitive sensor operates by detecting changes in capacitance caused by the presence of a target object within its active field. This non-contact method allows for reliable detection of a wide range of materials, including plastics, glass, liquids, and granular substances, without physical wear. The sensor features built-in polarity and short-circuit protection for enhanced durability in demanding industrial environments.
Engineered for continuous operation, this sensor provides a fast response time and high repeatability, making it suitable for high-speed counting, positioning, and level monitoring applications. Its M30 threaded barrel facilitates easy installation into standard mounting holes on machinery frames, tanks, and conveyor systems.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 15 × 10 × 5 cm |
