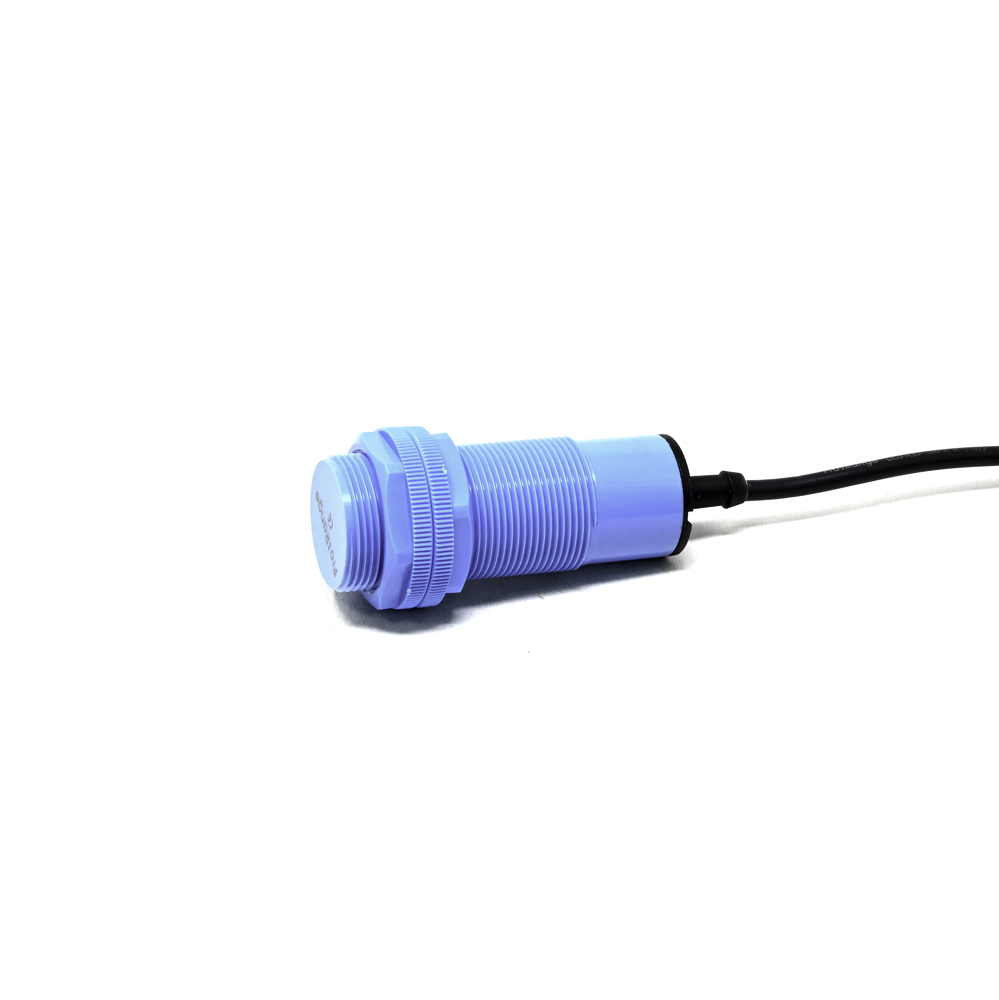

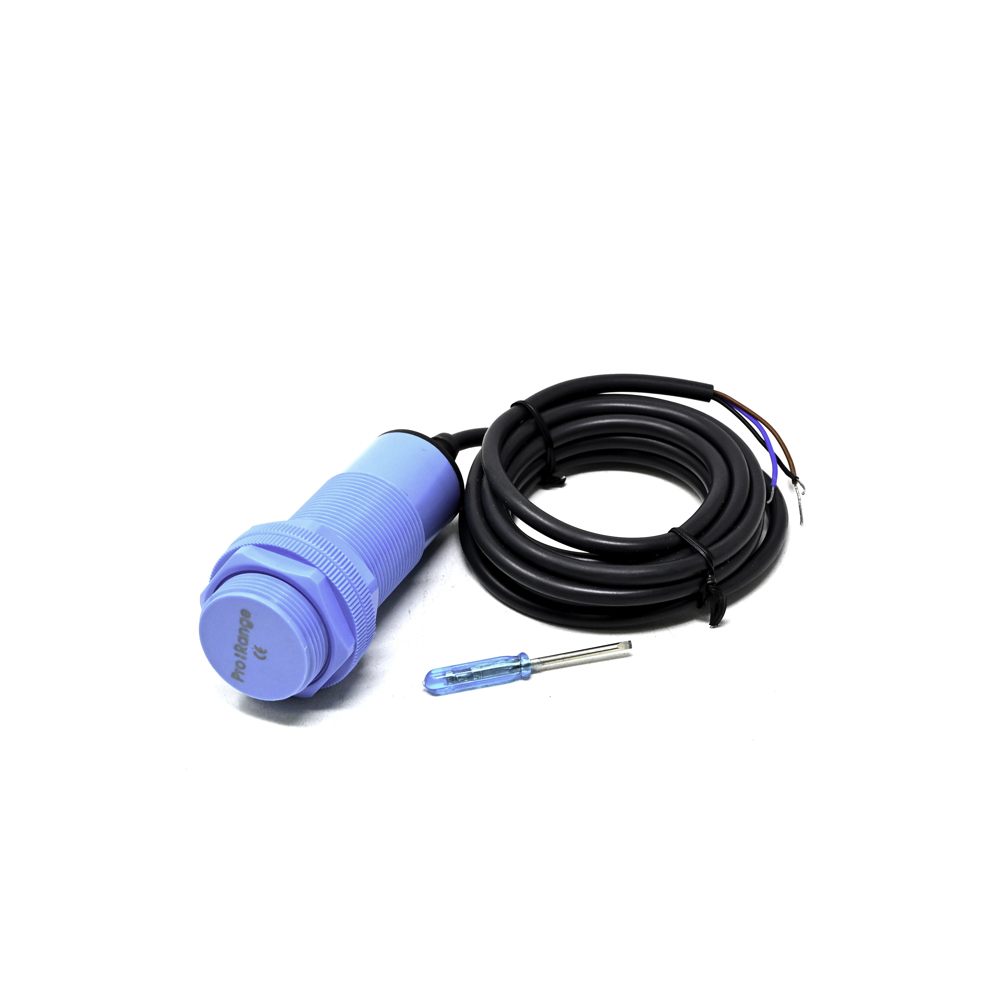

Pro-Range CCJ-A30-15APA Capacitive Proximity Sensor - PNP Output, M30 Thread, 15mm Detection

The sensor typically operates from 10 to 30V DC. Ensure your power supply is within this range and properly regulated. The PNP output switches the load connected between the signal wire and ground (0V).

While capacitive sensors are primarily designed for non-metallic materials (liquids, plastics, wood), they can detect metals if the sensitivity is adjusted appropriately. However, for reliable metal detection, an inductive proximity sensor is generally recommended.

Connect the sensor's brown wire to +V DC (10-30V), blue wire to 0V (GND), and black wire to your PLC's digital input. The PNP output sources current to the input when active. Always refer to the sensor's datasheet for the exact wiring diagram and pinout.

The sensitivity adjustment potentiometer allows you to fine-tune the detection threshold. This is crucial for optimizing performance with different target materials, compensating for buildup on the sensor face, or ignoring background objects to prevent false triggering.

The standard model offers basic environmental sealing. For reliable operation in wet, humid, or dusty conditions, verify the sensor's IP (Ingress Protection) rating. For harsh environments, consider specifying a model with a higher IP rating (e.g., IP67) during purchase.
