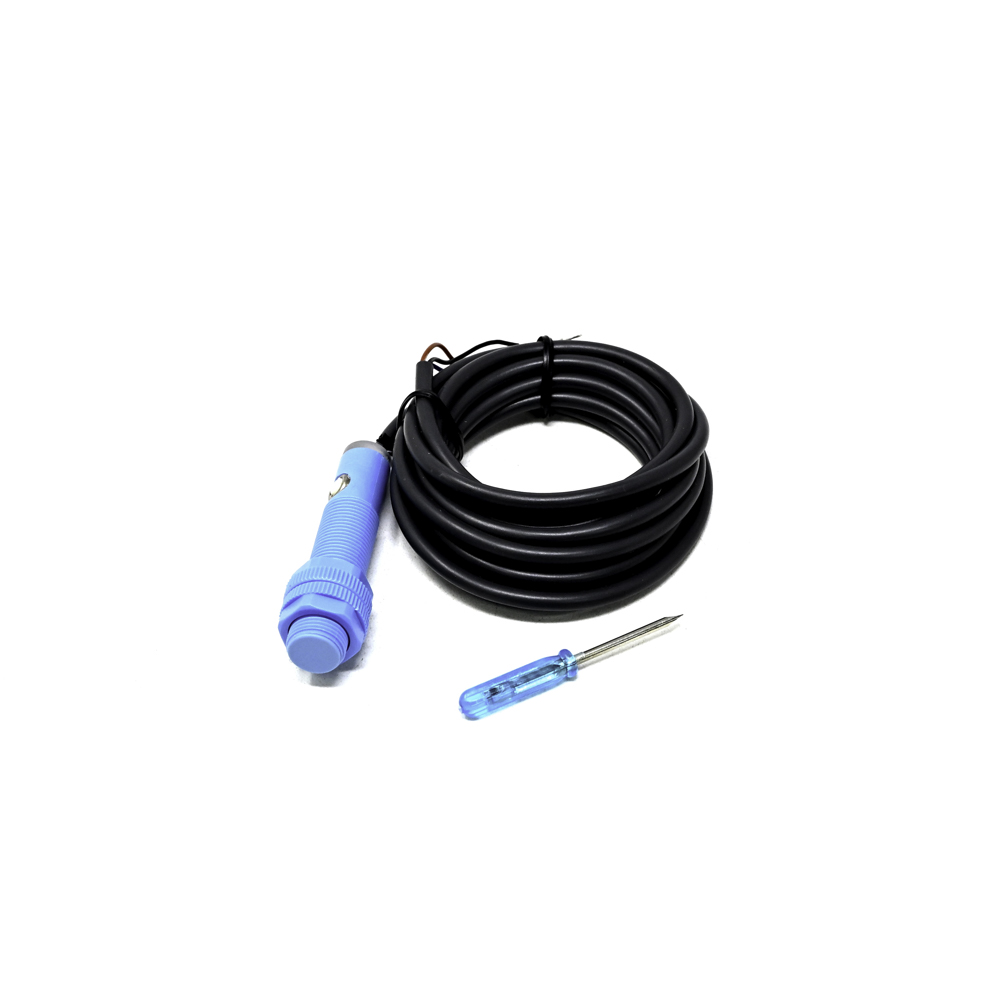

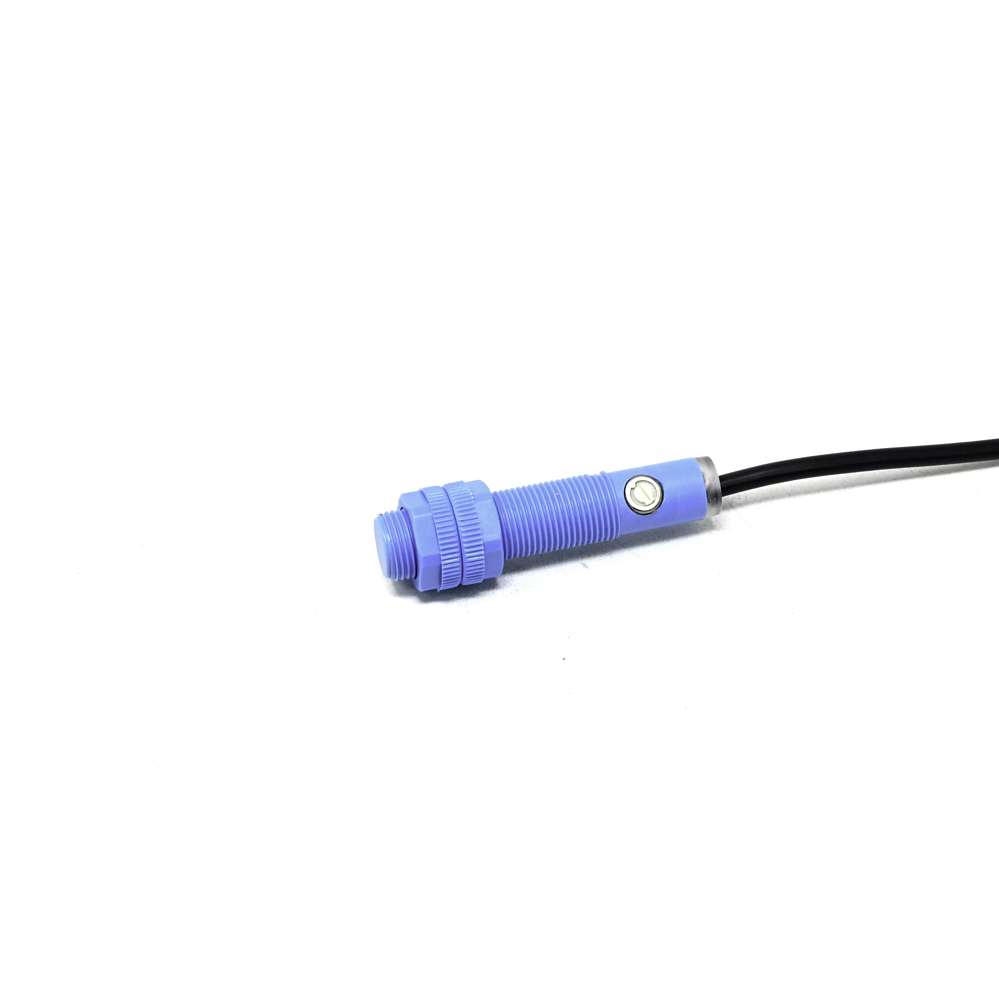

Pro-Range CCJ-A12M-3APA Capacitive Proximity Sensor PNP M12 Thread 3mm Detection

The Pro-Range CCJ-A12M-3APA sensor is designed for standard industrial DC voltage levels, typically operating within a 10-30V DC range. It is crucial to connect the brown wire to the positive supply (V+), the blue wire to the common negative (0V), and the black wire is the PNP switching output. Always verify the specific voltage requirements against your controller's specifications before installation.

While capacitive sensors are primarily optimized for detecting non-metallic materials like plastics, liquids, and glass, they can also sense metallic objects. However, the detection distance for metals will be significantly shorter than the stated 3mm nominal range. For reliable metal detection, an inductive proximity sensor is generally recommended.

This sensor features a built-in potentiometer, usually accessed via a small screw on the side of the housing. Turning this adjusts the sensing threshold, allowing you to fine-tune the sensor for different target materials, sizes, or to ignore background interference (like a container wall). Adjust it while observing the indicator LED with the target object in place for optimal setup.

PNP (sourcing) and NPN (sinking) describe the switching logic of the sensor's output transistor. PNP outputs switch the positive voltage to the load, which is the standard for many PLCs in Europe and common 3-wire DC systems. NPN outputs switch the ground path. You must select the type (this model is PNP) that matches the input circuit of your controller to ensure proper operation and avoid damage.
