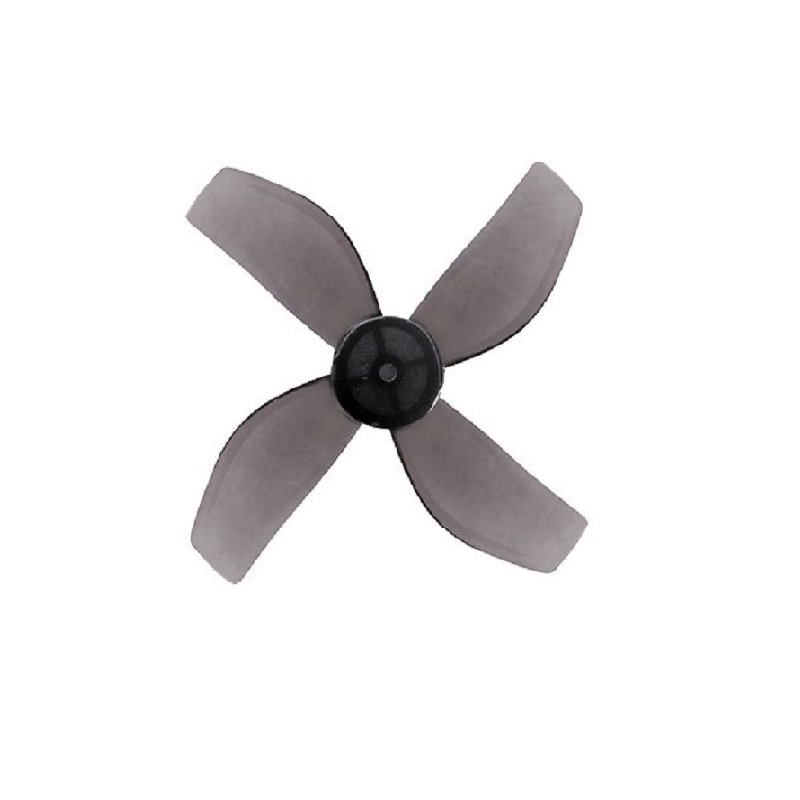

Pro-Range 35mm PC 4-Blade 0.6" Pitch Propellers 4CW+4CCW - Clear Gray

₹111.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range 35mm PC 4-blade propellers are precision-engineered from polycarbonate for micro and nano drone builds, featuring a 0.6″ pitch and a 1mm center hole for direct motor shaft mounting. This 4CW+4CCW set is designed to deliver balanced thrust and enhanced flight stability for FPV racing and freestyle quads.

Features

  • 35mm diameter, 4-blade design with a 0.6″ pitch for responsive thrust.
  • Constructed from durable, lightweight polycarbonate (PC) material.
  • 1mm center hole diameter for direct mounting to micro motor shafts.
  • Includes 4 clockwise (CW) and 4 counter-clockwise (CCW) propellers.
  • Clear Gray finish provides a sleek, semi-transparent aesthetic.

Out of stock

Description

Engineered for micro-class FPV drones and cinewhoops, these 35mm propellers utilize a four-blade configuration to maximize thrust density within a compact footprint. The polycarbonate construction offers an optimal balance of rigidity and impact resistance, ensuring consistent performance during aggressive maneuvers and minor collisions.

The 0.6-inch pitch is calibrated for efficient power delivery across a typical 1S to 2S LiPo voltage range, providing pilots with snappy throttle response and predictable handling. The 1mm bore is a standard for many 0802, 0803, and 1102 brushless motor series, ensuring a secure, direct-fit installation without adapters.

Key Features

  • High-Durability Polycarbonate Blend: Offers superior resistance to bending and cracking compared to standard nylon blends, maintaining blade integrity.
  • Optimized 4-Blade Aerodynamics: Increases disc loading for improved low-speed stability and punch-out performance in tight spaces.
  • Precision-Molded Hub: Ensures true running balance straight from the package, reducing motor vibration for smoother video feed.
  • Direct 1mm Shaft Fit: Eliminates the need for press-fit adapters or collets, providing a secure connection to micro motor shafts.
  • Clear Gray Translucent Design: Allows for LED light diffusion and provides a professional, low-visibility aesthetic on the drone frame.

Applications

  • 1S to 2S Micro FPV Racing Drones (65mm to 75mm frame size).
  • Tiny Whoop and CineWhoop builds requiring ducted propeller compatibility.
  • Lightweight nano drones and indoor FPV flyers.
  • DIY micro quadcopter projects utilizing 0802, 0803, or 1102 brushless motors.

Technical Specifications

MaterialPolycarbonate (PC)
Propeller Diameter35mm
Number of Blades4
Pitch0.6 inches
Center Hole Diameter1mm
Rotation DirectionCW & CCW
Set Configuration4CW + 4CCW
ColorClear Gray

Frequently Asked Questions

What motor shaft size are these 35mm propellers designed for?

These propellers are designed for a 1mm motor shaft diameter. They are a direct press-fit onto motors with a 1mm shaft, commonly found on 0802, 0803, and 1102 brushless motor series used in micro and nano drones. No additional adapters or collets are required for installation.

What is the recommended drone frame size for these 35mm propellers?

These 35mm propellers are ideal for 65mm to 75mm micro drone frames, particularly Tiny Whoop and CineWhoop builds that utilize ducted propeller guards. Their compact diameter and four-blade design provide the necessary thrust for agile flight within confined indoor spaces or tight outdoor courses.

Can these propellers be used on 2S or higher voltage micro drones?

Yes, the polycarbonate construction provides sufficient rigidity and durability for use on 1S and 2S LiPo-powered micro drones. The 0.6" pitch is well-suited for this voltage range, offering a good balance of thrust and efficiency. For sustained high-RPM use on aggressive 2S setups, ensure your motors are adequately sized to handle the load.

Package Includes

  • 4 x Pro-Range 35mm PC 4-Blade Propellers (CW Rotation) - Clear Gray
  • 4 x Pro-Range 35mm PC 4-Blade Propellers (CCW Rotation) - Clear Gray

Additional Information

Weight 0.01 kg
Dimensions 5 × 5 × 1 cm
