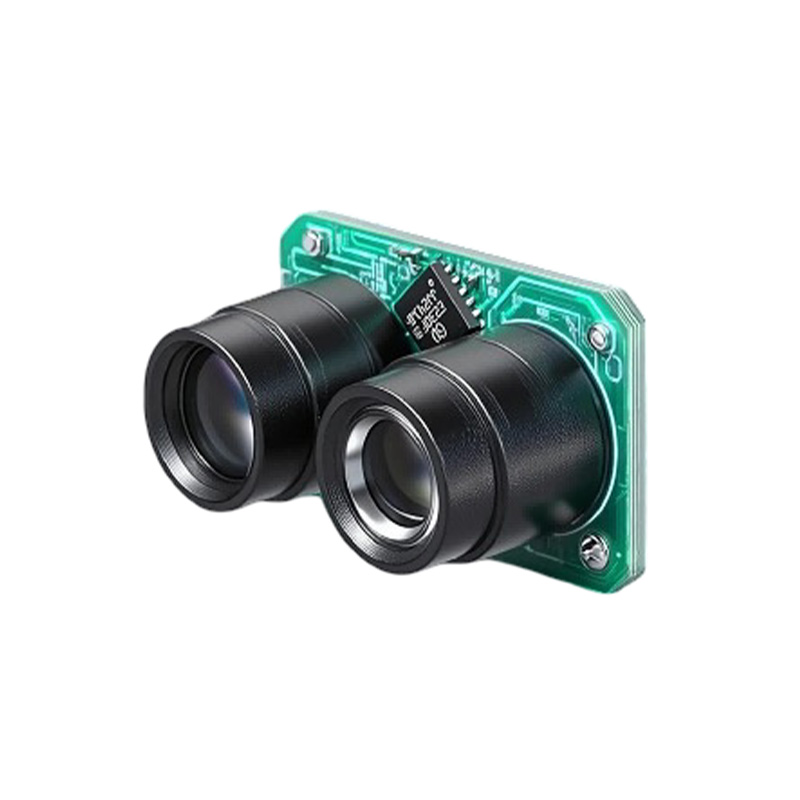

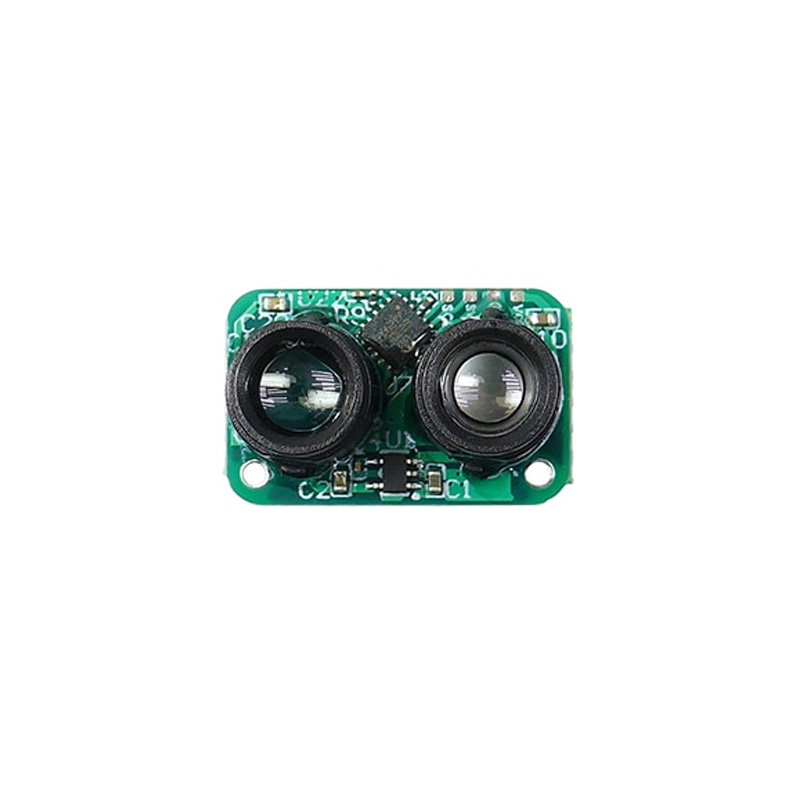

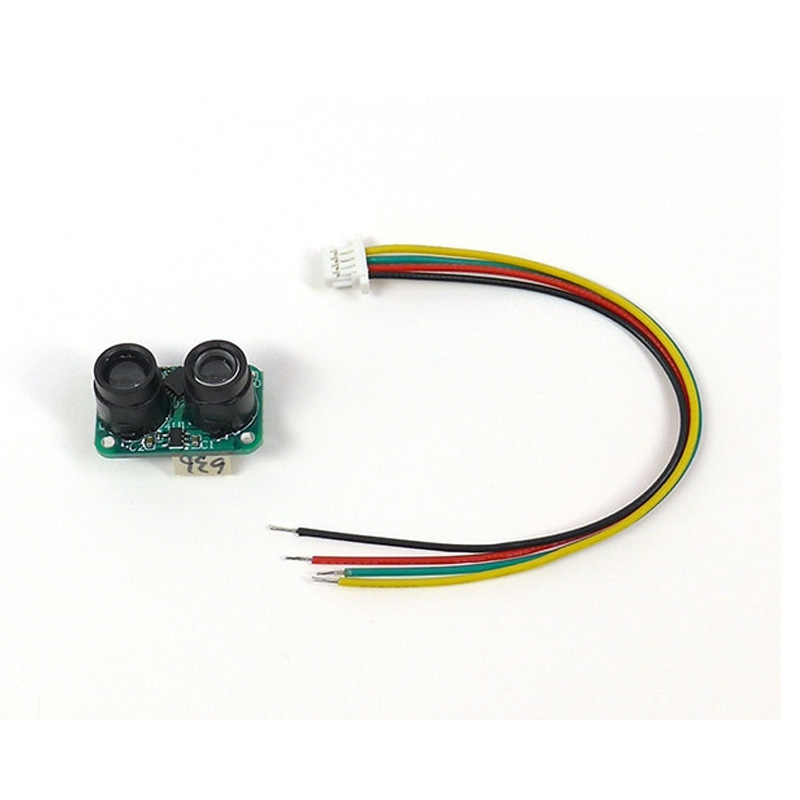

PONO TSD50 Single-Point ToF LiDAR Distance Sensor Module, UART/I2C, 3.3~5V, 500Hz, Range: 0.05m~50m
The PONO TSD50 is a compact, high-speed single-point ToF LiDAR distance sensor module utilizing Direct Time-of-Flight (DTOF) technology for precise ranging from 0.05 to 50 meters. It features a 500Hz sampling rate, UART/I2C communication, and a wide 3.3V to 5V supply range, making it compatible with Arduino, Raspberry Pi, ESP32, and industrial control systems for real-time obstacle detection and navigation.
Features
- DTOF Technology for precise distance measurement up to 50 meters.
- High-speed 500Hz sampling rate for real-time data acquisition.
- Wide operating voltage range of 3.3V to 5V for flexible system integration.
- High ambient light immunity (up to 100,000 Lux) for stable outdoor operation.
- Compact and lightweight design (18.7mm x 11.8mm, ~2g) for space-constrained applications.
Out of stock
The PONO TSD50 sensor module employs advanced Direct Time-of-Flight (DTOF) technology with a 905nm laser source to achieve accurate, long-range distance measurement. Its high-speed 500Hz sampling frequency enables rapid detection and tracking of moving objects, while its narrow 1.7° field of view provides precise, focused ranging.
Engineered for challenging environments, the module features exceptional immunity to ambient light interference up to 100,000 Lux and operates reliably across a temperature range of -20°C to +60°C. The Class 1 laser safety rating ensures eye-safe operation. Its compact form factor and low power consumption make it an ideal solution for integration into drones, robotic navigation systems, and industrial automation platforms.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 1.87 × 1.18 cm |
