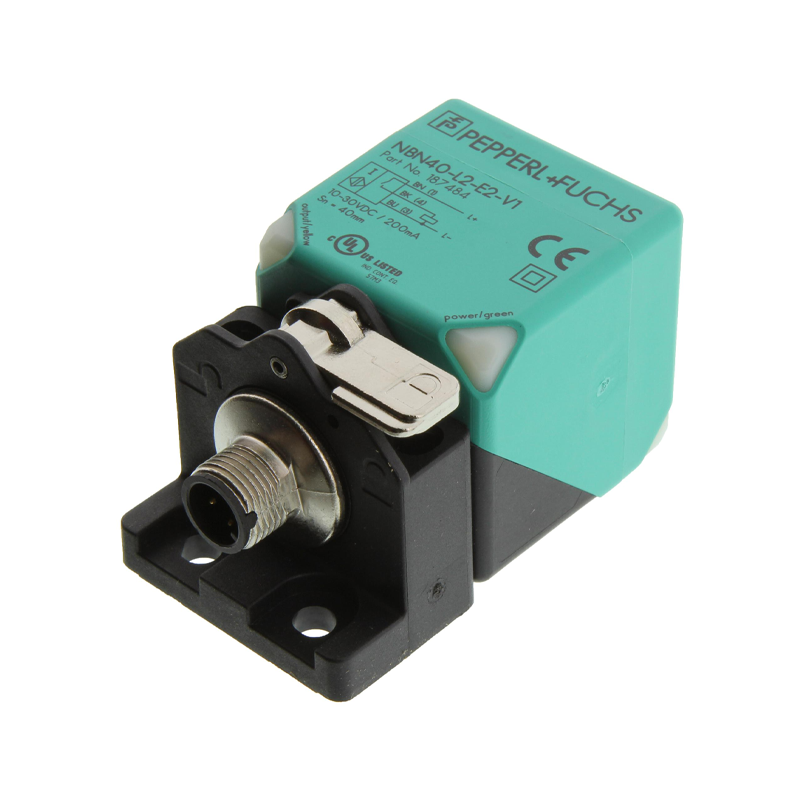

Pepperl+Fuchs NBN40-L2-E2-V1 Inductive Proximity Sensor, PNP-NO, 40mm Range, 10-30VDC, IP69K
The Pepperl+Fuchs NBN40-L2-E2-V1 is a robust, non-flush inductive proximity sensor with a 40mm sensing range, designed for industrial automation. Featuring a PNP normally-open (NO) output and 10-30VDC operation, it integrates directly with PLCs, industrial controllers, and 24V DC control systems for reliable metal object detection.
Features
- Long 40mm non-flush sensing distance for flexible installation.
- PNP normally-open (NO) output for direct PLC and controller integration.
- Rated IP69K for protection against high-pressure washdowns and harsh industrial environments.
- Bidirectional rotatable sensor head and quick-mount bracket for versatile, easy installation.
- Operates on a wide 10-30VDC range with a switching frequency up to 180Hz.
Out of stock
The NBN40-L2-E2-V1 is an industrial-grade inductive proximity sensor utilizing an electromagnetic field to detect the presence of ferrous and non-ferrous metal targets without physical contact. Its non-flush mounting design allows for an extended 40mm sensing range, providing greater installation flexibility around machinery and conveyor systems. The sensor outputs a switching signal via its 3-wire PNP normally-open configuration, compatible with standard sinking input modules.
Constructed with a durable PA (polyamide) housing and sealed to IP69K, this sensor withstands extreme conditions including dust, high-pressure water jets, and chemical exposure common in food processing, packaging, and automotive manufacturing. The integrated 4-way LED provides clear visual status indication for power, output state, and fault diagnostics, simplifying maintenance and troubleshooting in continuous operation environments.
Additional Information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 4 × 4 cm |
