Pepperl+Fuchs NBB2-12GM50-E2-V1 Inductive Proximity Sensor, M12 Thread, 2 mm Flush Sensing, PNP NO Output

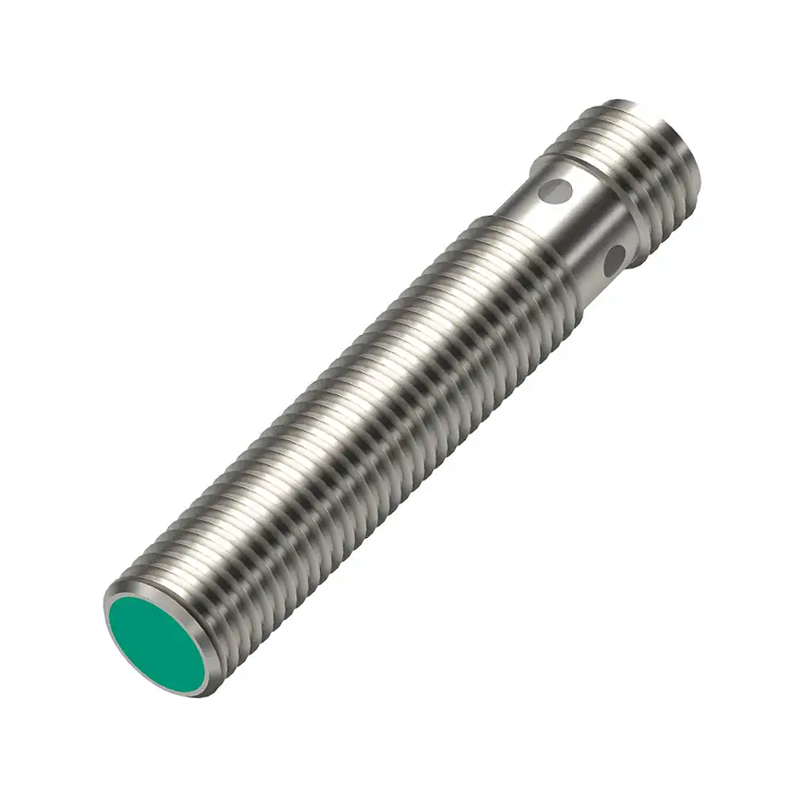

Pepperl+Fuchs NBB2-12GM50-E2-V1 Inductive Proximity Sensor, M12 Thread, 2 mm Flush Sensing, PNP NO Output - Image 2
SKU: SENS-1211
📋 GST Invoice Available

Pepperl+Fuchs NBB2-12GM50-E2-V1 Inductive Proximity Sensor, M12 Thread, 2 mm Flush Sensing, PNP NO Output

₹12,889.00 (Inclusive of all taxes)
Out of Stock

The Pepperl+Fuchs NBB2-12GM50-E2-V1 is a high-performance inductive proximity sensor designed for industrial automation, featuring a 2 mm flush sensing range, PNP normally open (NO) output, and a wide 6-36 VDC operating voltage compatible with PLCs and industrial control systems.

Features

  • 2 mm flush mounting sensing range for precise metal object detection.
  • PNP normally open (NO) switching output with 3-wire configuration.
  • Wide operating voltage range of 6-36 VDC for flexible system integration.
  • High switching frequency up to 3500 Hz for fast automation processes.
  • Robust M12 threaded brass housing with white bronze coating and IP65/IP66/IP67/IP68 protection.

Out of stock

Description

The NBB2-12GM50-E2-V1 operates on the inductive sensing principle, generating an electromagnetic field to detect the presence of metallic targets without physical contact. Its flush-mount design allows for installation level with the mounting surface, providing reliable detection in space-constrained applications. The sensor incorporates internal signal conditioning to deliver a stable PNP switching signal.

Engineered for harsh industrial environments, the sensor’s brass housing with white bronze coating offers excellent corrosion resistance. Its wide operating temperature range of -40°C to +85°C and multiple IP ratings ensure reliable performance in dusty, wet, and demanding conditions, making it suitable for continuous operation in manufacturing and process automation.

Key Features

  • Precision inductive sensing with a nominal range of 2 mm and flush mounting capability.
  • High-speed PNP (sourcing) output with normally open (NO) contact for direct PLC input compatibility.
  • Broad 6-36 VDC supply range supports integration with 12V, 24V, and other common industrial DC systems.
  • Exceptional environmental durability with IP65, IP66, IP67, and IP68 ingress protection ratings.
  • Durable brass sensor body with a protective white bronze finish for extended service life.
  • Integrated LED status indicator for immediate visual confirmation of switching state and power.
  • High 3500 Hz switching frequency enables detection in high-speed counting and positioning applications.
  • Standard M12 x 1 threaded barrel with 3-pin connector for quick installation and replacement.

Applications

  • Metal part detection and counting on high-speed conveyor lines.
  • Position verification and end-of-travel sensing in robotic arms and linear actuators.
  • Machine tool monitoring for tool presence, clamp status, and safety door interlocks.
  • Level detection of metallic materials in hoppers, silos, and processing vessels.
  • Automated assembly line sequencing and component presence verification.

Technical Specifications

Manufacturer Part NumberNBB2-12GM50-E2-V1
Sensor TypeInductive Proximity Sensor
Rated Sensing Distance2 mm (Flush)
Operating Voltage6 – 36 V DC
Output TypePNP, Normally Open (NO), 3-wire
Switching Frequency0 – 3500 Hz
Protection RatingIP65 / IP66 / IP67 / IP68
Housing MaterialBrass with White Bronze Coating
Thread SizeM12 x 1
Sensor Diameter12 mm
Length64.5 mm
Weight29 g
Operating Temperature-40°C to +85°C

Frequently Asked Questions

What is the operating voltage range for this Pepperl+Fuchs sensor?

The NBB2-12GM50-E2-V1 operates on a wide DC voltage range from 6 to 36 volts. This flexibility allows it to be integrated directly with common industrial power supplies, including 12V and 24V DC systems, without requiring an additional voltage regulator.

What type of output signal does this sensor provide?

This sensor provides a 3-wire PNP (sourcing) normally open (NO) switching output. When a metal target is detected within the 2 mm range, the output switches to a high state, sourcing current to the load connected between the output wire and common negative (0V).

Can this sensor be flush-mounted, and what are its environmental protections?

Yes, it is designed for flush mounting, meaning it can be installed level with a metal surface. It features a robust brass housing with multiple ingress protection ratings: IP65, IP66, IP67, and IP68. This ensures reliable operation in environments with dust, high-pressure water jets, or temporary immersion.

What is the maximum switching frequency?

The sensor supports a high switching frequency of up to 3500 Hz. This enables it to detect objects in rapid succession, making it suitable for high-speed counting applications, fast-moving production lines, and precision positioning systems where quick response times are critical.

Package Includes

  • 1 x Pepperl+Fuchs NBB2-12GM50-E2-V1 Inductive Proximity Sensor

Additional Information

Weight 0.029 kg
