PAJ7620U2 Gesture Recognition Sensor Module - I2C Interface, 3.3V/5V

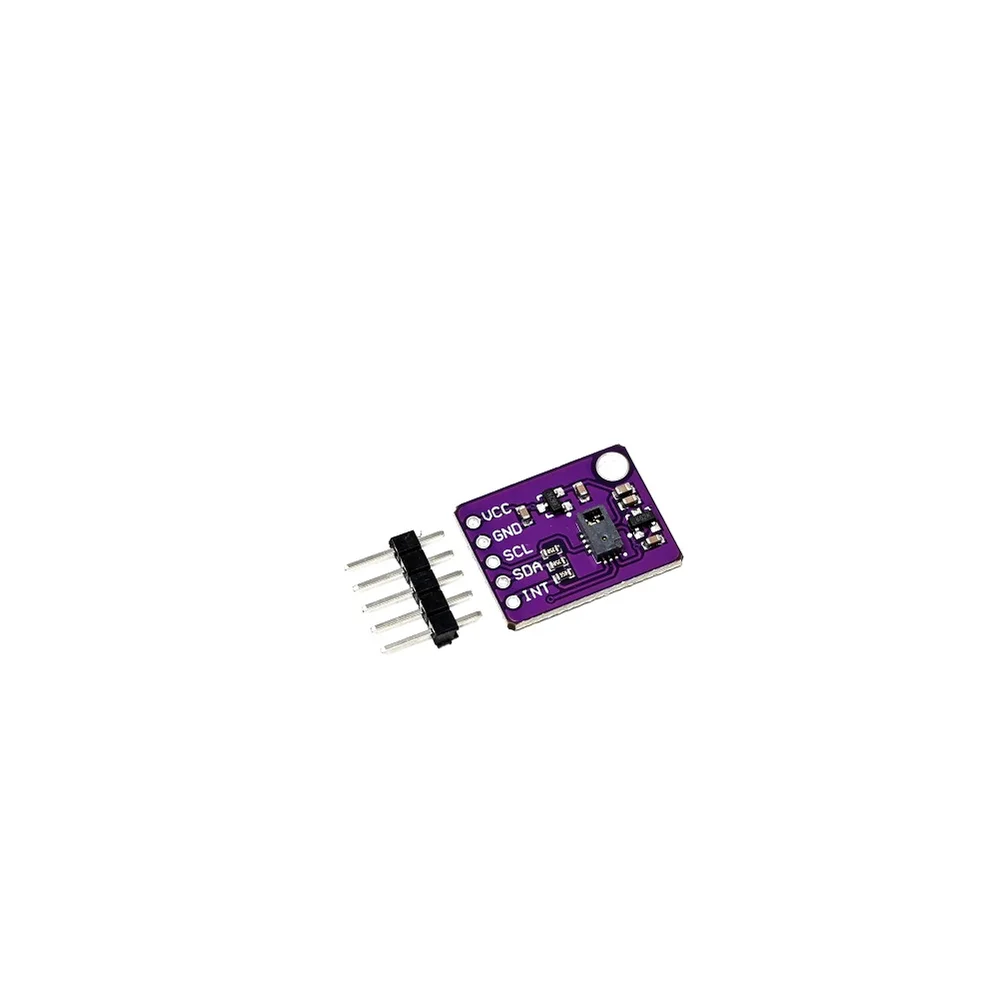

PAJ7620U2 Gesture Recognition Sensor Module - I2C Interface, 3.3V/5V - Image 2

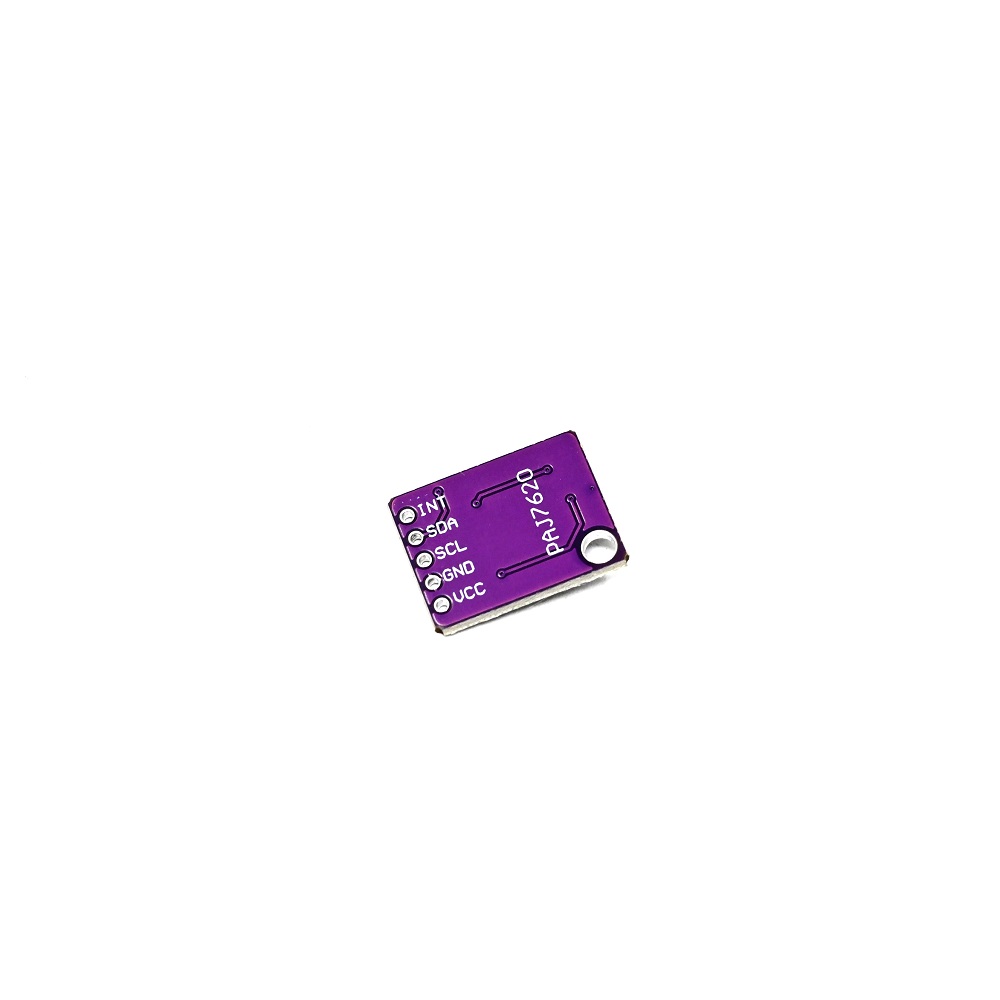

PAJ7620U2 Gesture Recognition Sensor Module - I2C Interface, 3.3V/5V - Image 3
SKU: SENS-3275
📋 GST Invoice Available

PAJ7620U2 Gesture Recognition Sensor Module - I2C Interface, 3.3V/5V

₹669.00 (Inclusive of all taxes)
Out of Stock

The PAJ7620U2 Gesture Recognition Sensor Module is a compact I2C-based sensor capable of detecting nine distinct hand gestures. It operates from 3.3V to 5V, making it directly compatible with Arduino, Raspberry Pi, ESP32, and other popular 3.3V/5V logic microcontrollers for intuitive user interface projects.

Features

  • Recognizes nine distinct gestures: Up, Down, Left, Right, Push, Pull, Clockwise, Counter-Clockwise, and Wave.
  • Standard I2C communication interface for simple integration with microcontrollers.
  • Wide operating voltage range of 3.3V to 5V for flexible system compatibility.
  • Low power consumption suitable for portable and embedded applications.
  • Compact breakout board design with solderable header pins for easy prototyping.

Out of stock

Description

The PAJ7620U2 module integrates a specialized optical sensor array and a dedicated image processing IC to detect and interpret hand movements based on near-infrared sensing. It outputs predefined gesture codes via its I2C interface, simplifying complex motion tracking into simple digital commands.

Designed for stable operation in ambient light conditions, the sensor is ideal for creating touchless control systems. Its compact form factor and straightforward I2C protocol allow for rapid integration into robotics, interactive displays, and smart home automation projects without requiring advanced signal processing knowledge.

Key Features

  • Advanced optical gesture recognition engine with nine predefined outputs.
  • Standard I2C digital interface (I2C address: 0x73) for direct microcontroller connection.
  • Wide 3.3V to 5V DC input range compatible with most development boards.
  • Optimized low-power operation for battery-powered embedded applications.
  • Compact PCB breakout design with a 5x5 cm footprint for space-constrained projects.
  • Operating temperature range of 0°C to +70°C for reliable indoor use.
  • Pre-programmed firmware handles complex gesture algorithm processing internally.
  • High-value build with solderable header pins for custom cable integration.

Applications

  • Touchless control interfaces for interactive kiosks and public displays.
  • Gesture-based command systems for robotics and drone control.
  • Smart home automation for lighting, audio, and appliance control.
  • Wearable tech and assistive devices for hands-free operation.
  • Prototyping intuitive human-machine interfaces (HMI) for consumer electronics.

Technical Specifications

Model / Part NumberPAJ7620U2
InterfaceI2C (Address: 0x73)
Supply Voltage3.3V to 5V DC
Operating Temperature0°C to +70°C
Gesture RecognitionUp, Down, Left, Right, Push, Pull, Clockwise, Counter-Clockwise, Wave
Dimensions (LxWxH)Approx. 5 cm x 5 cm x 1 cm (board)
WeightApprox. 0.01 kg

Frequently Asked Questions

What is the I2C address of the PAJ7620U2 sensor module?

The default I2C address for the PAJ7620U2 sensor is 0x73 (hexadecimal). This address is used by the microcontroller to communicate with the module over the I2C bus. Ensure your code initializes the I2C communication with this specific address to receive gesture data correctly.

What voltage does the PAJ7620U2 module require? Can I use it with a 5V Arduino?

The module operates on a wide voltage range of 3.3V to 5V DC. It is fully compatible with both 3.3V and 5V logic systems, including 5V Arduino boards like the Uno. Simply connect the module's VCC pin to your board's 5V or 3.3V power rail, ensuring the logic levels match for reliable I2C communication.

What gestures can the PAJ7620U2 sensor recognize?

The sensor is pre-programmed to recognize nine distinct hand gestures: Up, Down, Left, Right, Push (forward), Pull (backward), Clockwise Circle, Counter-Clockwise Circle, and a Wave. It outputs a corresponding digital code for each detected gesture via the I2C interface, which your microcontroller can read and act upon.

Does the module come with headers soldered?

No, the module is supplied as a breakout board with an unsoldered set of header pins. You will need to solder the provided headers onto the board yourself. This allows flexibility for users who may prefer straight pins, right-angle pins, or direct wire soldering for their specific project enclosure.

Is any special library required to use this sensor with Arduino?

Yes, using a dedicated library (such as the 'PAJ7620' library available through the Arduino Library Manager) is highly recommended. The library abstracts the low-level I2C register commands and provides simple functions for initializing the sensor and reading gesture IDs, significantly simplifying the integration process.

Package Includes

  • 1 x PAJ7620U2 Gesture Sensor Breakout Board
  • 1 x Set of Header Pins (unsoldered)

Additional Information

Weight 0.01 kg
Dimensions 5 × 5 × 1 cm
