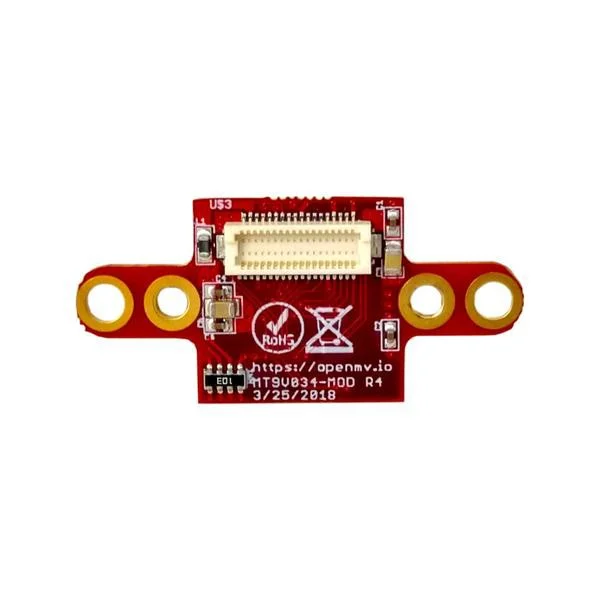

OpenMV MT9V034 Global Shutter Camera Module
The OpenMV MT9V034 Global Shutter Camera Module is a high-speed, monochrome imaging sensor designed for machine vision applications. It provides crisp, motion-blur-free images compatible with the OpenMV Cam platform, ideal for robotics, object tracking, and industrial inspection.
Features
- TrueSNAP Global Shutter eliminates motion blur for high-speed capture up to 60 FPS at full 752×480 resolution.
- High Dynamic Range (HDR) mode delivers >100 dB range, perfect for scenes with extreme lighting contrasts.
- NIR-enhanced 6µm pixels optimized for use with non-visible infrared illumination in low-light conditions.

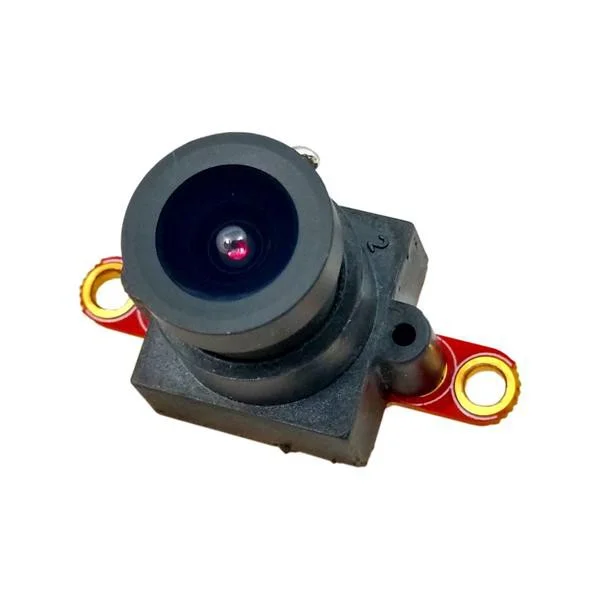

- Compact 35x25mm module with integrated 2.8mm F2.0 lens (M12 mount) and removable 650nm IR filter.
- Direct 3.3V operation with low power consumption, suitable for embedded vision systems and portable devices.
Out of stock
The OpenMV MT9V034 module integrates a Wide-VGA CMOS global shutter sensor, engineered for precision machine vision. Its simultaneous integration and readout architecture ensures every pixel is exposed at the same instant, capturing crisp images of fast-moving objects without the skew or blur associated with rolling shutter sensors. This makes it indispensable for barcode scanning, robotic guidance, and high-speed industrial automation.
Built with DigitalClarity technology, the sensor offers a linear dynamic range exceeding 55 dB, extendable beyond 100 dB in HDR mode, providing exceptional detail in both shadows and highlights. The module includes a wide-angle 115° lens with a removable infrared cut filter, allowing seamless switching between visible light and NIR imaging for specialized applications like nighttime surveillance or agricultural monitoring.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 3.5 × 2.5 cm |
