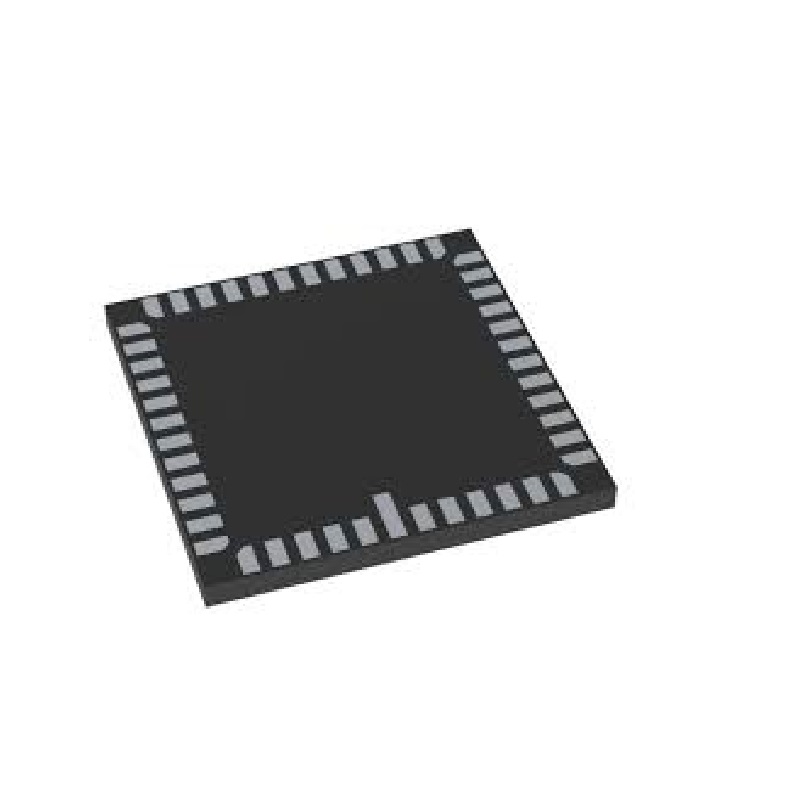

onsemi MT9J003I12STCV2-DP 1.67um CMOS 3856Hx2764V LCC-48 Image Sensor
The onsemi MT9J003I12STCV2-DP is a high-resolution CMOS image sensor featuring a 1.67μm pixel size and a 10.7-megapixel (3856H x 2764V) active array. Housed in a compact LCC-48 package, this sensor is engineered for integration into advanced imaging systems requiring precise color capture and a wide operating temperature range.
Features
- 10.7-megapixel (3856H x 2764V) CMOS image sensor with 1.67μm pixel pitch
- LCC-48 (10x10mm) surface-mount package for compact system integration
- Wide operating temperature range from -30°C to +75°C
- High sensitivity and dynamic range for accurate color reproduction
- ROHS compliant for environmental safety in manufacturing
Out of stock
The MT9J003I12STCV2-DP from onsemi is a professional-grade CMOS image sensor designed for demanding digital imaging applications. Its 1.67μm pixel technology provides a balance of resolution and light sensitivity, enabling the capture of detailed images with accurate color fidelity across a broad spectrum of lighting conditions.
This sensor is supplied in a leadless chip carrier (LCC-48) package, facilitating direct surface-mount assembly onto system PCBs. Its robust design supports operation in environments ranging from -30°C to +75°C, making it suitable for applications beyond standard consumer electronics, including industrial inspection, automotive vision systems, and specialized scientific instrumentation.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 8 × 3 cm |
