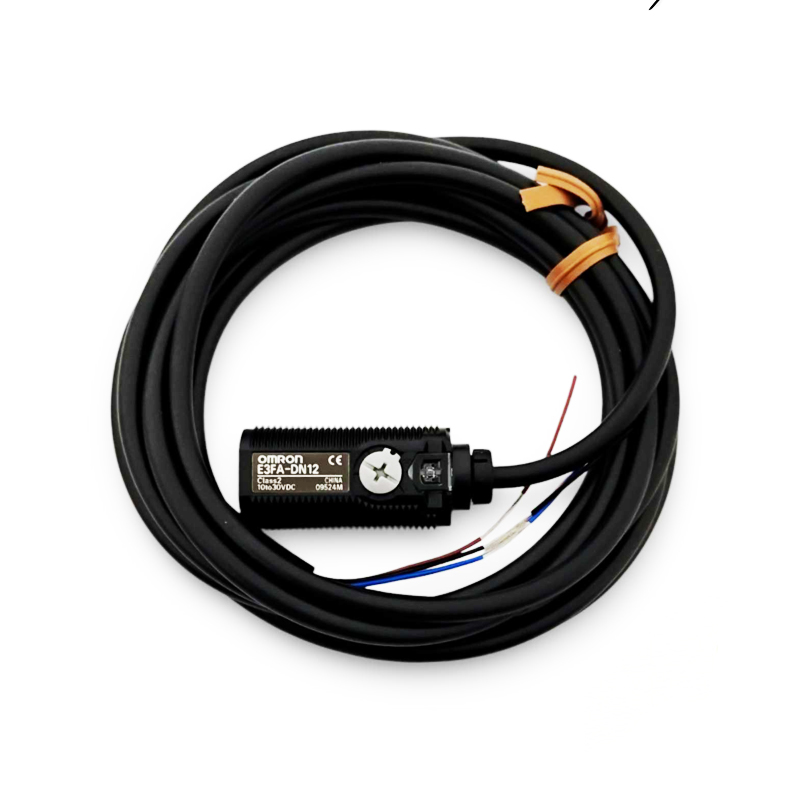

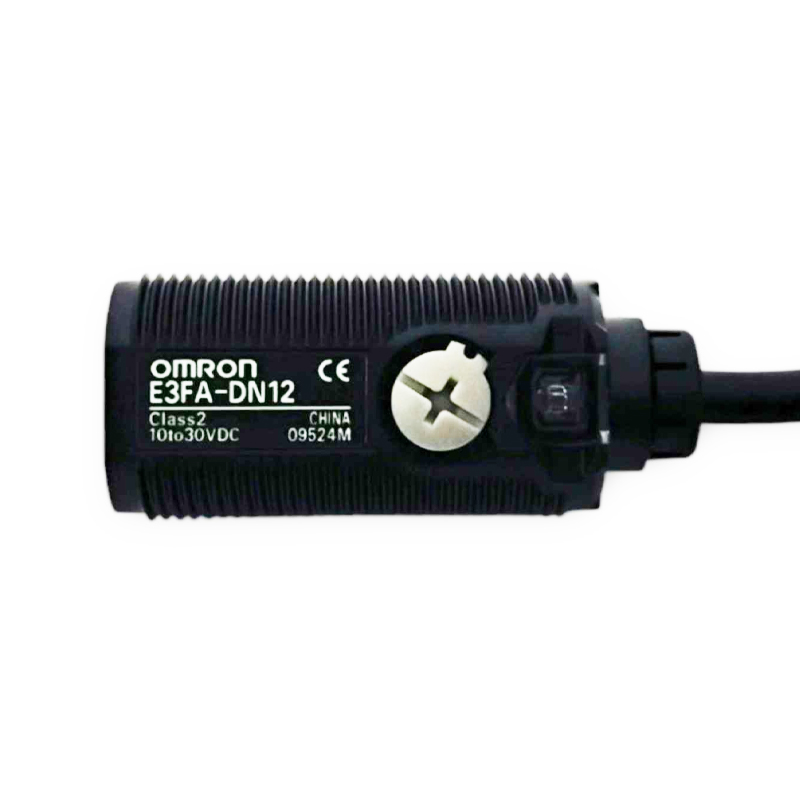

Omron E3FA-DN12 Photoelectric Sensor, NPN Open-Collector, 10-30VDC, Red LED 624nm, 300mm Range, IP67/IP69K
The Omron E3FA-DN12 is a diffuse-reflective photoelectric sensor with an NPN open-collector output, designed for industrial automation systems operating on 10-30VDC. It features a high-power 624nm red LED for precise alignment and a 300mm detection range, housed in a robust M18 cylindrical body with IP67/IP69K protection for demanding washdown environments.
Features
- Diffuse-reflective photoelectric sensor with a 300mm (30cm) standard detection range.
- NPN open-collector output compatible with 10-30VDC industrial PLCs and controllers.
- High-power 624nm red LED emitter for excellent visibility and alignment.
- Robust M18 cylindrical housing with IP67/IP69K ratings for dust, water, and high-pressure washdown resistance.
- Fast response time of 0.5ms for high-speed object detection and counting applications.
Out of stock
The Omron E3FA-DN12 utilizes a diffuse-reflective sensing principle, where the built-in emitter and receiver are housed in the same unit. It projects a beam of red light (624nm) and detects the light reflected from a target object, making it suitable for detecting a wide variety of materials without requiring a separate reflector. This design simplifies installation and alignment in complex machinery.
Engineered for harsh industrial settings, the sensor’s IP67/IP69K rating ensures reliable operation in environments exposed to dust, moisture, and high-pressure, high-temperature cleaning procedures common in food & beverage, packaging, and pharmaceutical industries. Its 360° visible LED status indicators provide immediate operational feedback, while built-in circuitry offers strong immunity to ambient light and electromagnetic interference (EMC), ensuring stable signal integrity.
Additional Information
| Weight | 0.065 kg |
|---|---|
| Dimensions | 4 × 1.8 cm |
