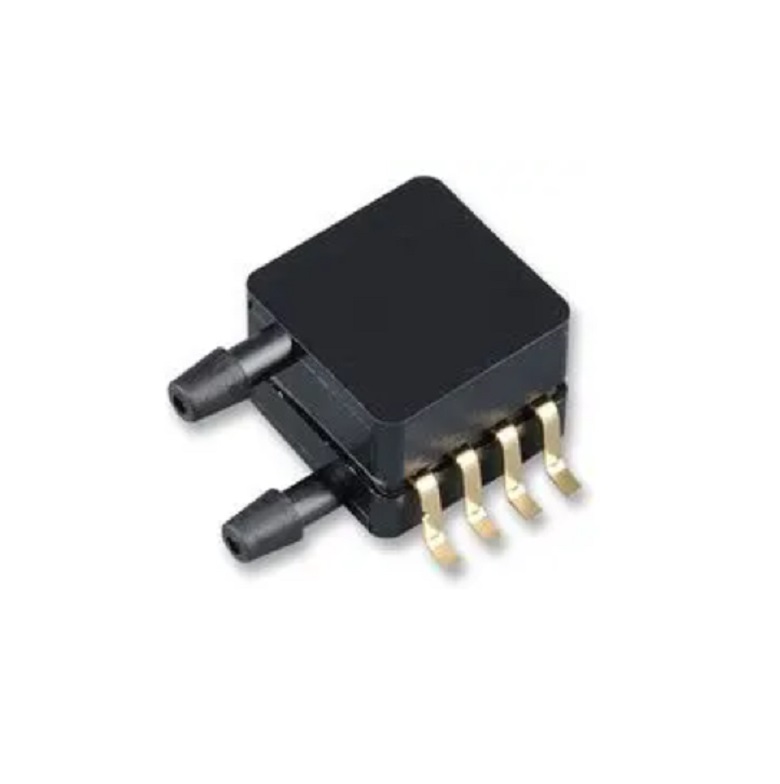

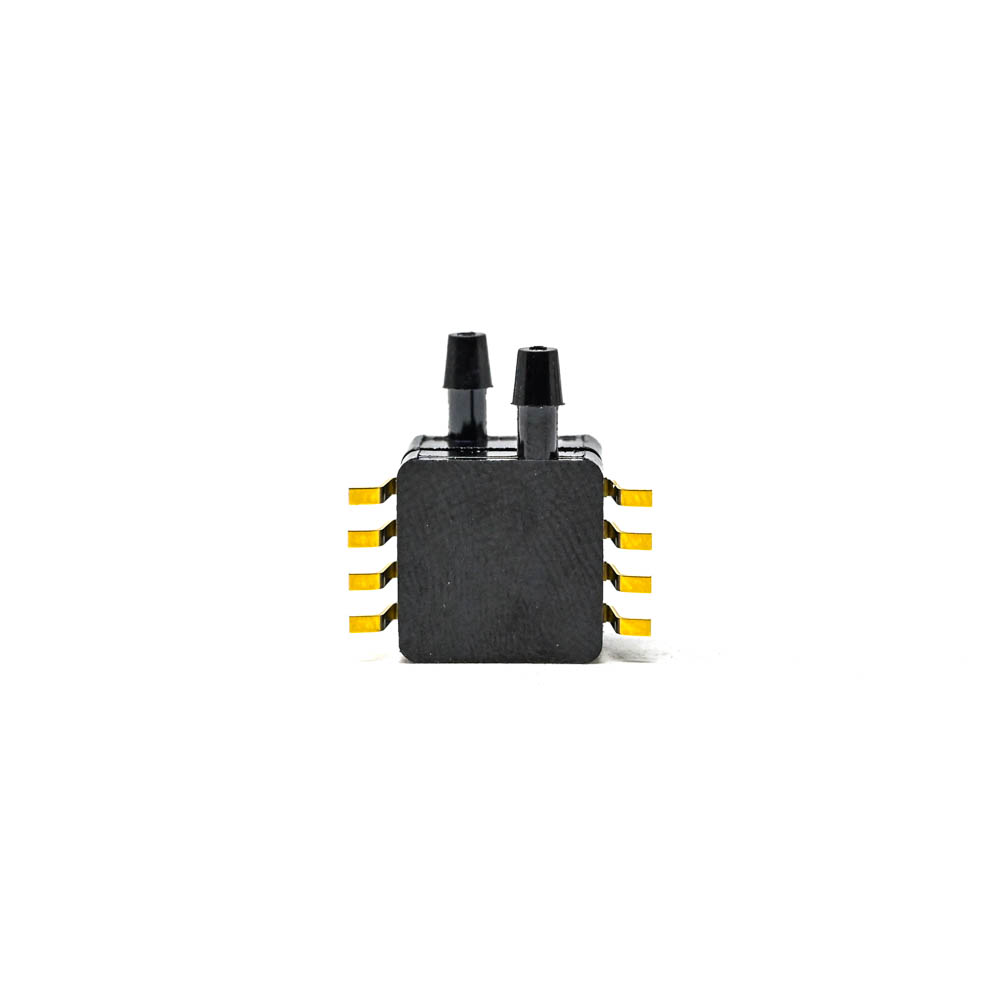

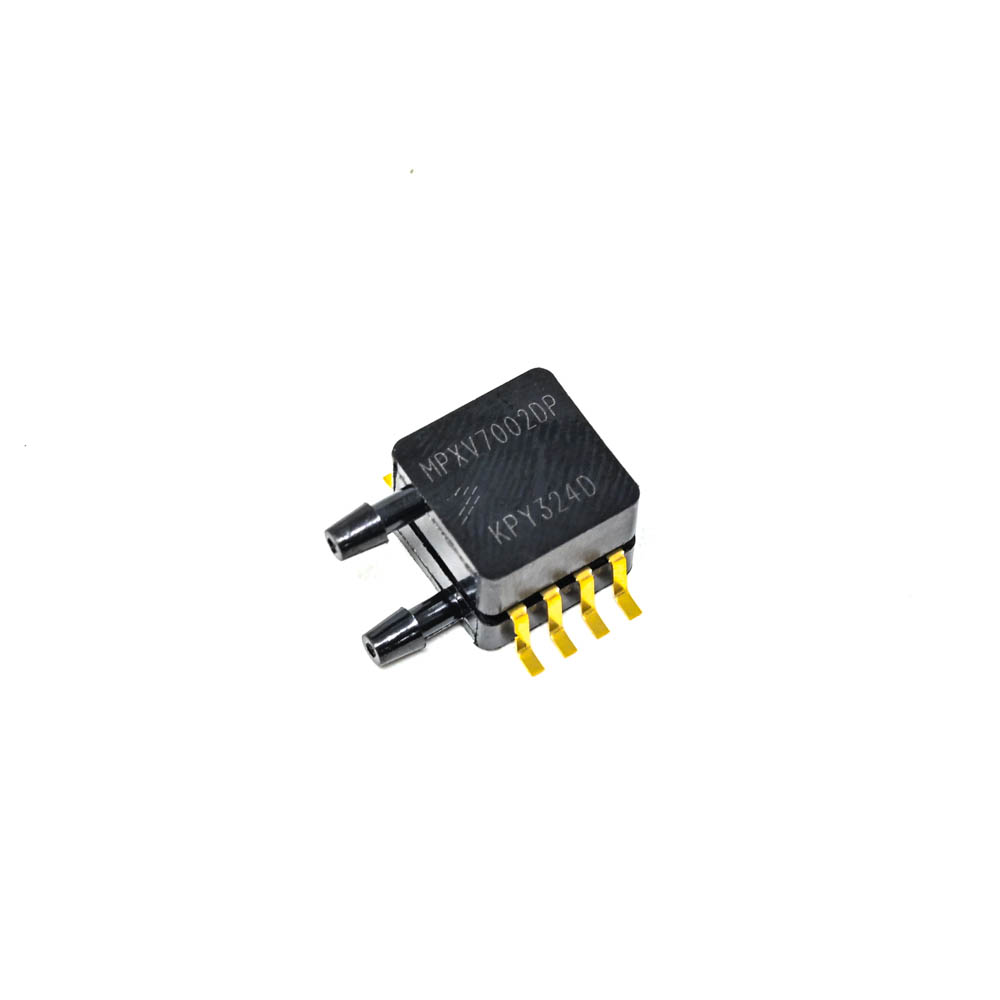

NXP Semiconductors MPXV7002DP Differential Pressure Sensor, 1 V/kPa, -2 to 2 kPa, 8-Pin SOIC
The NXP Semiconductors MPXV7002DP is a dual-port, integrated silicon differential pressure sensor in an 8-pin SOIC package, providing a calibrated analog voltage output of 1 V/kPa over a range of -2 to 2 kPa. It is designed for direct interface with microcontroller ADC inputs in 5V systems, suitable for low-pressure sensing applications.
Features
- Differential pressure sensing from -2 kPa to +2 kPa full-scale range.
- Integrated signal conditioning with temperature compensation and factory calibration.
- High-level analog voltage output with 1 V/kPa sensitivity for direct ADC interfacing.
- Fast 1 ms response time for dynamic pressure measurement applications.
- Monolithic silicon MEMS construction with patented shear stress strain gauge for stability.
Out of stock
The MPXV7002DP from NXP Semiconductors is a monolithic, piezoresistive MEMS pressure sensor featuring on-chip signal conditioning, temperature compensation, and calibration. Its advanced micromachining and thin-film metallization produce a high-accuracy analog output proportional to the applied differential pressure across its two ports. The device is specifically engineered for systems employing microcontrollers or microprocessors with analog-to-digital converter inputs, operating from a regulated 5V supply.
This sensor is characterized by its fast response and stable performance across a compensated temperature range of 10°C to 60°C. The dual-port, differential configuration makes it ideal for measuring small pressure differences in airflow, filter monitoring, or medical respiratory equipment, where precision and reliability are critical.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 10 × 7 × 3 cm |
