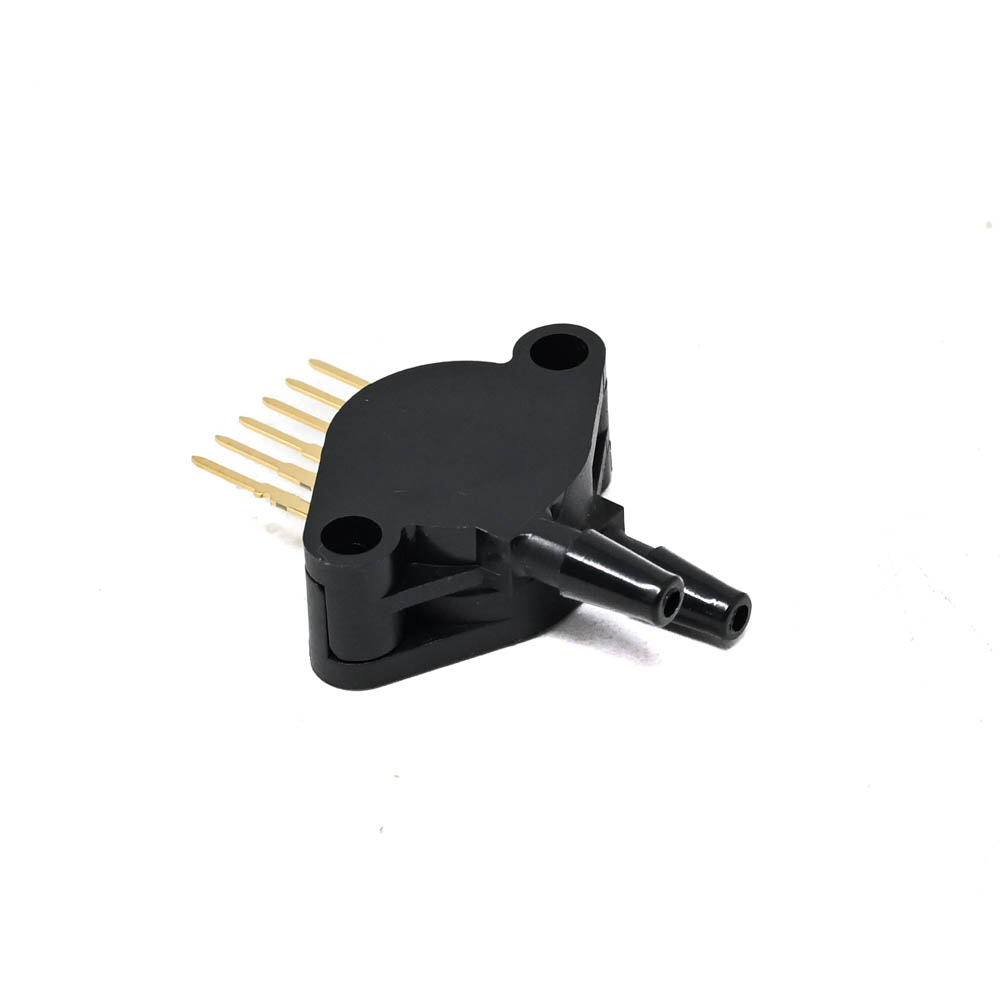

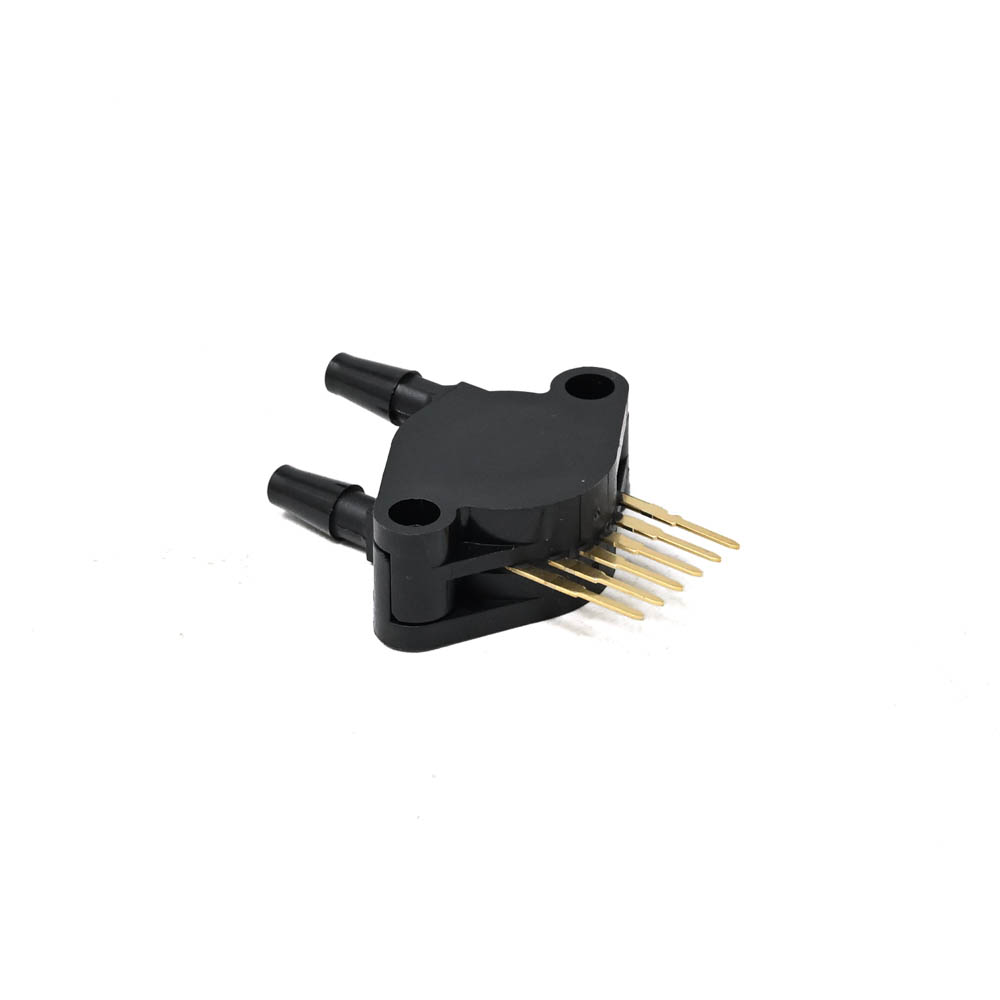

NXP Semiconductors MPX5700DP Differential Pressure Sensor, 0-700 kPa, 6.4 mV/kPa, SIP 6-Pin
The NXP Semiconductors MPX5700DP is a monolithic silicon piezoresistive differential pressure sensor with integrated signal conditioning, temperature compensation, and calibration, delivering a high-level analog output of 6.4 mV/kPa. Designed for direct interface with microcontroller ADC inputs, it operates from a 4.75V to 5.25V supply and is suitable for automotive, industrial, and HVAC applications.
Features
- Differential pressure sensing from 0 to 700 kPa with 6.4 mV/kPa analog output.
- Integrated on-chip signal conditioning, temperature compensation, and factory calibration.
- Monolithic silicon MEMS piezoresistive transducer for high accuracy and stability.
- Single Inline Package (SIP) with 6 pins for straightforward PCB mounting.
- Wide operating temperature range from -40°C to +125°C for harsh environments.
Out of stock
The MPX5700DP from NXP Semiconductors is a state-of-the-art, monolithic silicon pressure sensor utilizing a patented shear stress strain gauge design. This MEMS-based piezoresistive transducer combines advanced micromachining with thin-film metallization and bipolar processing to produce a precise, high-level analog voltage signal directly proportional to the applied differential pressure. The on-chip circuitry provides temperature compensation and calibration, ensuring stable performance across its full operating range.
Housed in a durable epoxy unibody SIP package, the sensor is engineered for reliability in demanding applications. Its output characteristics and supply voltage range make it ideally suited for integration into microprocessor or microcontroller-based systems requiring analog-to-digital conversion for pressure monitoring and control.
Additional Information
| Weight | 0.008 kg |
|---|
