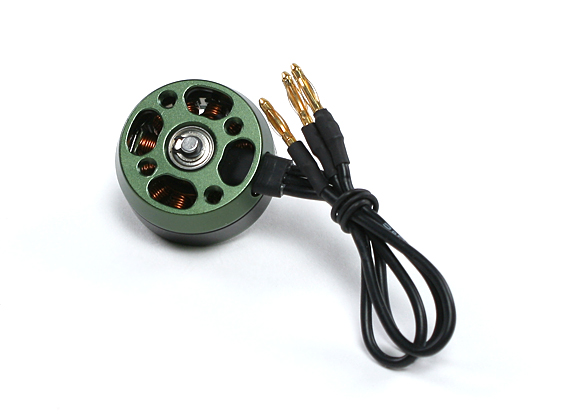

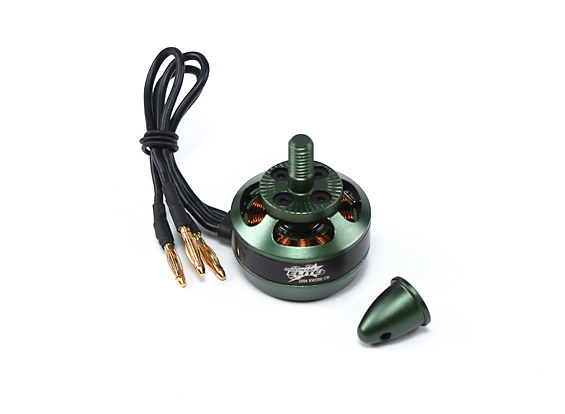

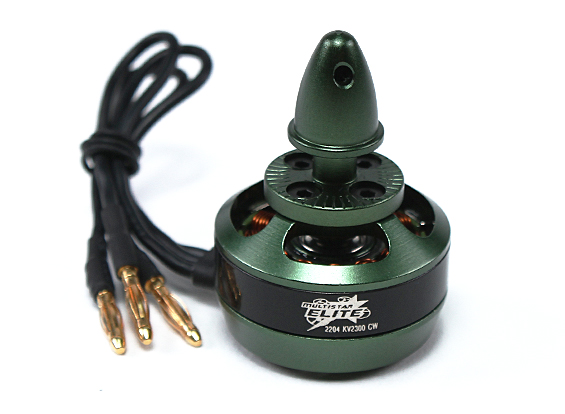

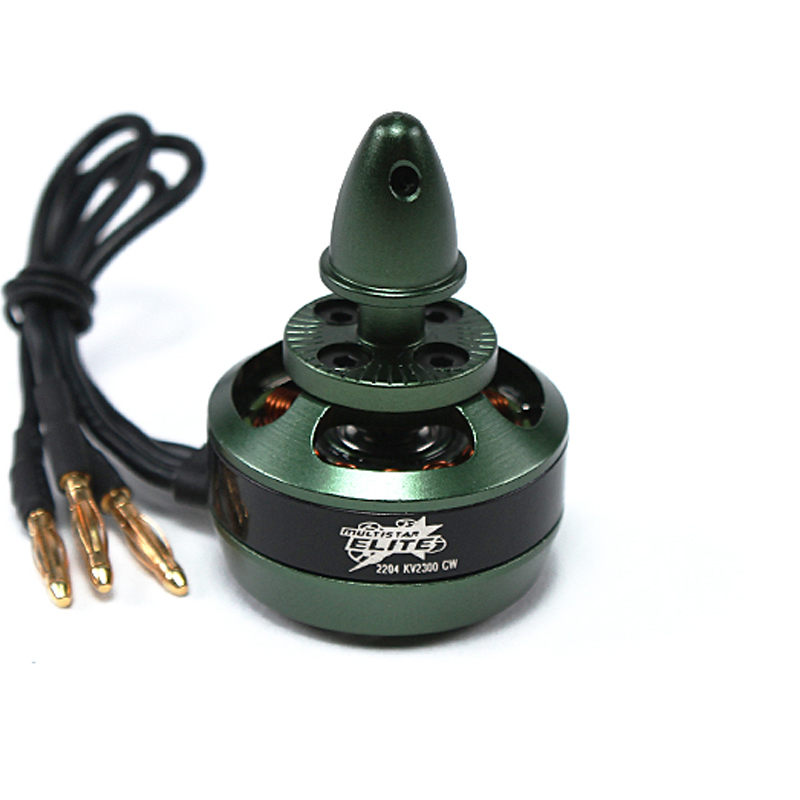

Multistar Elite 2204-2300KV Multi-Rotor Motor - CW
The Multistar Elite 2204-2300KV brushless motor is engineered for high-performance 5-inch FPV racing and freestyle drones, optimized for 3S to 4S LiPo power systems. Its precision-balanced design delivers responsive thrust and smooth operation for tight-frame builds.
Features
- 2204 stator size with 2300KV rating for high-RPM 5-inch propeller setups.
- Optimized for 3S to 4S LiPo batteries, handling up to 25A current and 350W peak power.
- Features high-quality Japanese bearings and N45SH magnets for durability and smooth operation.
- Precision balanced to within 0.005g for minimal vibration and enhanced flight performance.

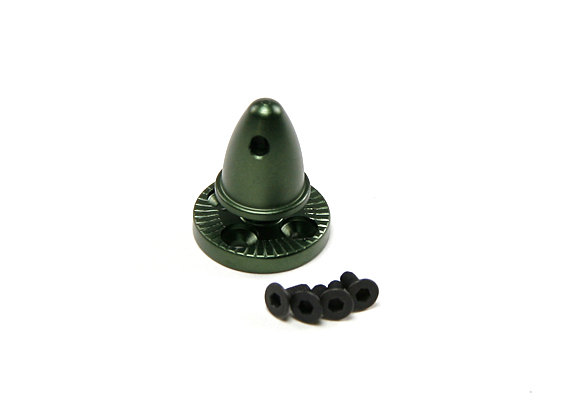

- Includes removable 3mm knurled prop shaft and mounting hardware for easy maintenance.
Out of stock
The Multistar Elite 2204-2300KV motor represents a focused design for mini multirotor applications, specifically 5-inch FPV racing and freestyle drones. Its compact 2204 stator dimensions and 2300KV rating are tuned to deliver optimal thrust efficiency with standard 5-inch propellers on 3S and 4S battery systems, providing the rapid throttle response demanded in competitive and acrobatic flying.
Constructed with premium components, including 0.2mm laminations, oxygen-free copper windings, and high-strength N45SH magnets, the motor is built for thermal resilience and long-term reliability. The chamfered lower frame facilitates installation in tightly spaced frames, while the replaceable prop shaft simplifies post-crash repairs, minimizing downtime.
Additional Information
| Weight | 0.024 kg |
|---|---|
| Dimensions | 2.7 × 2.7 cm |
