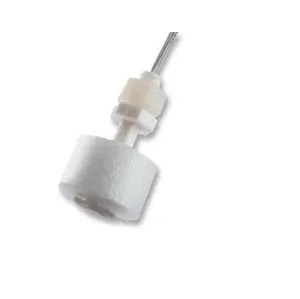

Multicomp Pro MCPLS Series Float Switch, Vertical Miniature, SPST-NO, Polypropylene Body, 130V AC, M8x1.25 Thread, Flying Lead
The Multicomp Pro MCPLS Series is a vertical miniature float switch designed for liquid level detection and pump control in tanks and reservoirs. Featuring a polypropylene body and SPST-NO (Form A) contacts rated for 130V AC, it is suitable for integration into industrial control panels, water treatment systems, and automated fluid management applications.
Features
- SPST-NO (Form A) contact configuration with ruthenium contacts for reliable switching.
- Polypropylene (PP) body ensures chemical resistance and durability in aqueous environments.
- Compact vertical design with M8 x 1.25 mounting thread for easy installation.
- 300mm flying lead terminal simplifies wiring connections to control circuits.
- Wide operating temperature range from -20°C to 80°C for versatile applications.
Out of stock
The MCPLS Series float switch operates on a buoyancy principle, where the internal float rises or falls with the liquid level, mechanically actuating a single-pole, single-throw (SPST) normally-open switch. This action provides a direct electrical signal for controlling pumps, alarms, or indicator lights. The switch features a maximum differential travel of 3.5mm, providing a defined hysteresis to prevent contact chatter during level transitions near the set point.
Constructed with a polypropylene housing and ruthenium contact points, the sensor offers reliable performance in water, mild chemicals, and other compatible liquids. Its miniature form factor, with an 18mm diameter and 29.5mm external height, allows for installation in confined spaces. The device is designed for straightforward integration into 130V AC control circuits commonly found in industrial and commercial fluid handling systems.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 1 × 2 × 1 cm |
