MPXV7002DP Airspeed Sensor & Pitot Tube Set for APM
This MPXV7002DP differential airspeed sensor and Pitot tube set provides accurate air velocity data up to 100m/s for APM-based flight controllers, featuring temperature compensation and a 14-bit resolution. Designed for precise flight control, it includes the necessary Pitot tube and servo cable for direct integration.
Features
- Precise MPXV7002DP differential pressure sensor module
- Measures airspeed up to 100m/s (360km/h) with 0.84Pa resolution
- Features 14-bit data output, low-pass filtering, and 10-60°C temperature compensation

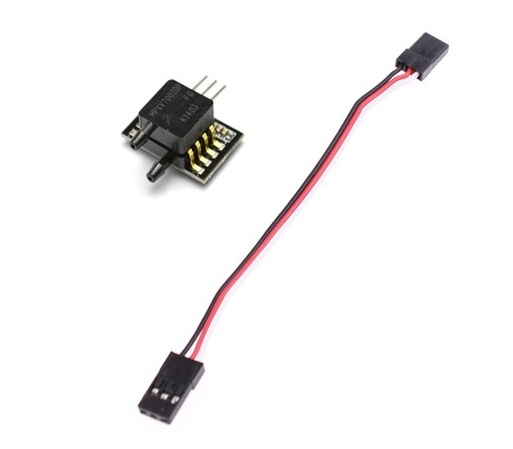

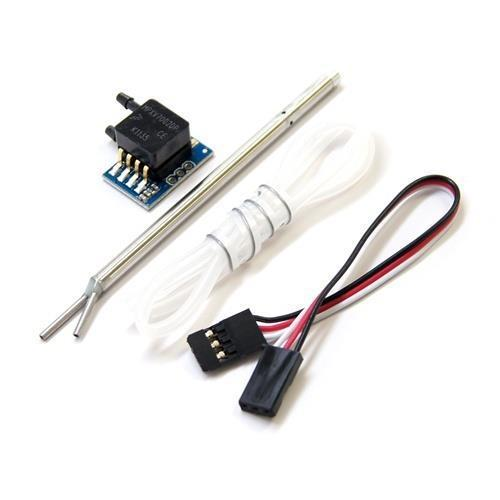

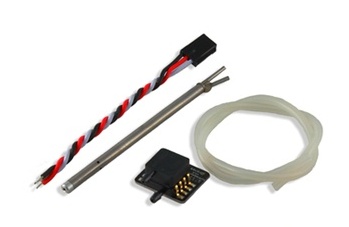

- Includes a dual-port Pitot tube and servo cable for APM integration
Out of stock
The MPXV7002DP airspeed sensor is engineered to provide reliable air velocity readings for advanced UAV platforms, particularly those utilizing the ArduPilot Mega (APM) flight control system. Unlike conventional sensors, this series incorporates an offset specifically at 2.5V, enabling the measurement of both positive pressure and vacuum up to 7kPa through each port. This unique design ensures accurate differential pressure sensing critical for calculating true airspeed.
Integrated with a Pitot tube, the system distinguishes between dynamic and static air pressure. The upper tube captures dynamic pressure from the forward-facing opening, while the bottom tube measures static pressure from the side ports. This differential measurement is then translated into precise airspeed data, which is crucial for autonomous flight modes, stable navigation, and optimized flight efficiency across various multi-rotor and fixed-wing aircraft configurations.
Additional Information
| Dimensions | 8 × 6 × 2 cm |
|---|
