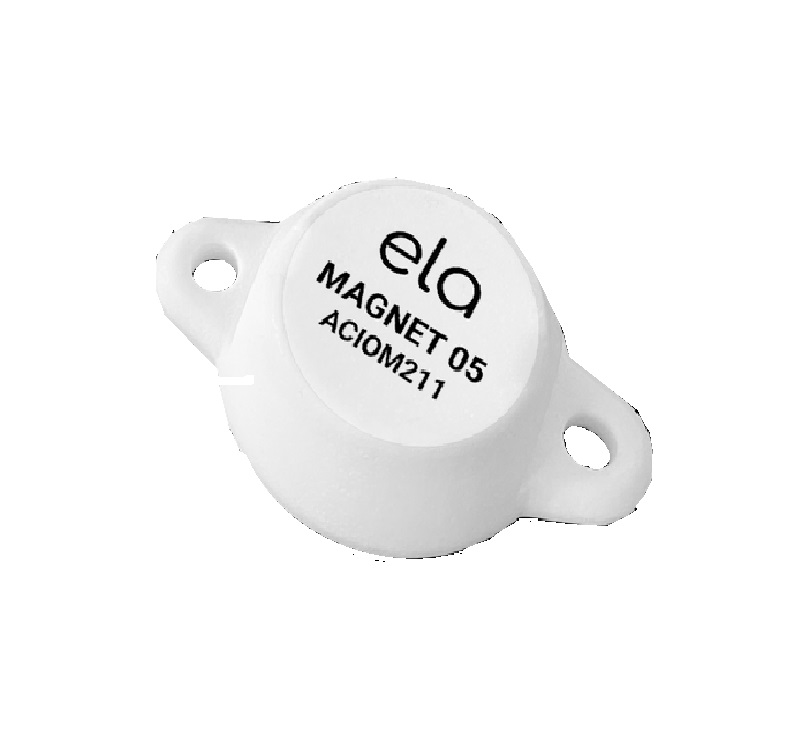

ELA Innovation MAGNET 05 (ACIOM211) Permanent Magnet - White Delrin Housing, 11mm Range

Name: ELA Innovation MAGNET 05 (ACIOM211) Permanent Magnet - White Delrin Housing, 11mm Range
Brand: ELA Innovation
SKU: SENS-3415
Price: 1099.00 INR
Availability: OutOfStock

₹1,099.00 (Inclusive of all taxes)

Out of Stock

The ELA Innovation MAGNET 05 (ACIOM211) is a permanent magnet accessory designed for precise magnetic sensor activation in wireless systems like Active RFID, Bluetooth, and LoRa. Its white Delrin housing and integrated mounting options ensure durable and flexible installation.

Features

Permanent magnet designed for magnetic sensor activation with an 11mm sensing range.
Constructed with durable white Delrin housing for long-term environmental protection.
Features a high-strength adhesive face and two Ø5.2mm mounting holes for versatile, secure attachment.
Compact dimensions of 53mm diameter x 11.5mm height for easy integration into sensor assemblies.
Optimized for use with Active RFID, Bluetooth, and LoRa wireless sensor systems.

Out of stock

Get Notified When Available

Description

The ELA Innovation MAGNET 05, part number ACIOM211, is a specialized permanent magnet engineered as a reliable trigger source for magnetic reed switches or Hall-effect sensors within wireless monitoring networks. Its core function is to provide a consistent, localized magnetic field to actuate sensor circuits in systems like Active RFID tags, Bluetooth beacons, and LoRa-based asset trackers.

Housed in white Delrin, a robust engineering plastic, the magnet offers excellent resistance to moisture, chemicals, and impact, ensuring reliable performance in industrial environments from -40°C to +85°C. The combination of a powerful adhesive backing and two precision mounting holes (Ø5.2mm) provides installers with multiple secure attachment options, accommodating both permanent and serviceable mounting scenarios.

Key Features

Permanent Magnet Core: Provides a stable, non-powered magnetic field for reliable sensor actuation.
Durable Delrin Housing: White acetal resin construction offers high mechanical strength, low friction, and resistance to most chemicals and solvents.
Dual Mounting System: Integrates a high-tack adhesive face for quick bonding and two through-holes for mechanical fastening, ensuring a secure fit.
Optimized Magnetic Range: Engineered for an effective 11mm sensing distance, ideal for proximity detection in compact wireless devices.
Wide Operating Temperature: Rated from -40°C to +85°C for dependable operation in harsh indoor and outdoor environments.
Compact Form Factor: 53mm diameter and 11.5mm height profile allows for discreet integration into sensor enclosures and housings.

Applications

Wireless Asset Tracking: Serves as the magnetic trigger for reed switches in battery-powered Active RFID or LoRaWAN asset tags for door/window monitoring.
Bluetooth Beacon Activation: Used in proximity marketing or indoor navigation systems where a magnet actuates a Bluetooth Low Energy (BLE) sensor module upon door opening.
Industrial Machine Guarding: Provides a non-contact method to confirm the closed position of safety doors or access panels on machinery via integrated magnetic sensors.
IoT Sensor Node Deployment: Acts as a reliable, passive activation source for magnetic sensors in remote, battery-constrained Internet of Things (IoT) monitoring nodes.

Technical Specifications

Manufacturer Part Number (MPN)	ACIOM211
Product Type	Permanent Magnet (Sensor Accessory)
Sensing/Actuation Range	11 mm
Housing Material	White Delrin (Acetal Resin)
Mounting Features	High-Strength Adhesive Face, 2x Mounting Holes (Ø5.2mm)
Dimensions (Diameter x Height)	53 mm x 11.5 mm
Operating Temperature Range	-40°C to +85°C
Primary Applications	Active RFID, Bluetooth Beacons, LoRa Magnetic Sensor Systems

Frequently Asked Questions

What is the primary function of the ELA Innovation MAGNET 05?

The ELA Innovation MAGNET 05 is a permanent magnet accessory designed to actuate magnetic reed switches or Hall-effect sensors. It provides a consistent, non-powered magnetic field to trigger sensor circuits in wireless systems like Active RFID tags, Bluetooth beacons, and LoRa-based monitoring devices, enabling proximity or state detection.

How do I install the MAGNET 05?

Installation is versatile. You can use the integrated high-strength adhesive backing for a permanent bond to clean, flat surfaces. For a more secure or serviceable mount, utilize the two Ø5.2mm mounting holes with appropriate screws or fasteners. Ensure the magnet is positioned within its 11mm effective range relative to the paired magnetic sensor.

What are the environmental specifications for this magnet?

The magnet is housed in durable white Delrin, offering good chemical resistance. It is rated for continuous operation across a wide temperature range of -40°C to +85°C, making it suitable for both indoor and demanding outdoor industrial environments. The magnet itself is not affected by humidity or typical atmospheric conditions.

Can this magnet be used with any magnetic sensor?

It is optimized for systems designed with a specific magnetic sensitivity threshold, commonly found in Active RFID, Bluetooth, and LoRa sensor modules. For reliable operation, you must verify that your sensor's actuation (pull-in) distance is compatible with the magnet's 11mm effective range and that the magnetic polarity alignment is correct for your sensor type (e.g., reed switch vs. Hall-effect).
