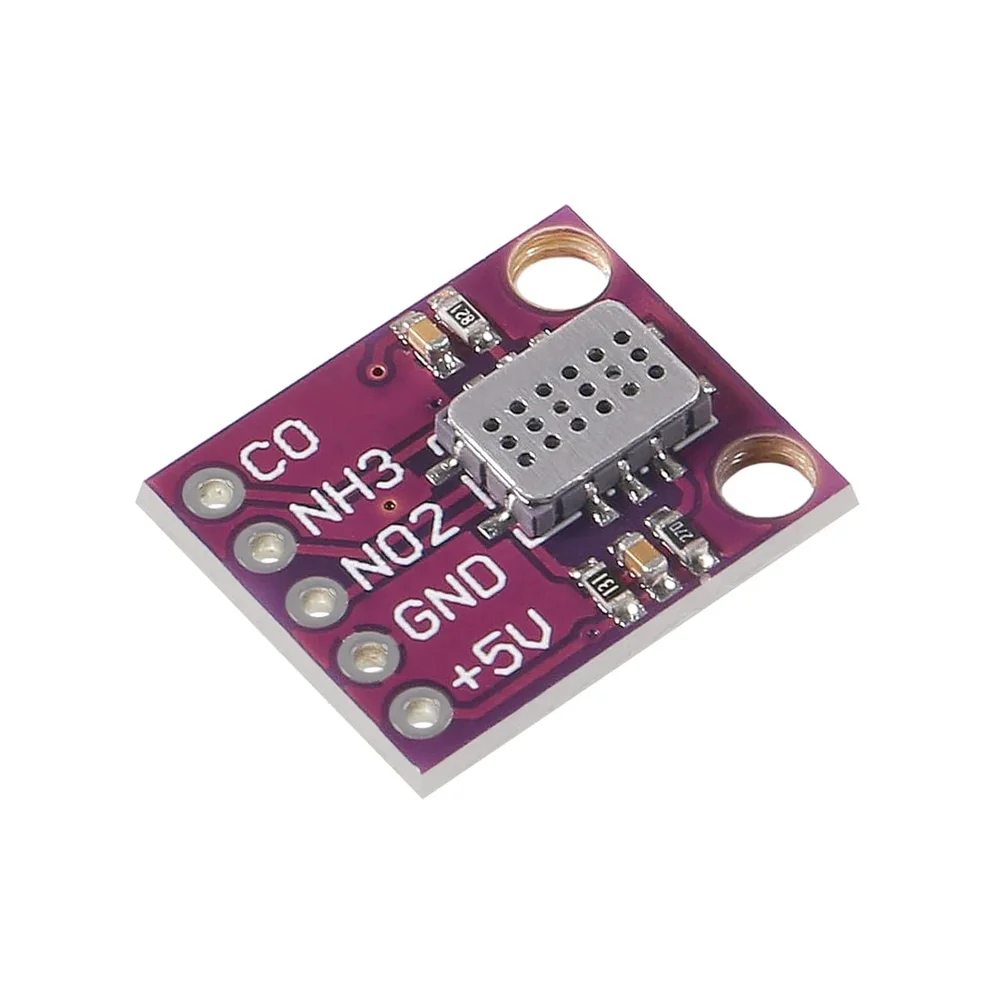

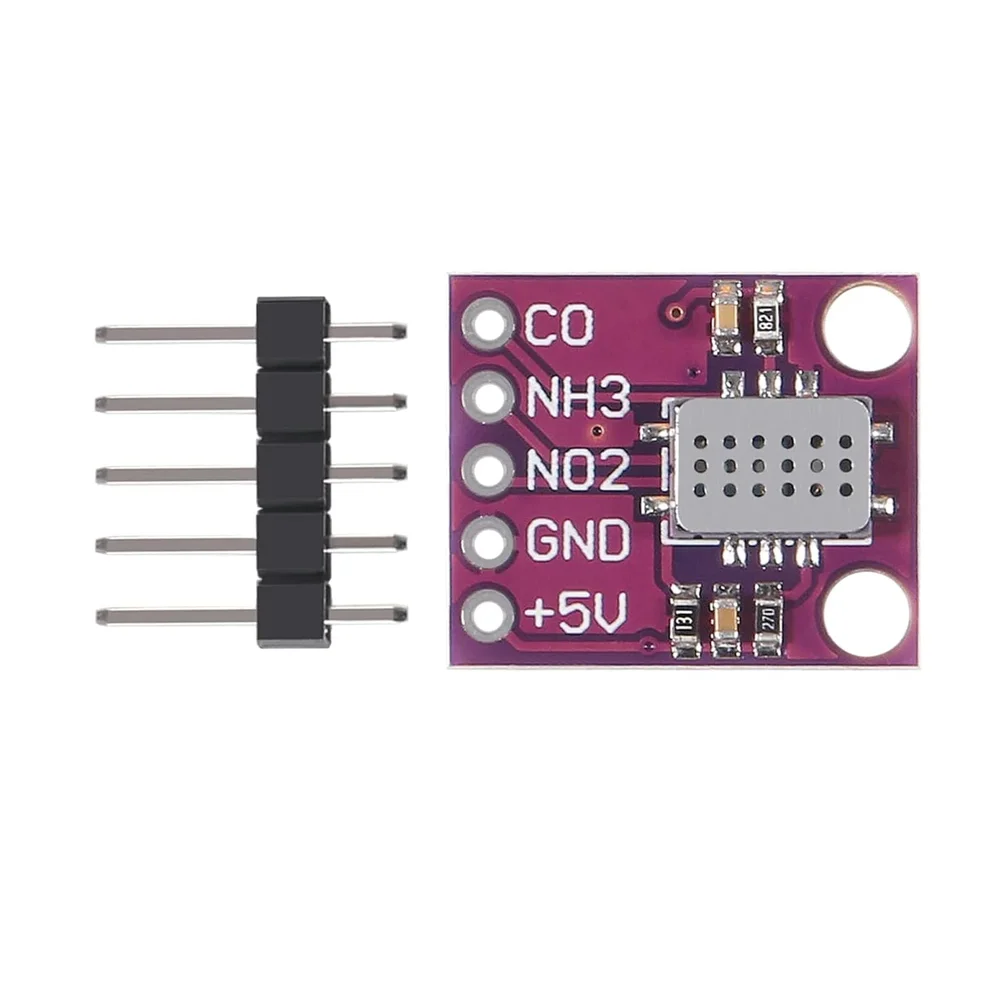

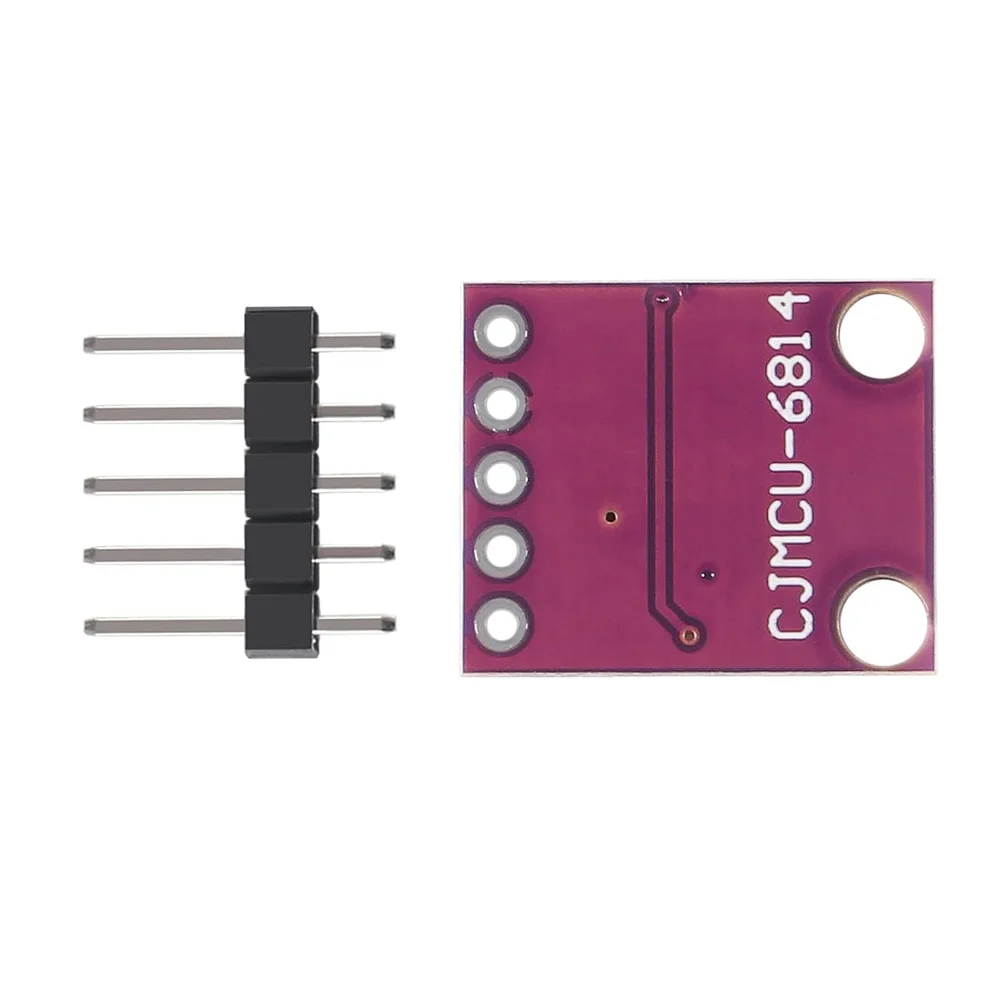

MICS-6814 Gas Sensor Module - VOC, NO2, NH3 Detection

The MICS-6814 requires a tightly regulated DC power supply between 4.9V and 5.1V. This precise voltage range is critical for the integrated heating resistor to maintain the correct operating temperature of the metal-oxide sensing elements, ensuring accurate and stable gas detection readings.

The module provides analog output signals. Each of the three gas sensing elements presents a variable resistance. You must connect each element's output pin to an analog-to-digital converter (ADC) input on a microcontroller (like an Arduino). The resistance changes correspond to gas concentration, which your code can then calculate using a calibration curve or lookup table.

Yes, for quantitative measurements, the MICS-6814 requires calibration. The analog output is a resistance value that correlates to gas concentration. Initial calibration involves exposing the sensor to known concentrations of target gases (VOC, NO₂, NH₃) in a controlled environment to establish a baseline and create a response curve. Pre-calibrated values are not provided.

The embedded heating resistor maintains the metal-oxide sensing film at a high, constant temperature (typically several hundred degrees Celsius). This is essential for the chemical reactions that enable gas detection, ensures a stable baseline resistance, improves sensor response time, and helps burn off contaminants to refresh the sensing surface.

Yes, the MICS-6814 is designed with a wide operating temperature (-30°C to +85°C) and humidity tolerance (up to 95% RH), making it suitable for outdoor environmental monitoring stations. However, for prolonged outdoor use, it should be housed in a protective enclosure that shields it from direct rain, condensation, and physical debris while allowing air circulation for gas sampling.
