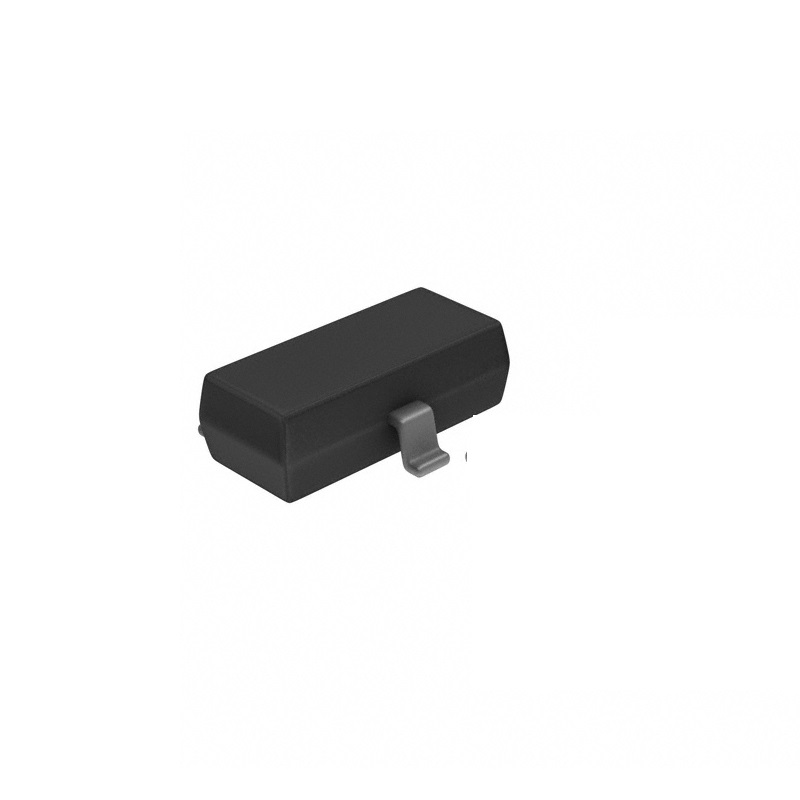

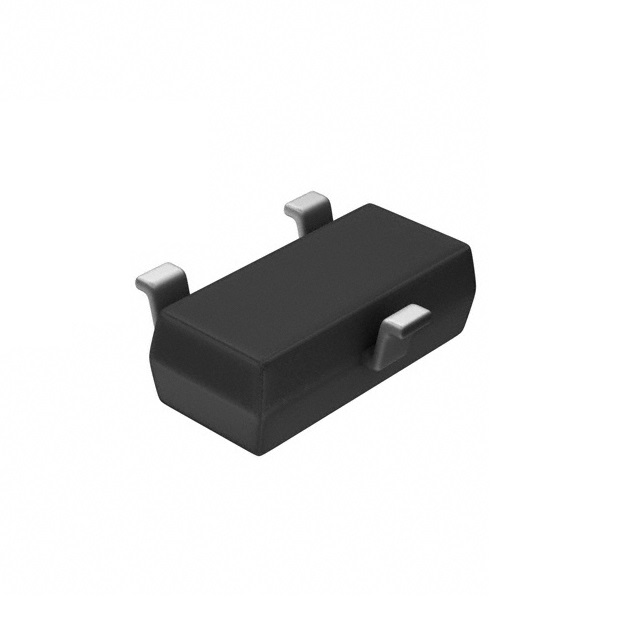

Microchip Technology Technology MCP9701AT-E/TT SOT-23 Temperature Sensor IC
The Microchip Technology MCP9701AT-E/TT is a linear active thermistor integrated circuit in a SOT-23 package, providing an analog voltage output directly proportional to temperature. It is designed for easy integration with 3.3V or 5V microcontroller ADCs (Arduino, Raspberry Pi, ESP32) and industrial control systems for precise environmental monitoring.
Features
- Linear Active Thermistor IC with analog voltage output (10 mV/°C).
- Wide operating voltage range from 3.1V to 5.5V for flexible system design.
- Extended temperature sensing range from -40°C to +125°C.
- Low quiescent current consumption for power-sensitive applications.
- Compact SOT-23 surface-mount package for space-constrained PCB designs.
Out of stock
The MCP9701AT-E/TT is a precision analog temperature sensor IC utilizing a linear active thermistor sensing principle. It outputs a voltage signal that scales linearly with temperature (typically 10 mV/°C with a 500 mV offset at 0°C), requiring only a single ADC channel on a host microcontroller for digitization. This design eliminates the need for external signal conditioning circuits.
Engineered for stability and reliability, the sensor operates across a broad industrial temperature range from -40°C to +125°C. Its low power consumption and fast thermal response time make it suitable for battery-powered devices, embedded systems, and thermal management control loops in consumer electronics, automotive modules, and HVAC systems.
Additional Information
| Weight | 0.01 kg |
|---|
