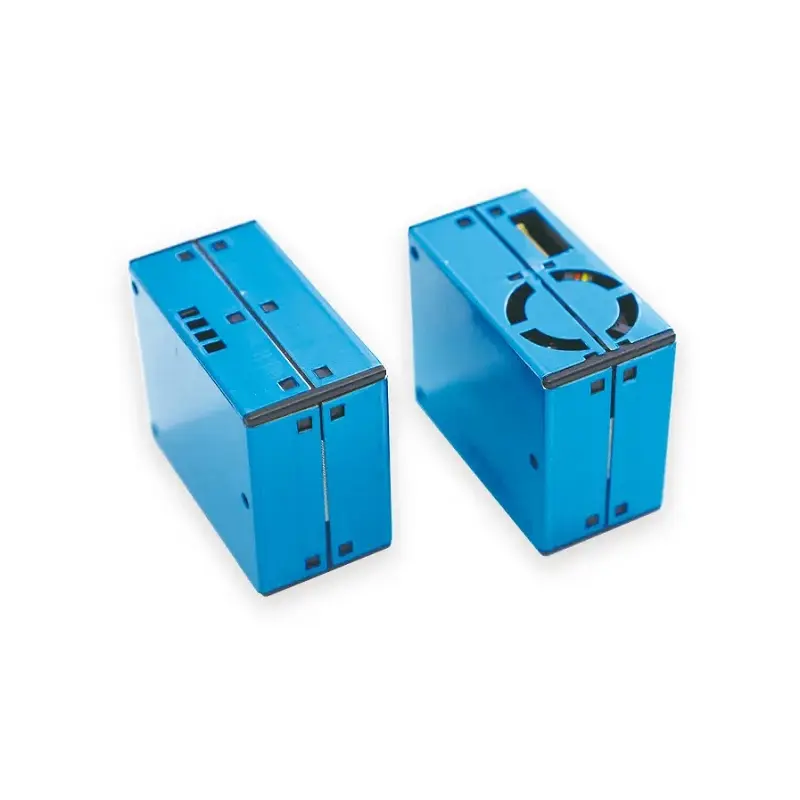

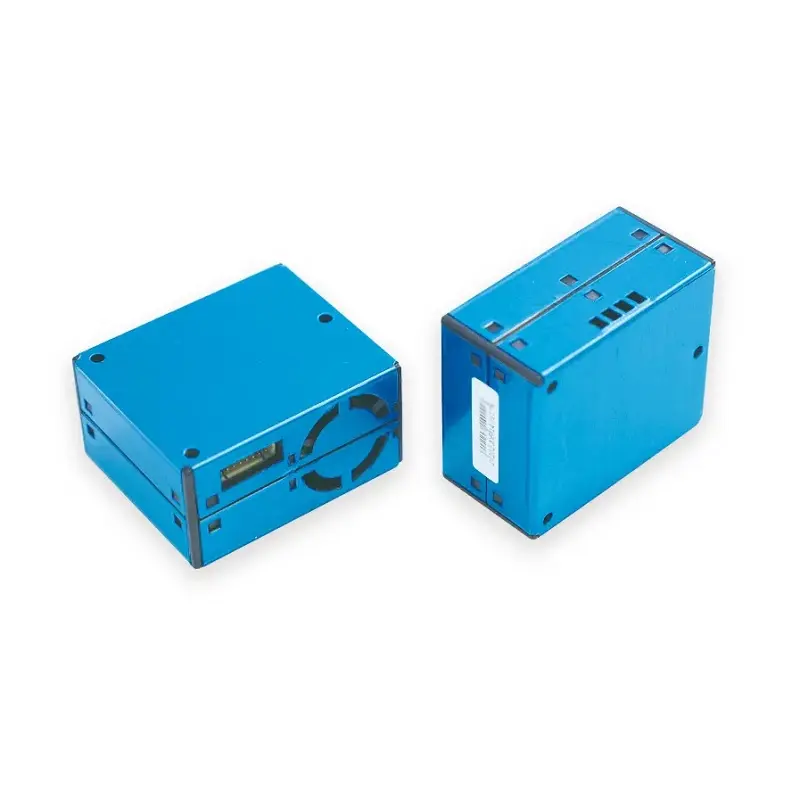

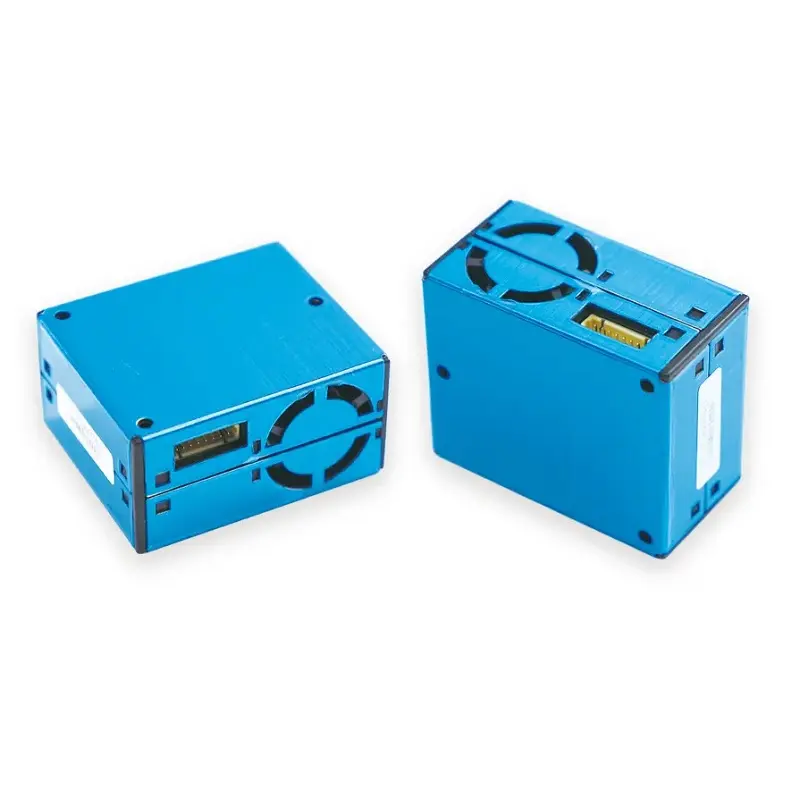

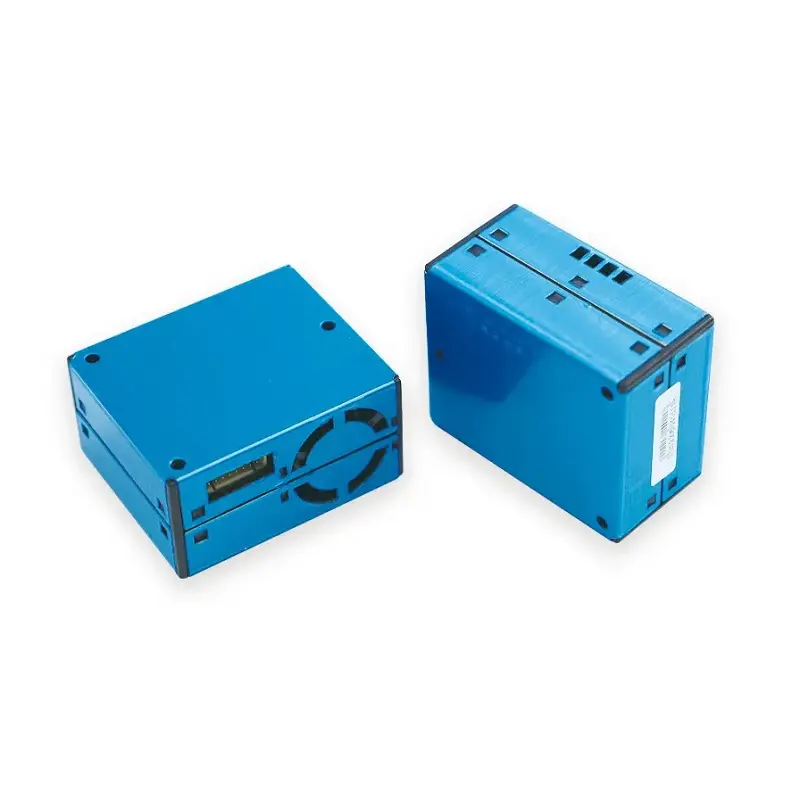

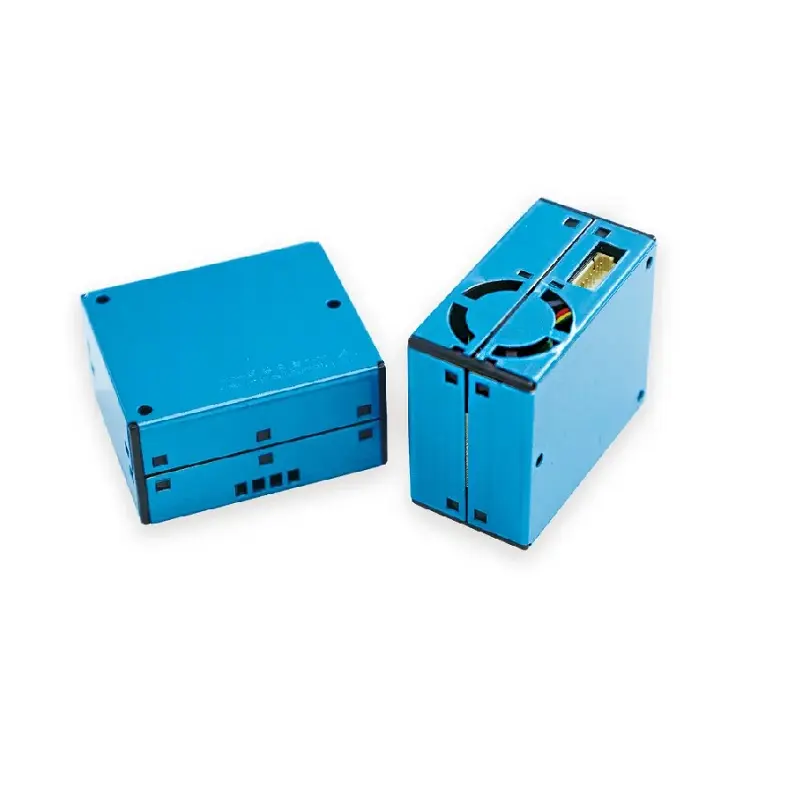

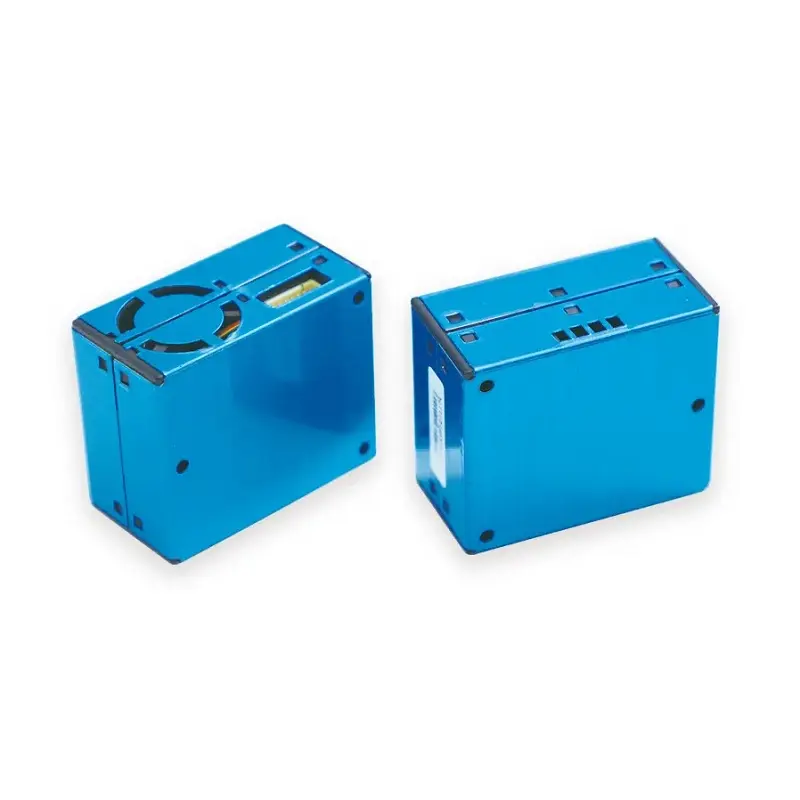

MemsFrontier MPM14-CS Laser PM Sensor (Opposite Side Air Inlet/Outlet, 8-Pin)
The MemsFrontier MPM14-CS is a laser-based particulate matter sensor with an 8-pin interface, designed for precise monitoring of PM1.0, PM2.5, and PM10 concentrations via UART, I2C, or PWM output, making it suitable for integration into air quality monitoring systems, industrial controls, and environmental research platforms.
Features
- Laser-based detection for PM1.0, PM2.5, and PM10 particles (0.3–10 µm diameter).
- Multi-interface output: configurable for UART, I2C, or PWM communication.
- High accuracy: ±15 µg/m³ or ±15% reading under standard conditions.
- Fast response time with power-on settling under 10 seconds.
- Compact, robust design with opposite-side air inlet/outlet for versatile mounting.
Out of stock
The MPM14-CS Laser PM Sensor utilizes a laser scattering principle to detect and quantify airborne particulate matter. Its optical design, with air inlet and outlet on opposite sides, promotes consistent airflow and reduces measurement interference, ensuring stable and accurate readings across a wide concentration range. The sensor outputs real-time data via a selectable digital interface (UART, I2C, or PWM), enabling seamless integration with microcontrollers, single-board computers, and industrial data acquisition systems.
Engineered for reliability in diverse environments, the sensor operates across an industrial temperature range of -10°C to +60°C and up to 99% relative humidity (non-condensing). Its low standby current and efficient power management make it suitable for continuous monitoring applications in environmental sensing, HVAC system control, and industrial process monitoring, providing critical data for air quality assessment and pollution mitigation strategies.
Additional Information
| Weight | 0.033 kg |
|---|---|

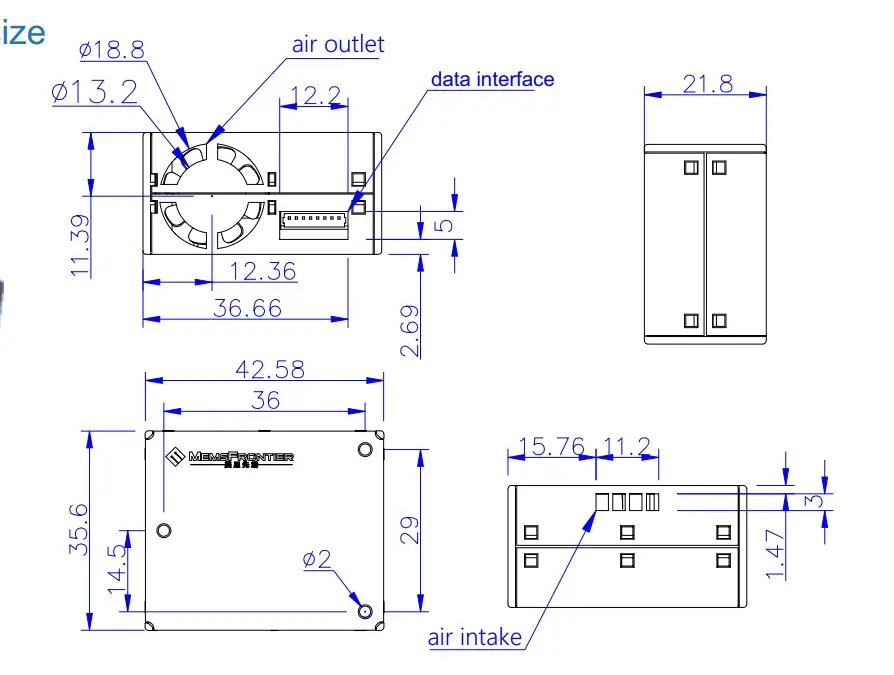

| Dimensions | 4.258 × 3.56 × 2.18 cm |
