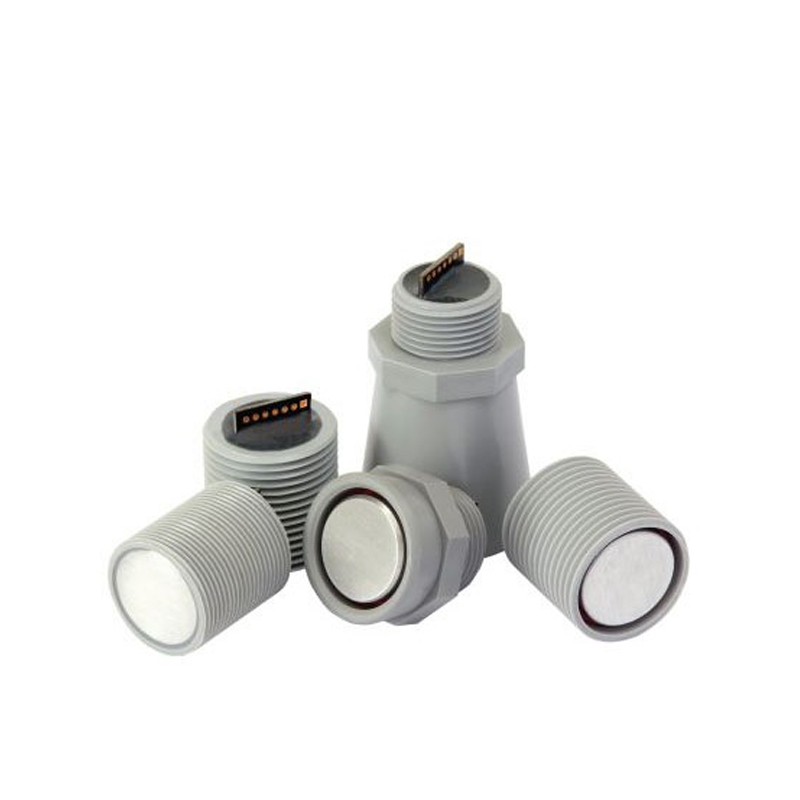

MaxBotix MB7580 SCXL-MaxSonar-WRT Ultrasonic Sensor - IP67 Weather Resistant

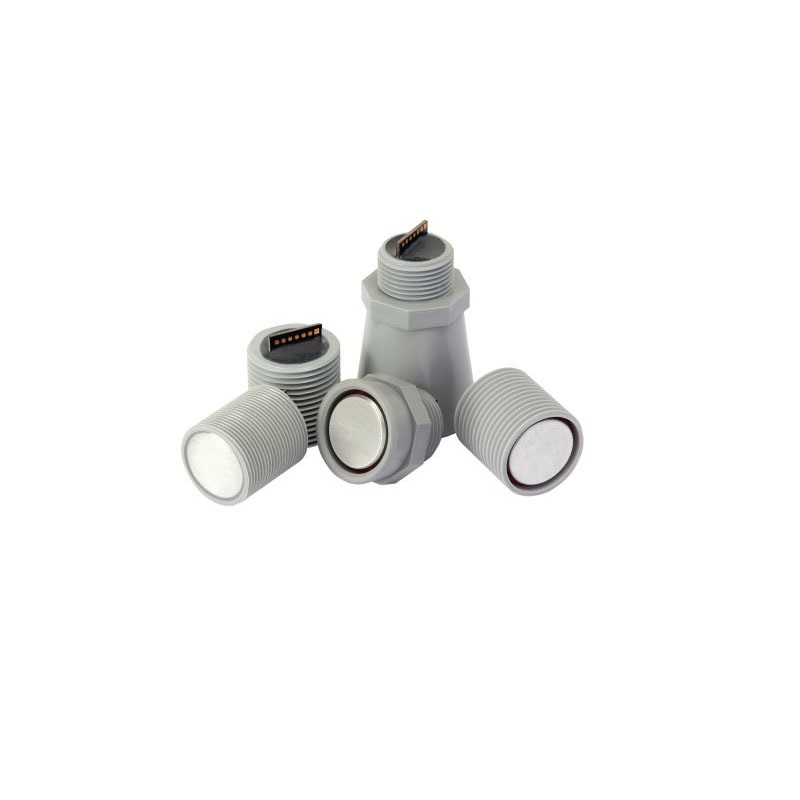

MaxBotix MB7580 SCXL-MaxSonar-WRT Ultrasonic Sensor - IP67 Weather Resistant - Image 2
SKU: SENS-4088
📋 GST Invoice Available

MaxBotix MB7580 SCXL-MaxSonar-WRT Ultrasonic Sensor - IP67 Weather Resistant

₹11,775.00 (Inclusive of all taxes)
Out of Stock

The MaxBotix MB7580 SCXL-MaxSonar-WRT is a high-performance, IP67 weather-resistant ultrasonic distance sensor offering pulse-width, analog voltage, and TTL serial outputs. Operating from 2.7-5.5V, it provides reliable object detection from 30 cm to 5 meters, making it ideal for robotics, industrial automation, and outdoor environmental monitoring systems.

Features

  • IP67 weather-resistant housing for reliable operation in high-moisture and outdoor environments.
  • Multi-interface output: Pulse-width, analog voltage, and TTL serial for flexible system integration.
  • Real-time automatic calibration for voltage, humidity, and ambient noise to maintain accuracy.
  • Wide detection range from 30 cm to 5 meters with 1 cm resolution.
  • Firmware filtering provides excellent noise tolerance and clutter rejection for stable readings.

Out of stock

Description

The MB7580 SCXL-MaxSonar-WRT ultrasonic sensor utilizes advanced acoustic ranging technology to deliver precise distance measurements. Its robust firmware includes real-time calibration algorithms that compensate for environmental variables such as supply voltage fluctuations, humidity changes, and ambient acoustic noise, ensuring consistent performance from -40°C to +65°C.

Designed for challenging conditions, the sensor’s IP67-rated enclosure protects against dust ingress and temporary water immersion. The integrated signal processing provides clutter rejection, minimizing false triggers from electrical noise or acoustic interference, making it suitable for integration into automated guided vehicles (AGVs), bin level monitoring, and perimeter security systems.

Key Features

  • IP67-rated weather-resistant construction for durable operation in demanding environments.
  • Triple-output interface (Pulse-width, Analog Voltage, TTL Serial) offers maximum compatibility with microcontrollers, PLCs, and data acquisition systems.
  • Advanced real-time calibration adjusts for voltage, humidity, and ambient acoustic noise.
  • Onboard firmware filtering ensures high noise immunity and reliable target discrimination.
  • Wide operating voltage range (2.7V to 5.5V) supports both 3.3V and 5V logic systems.
  • Extended operational temperature range from -40°C to +65°C for industrial and outdoor applications.
  • Low power consumption with an average current draw of 48 mA during operation.

Applications

  • Robotics navigation and obstacle avoidance for AGVs and mobile platforms.
  • Industrial tank and silo level monitoring in outdoor or humid conditions.
  • Perimeter intrusion detection and security system sensing.
  • Parking guidance and vehicle detection systems.
  • Outdoor environmental monitoring and weather station integration.

Technical Specifications

Manufacturer Part NumberMB7580-100
SeriesMB75 Series
Operating Voltage2.7 VDC to 5.5 VDC
Detection Range30 cm to 500 cm (0.3 m to 5 m)
Resolution1 cm
Read Rate0.59 Hz
Average Current Consumption48 mA
Output InterfacesPulse-width, Analog Voltage, TTL Serial
IP RatingIP67 (Weather Resistant)
Operating Temperature-40°C to +65°C

Frequently Asked Questions

What are the different output options on the MB7580 sensor and how do I use them?

The MB7580 provides three independent output formats: a pulse-width pin, an analog voltage pin, and a TTL serial (UART) pin. The pulse-width output provides a variable-width signal proportional to distance. The analog voltage output provides a voltage that scales with distance (typically 6.4 mV/cm). The serial output transmits ASCII character strings via a standard TTL interface, making it easy to read with an Arduino, Raspberry Pi, or other microcontroller.

What does the IP67 rating mean for this sensor's installation?

An IP67 rating signifies the sensor is completely protected against dust ingress (6) and can withstand temporary immersion in water up to 1 meter for 30 minutes (7). This allows for reliable deployment in outdoor environments, high-humidity areas, or applications where occasional washing or rain exposure is expected, without compromising the internal electronics.

How does the automatic calibration feature work, and what does it adjust for?

The sensor's firmware performs real-time automatic calibration for three key environmental factors: supply voltage, ambient humidity, and acoustic noise. This continuous adjustment compensates for changes that could affect the speed of sound and signal integrity, ensuring measurement accuracy is maintained without requiring manual user intervention during operation.

Can I power this sensor directly from a 5V Arduino or Raspberry Pi GPIO pin?

No, you should not power the sensor directly from a microcontroller's GPIO pin due to its average current draw of 48 mA, which exceeds the typical GPIO current limit. It must be powered from a regulated 2.7V to 5.5V supply capable of delivering at least 100 mA. Use the board's 5V or 3.3V power rail, or an external supply, connected to the sensor's V+ and GND pins.

Package Includes

  • 1 x MaxBotix MB7580-100 SCXL-MaxSonar-WRT Ultrasonic Sensor

Additional Information

Weight 0.06 kg
Dimensions 15 × 8 × 6 cm
